Système Gaudin, Replica of the First Camera for Short Exposure T

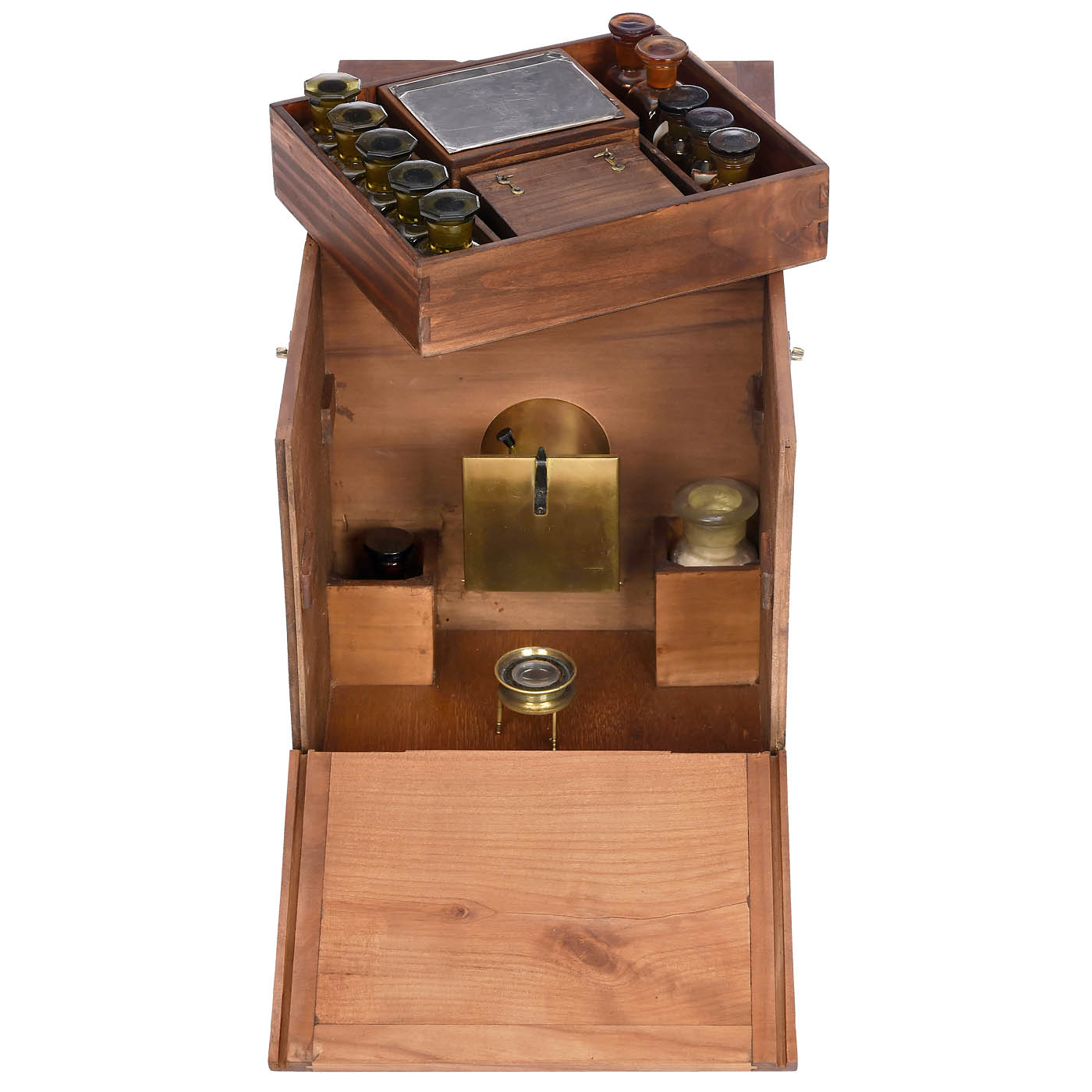

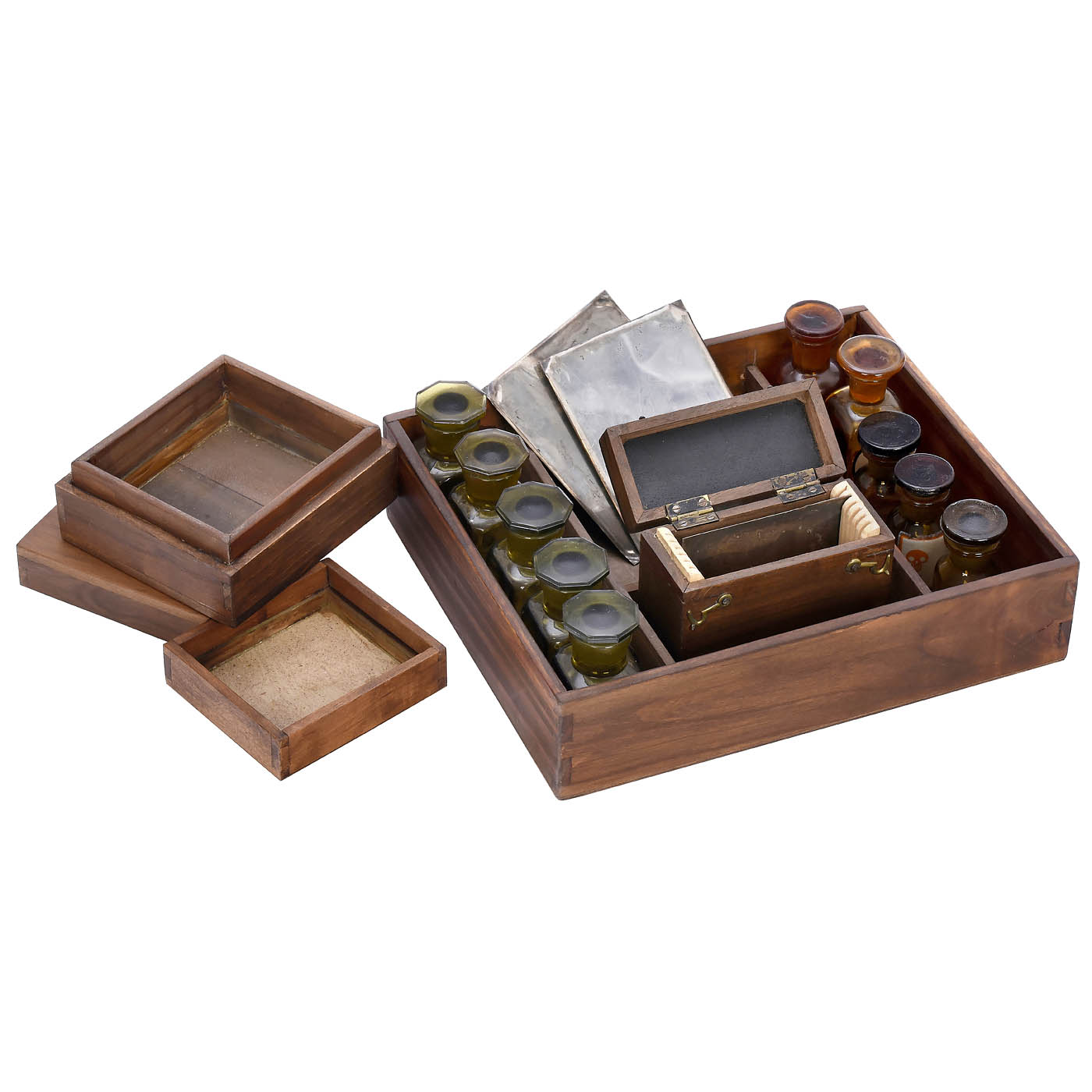

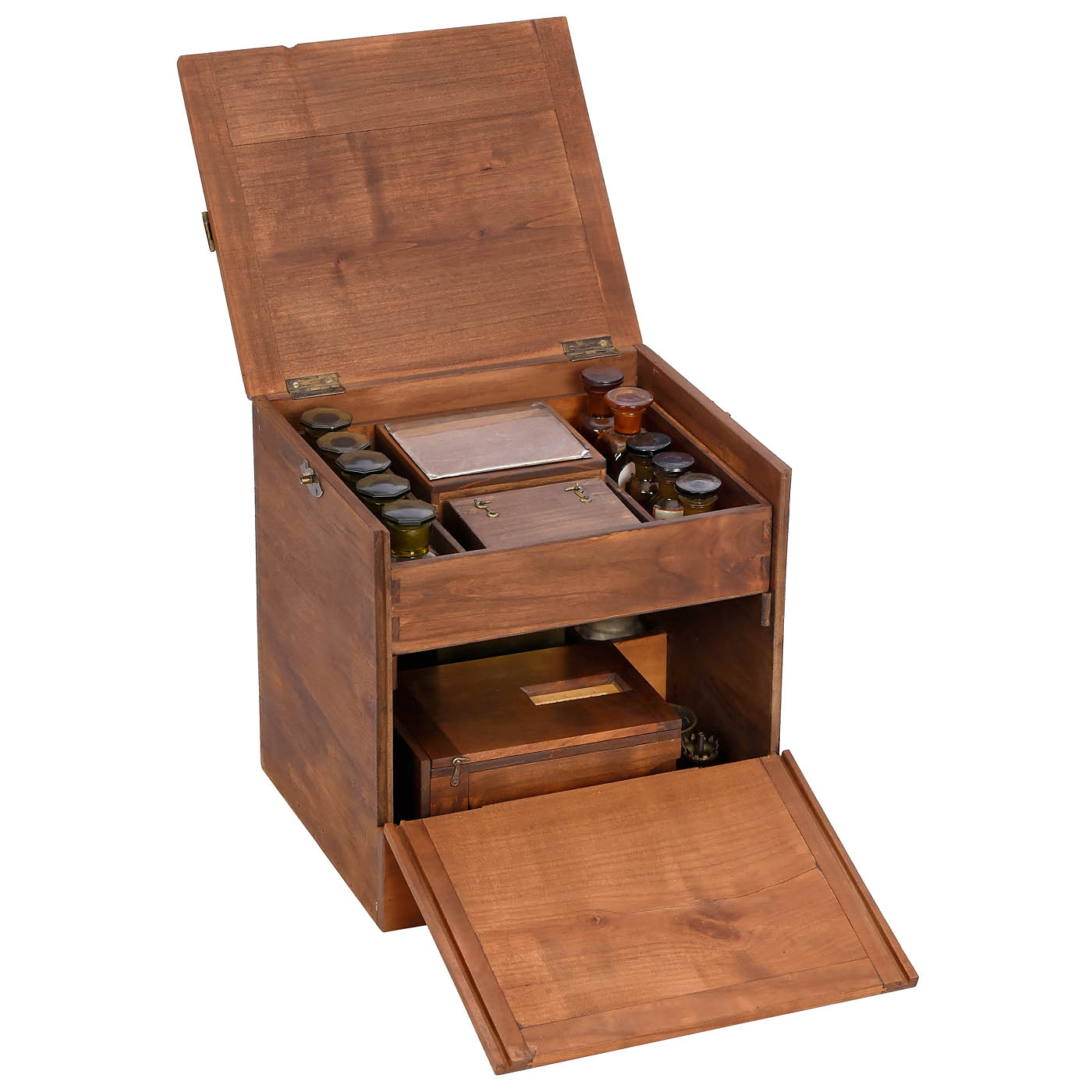

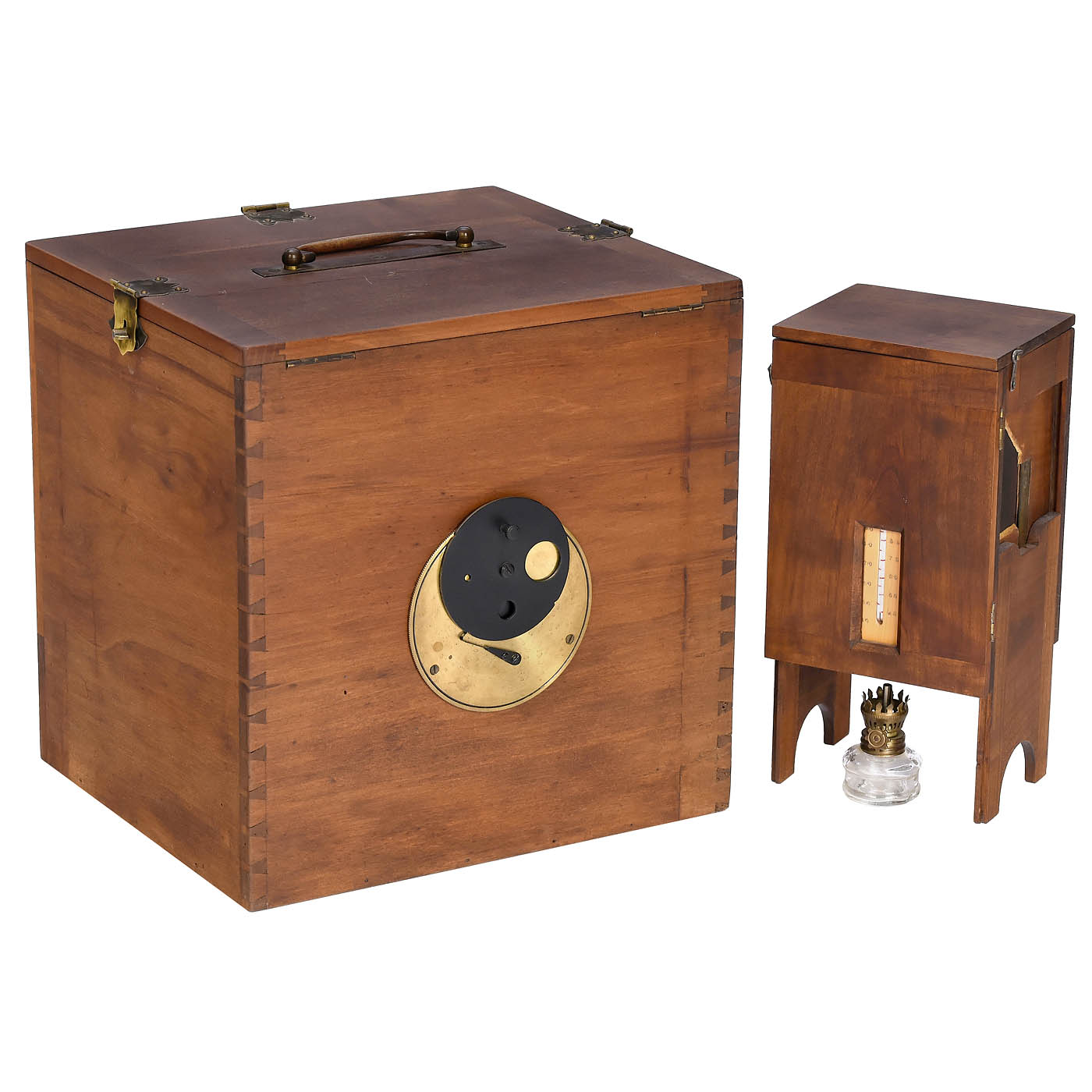

Wooden box 26.5 x 23 x 28 cm, can be opened from the top and back, from the top there is a removable compartment with 2 boxes and space for 10 chemical bottles, one box for storing 81 x 67 mm daguerreotype plates (including a corroded daguerreotype for demonstration purposes, stamped 30 on the back), the other box has a removable tray lined with glass for fixing and the box itself is lined with glass for rinsing. At the bottom of the wooden box there is a separate development box with extendable feet to allow a small burner to be placed underneath to heat the mercury (controllable via the built-in thermometer). In the box there are two small compartments for two additional glass bottles, a focusing screen magnifying glass and a pair of glasses from that era for viewing the focusing screen image (focusing screen is missing, can be replaced). The whole box serves as a camera with a built-in, functioning brass-bound lens with a revolver aperture and sliding focus for a circular image of 63mm, the plate holder is firmly attached with a hinge. – Literature: D’Agostini, "Photographic Lenses", 2011, p. 231. – Important exhibit showing the history of photography.
