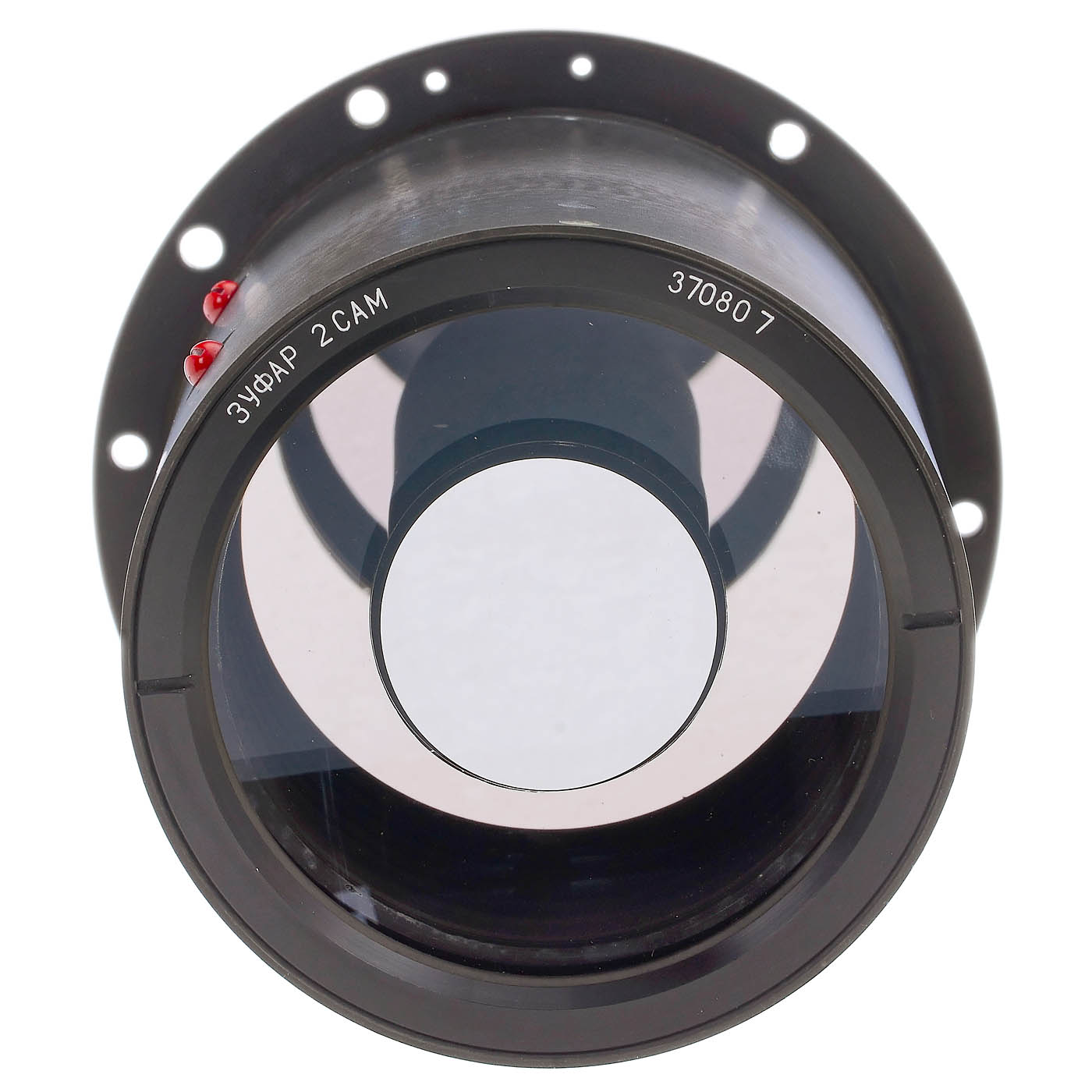

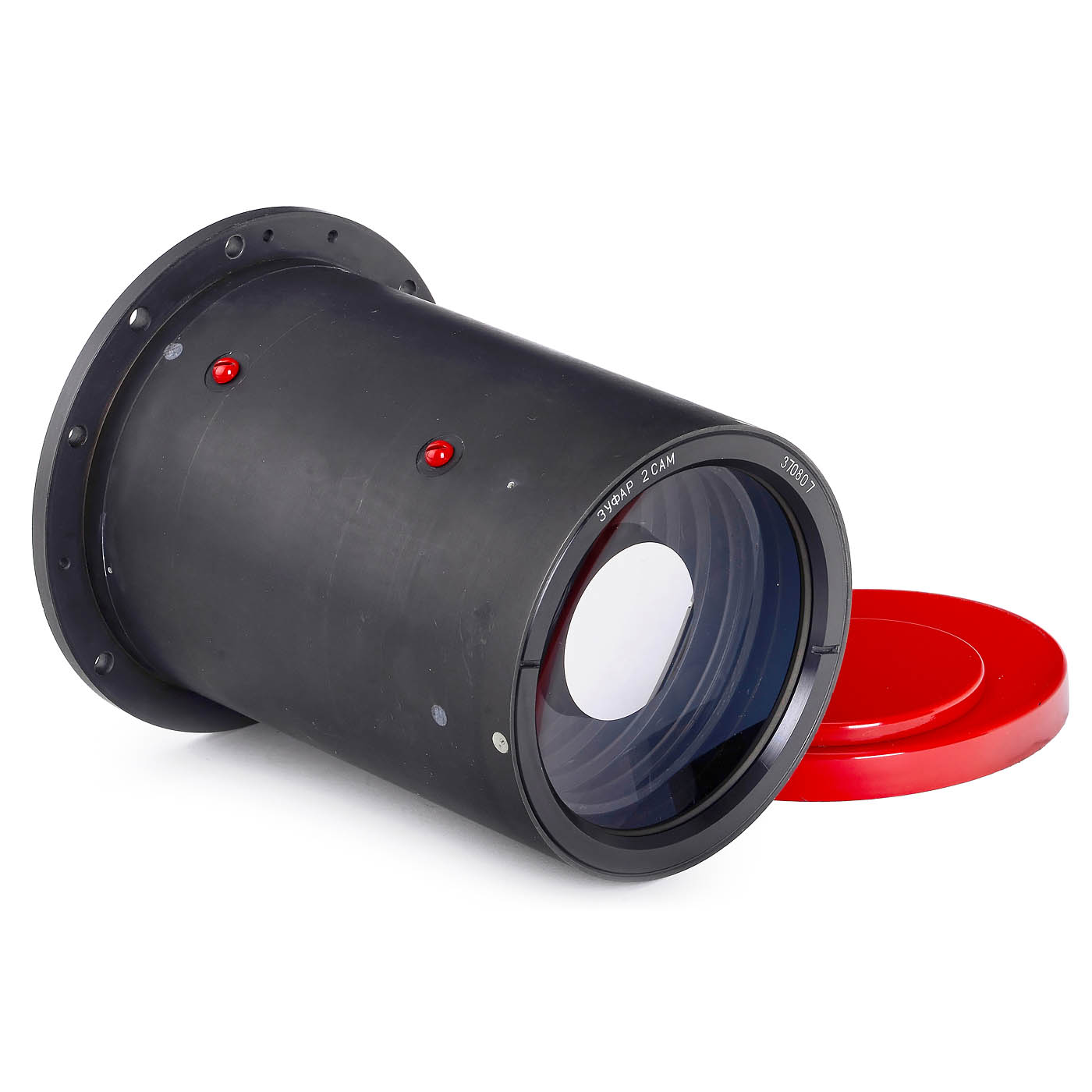

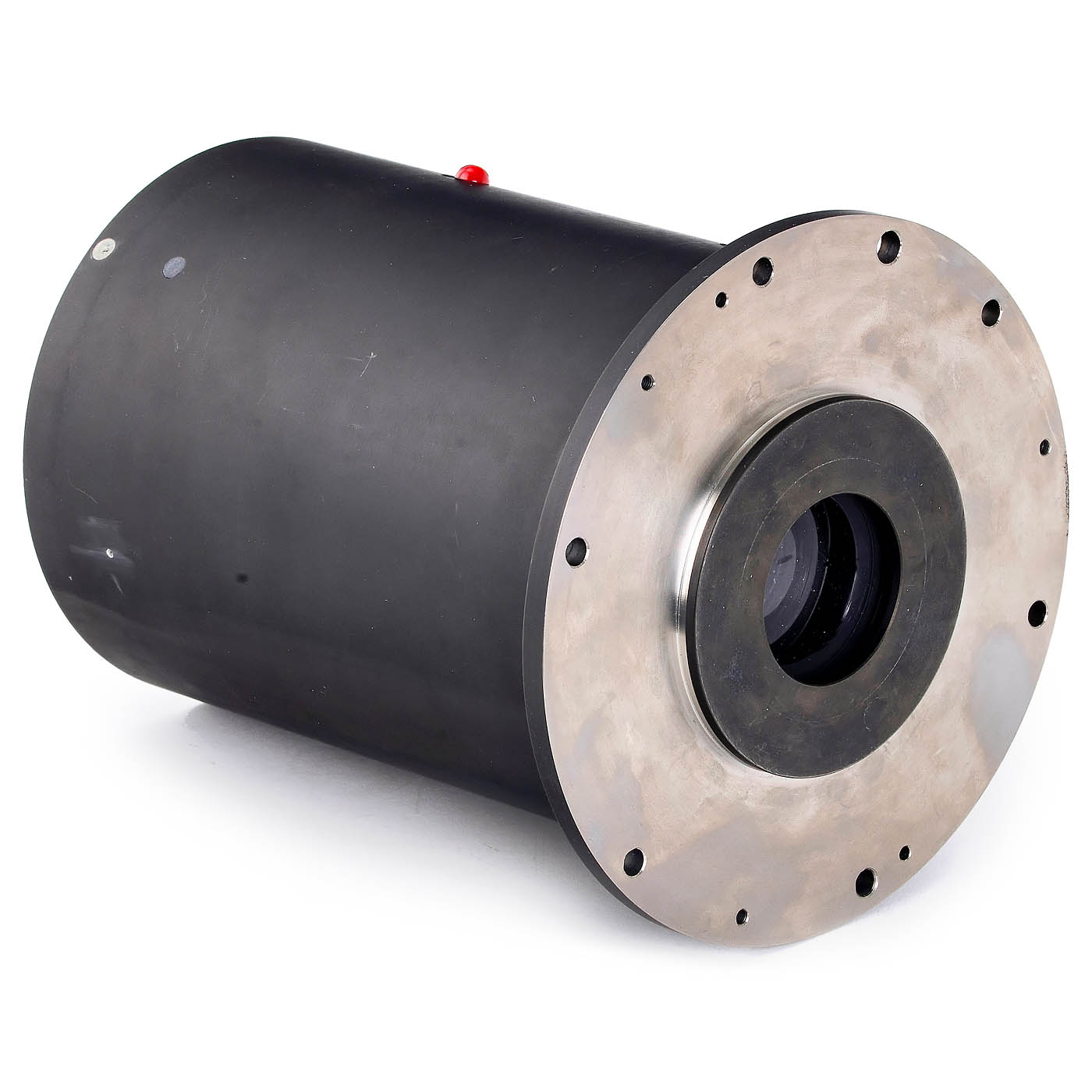

Zufar-2 4/350mm Mirror Lens

USSR. Zufar-2 (OB-512-000) no. 370807. NASA quote: "Zufar objectives were used on the television cameras carried by the Mars-2, 3, 4, and 5 spacecraft. The compact catadioptric quartz-fluorite anastigmat was developed as a result of research on the possible optical arrangements of lens and mirror-lens systems meeting the rigid criteria for spaceborne operation. The system is characterized by precise correction of all aberrations over a broad spectral range, about 300–700 nm. The spectral transmission is about 60% over this range. The Zufar-2CA version of the objective has a geometric aperture ratio of 1:4 and a focal length of 350 mm. The image format is 24 x 24 mm. The housing is 164 mm long and 130 mm in diameter, and the mass of the objective is 1500 g." The mirrors have a yellowish tint (gold coating), optical elements are clean under point light, image circle approx. 48 mm, distance from the last glass surface to the sensor approx. 35 mm. Spare lens for a Mars mission. Very well preserved, with both red caps.
