Wagner-Fennel Sliding Tachymeter, 1907

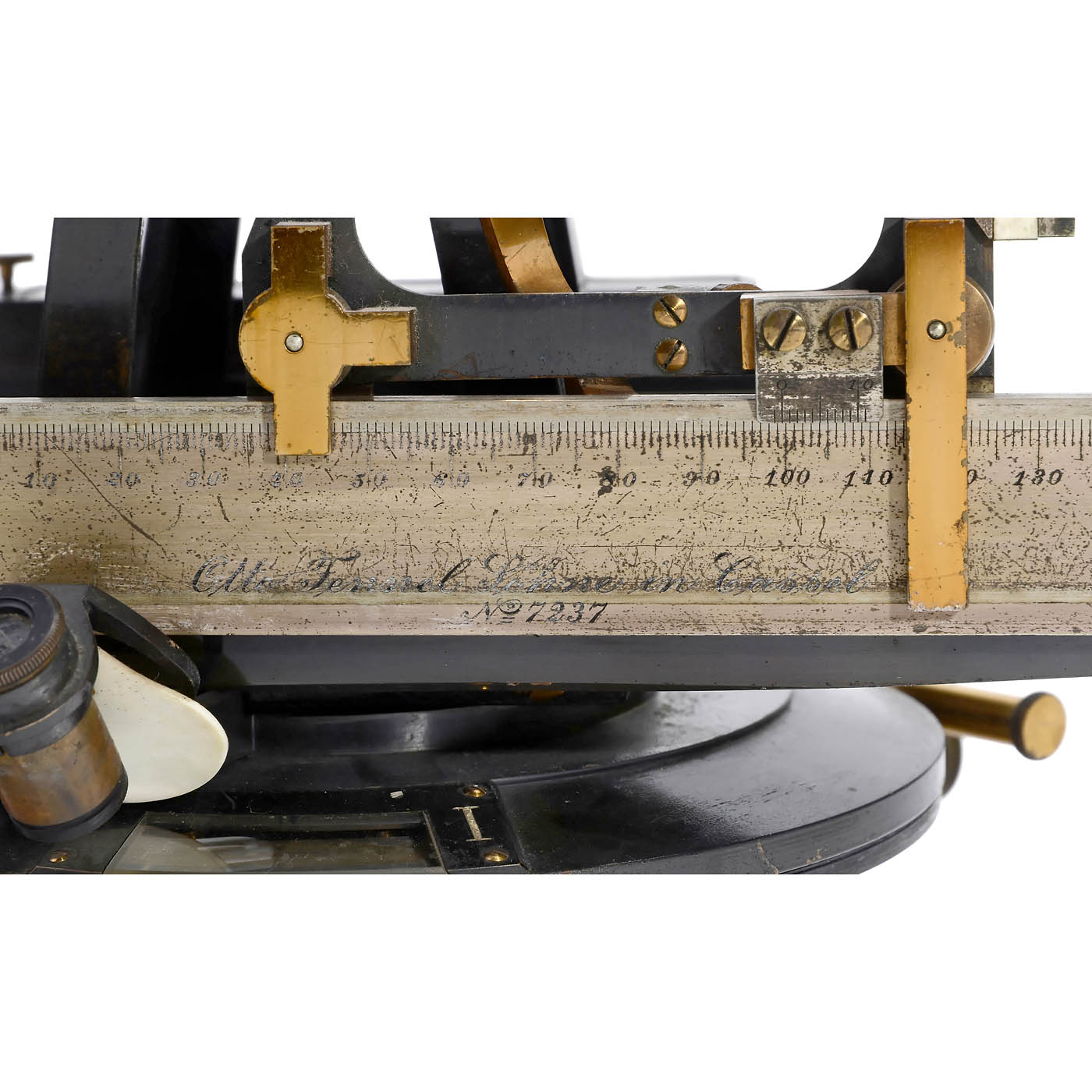

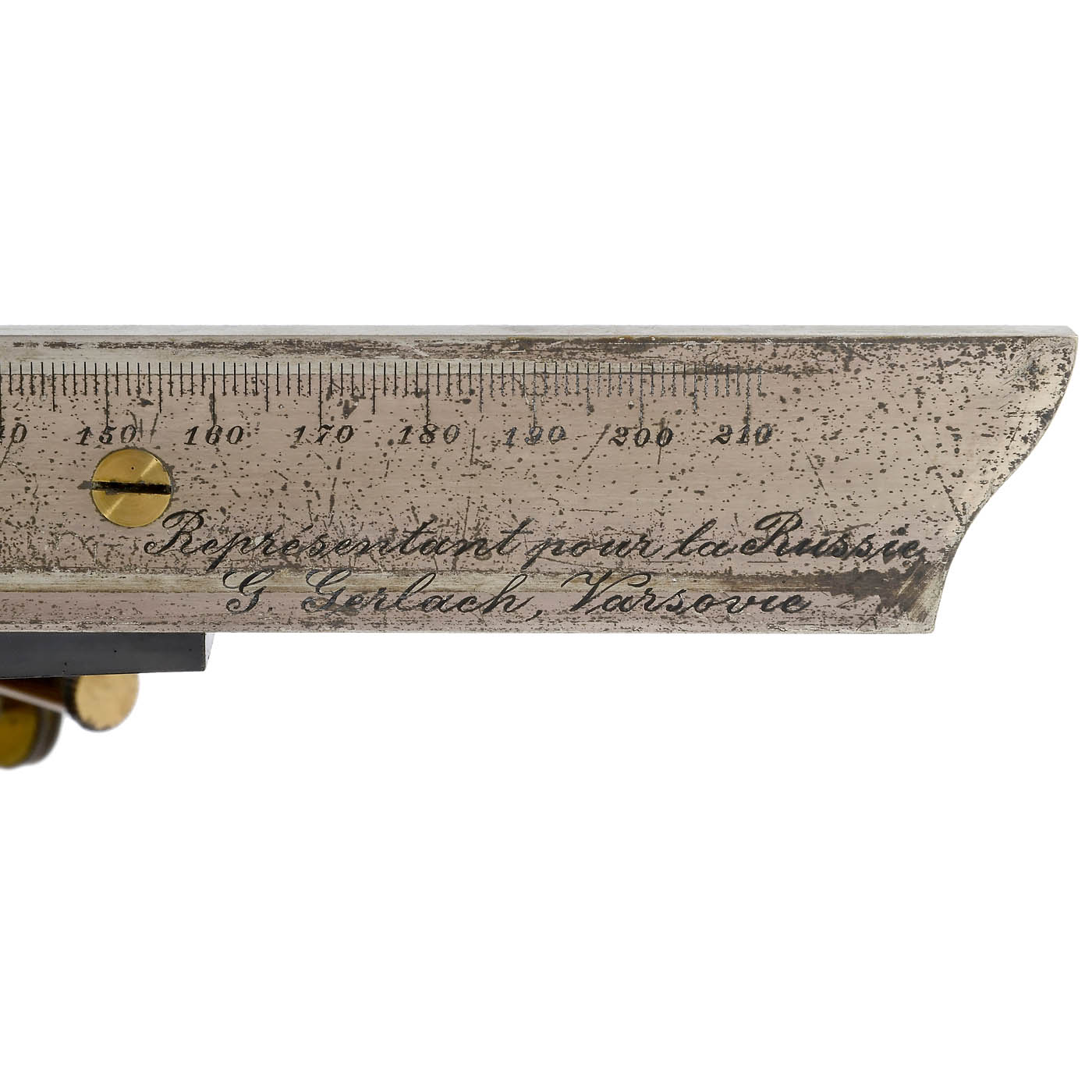

Engraved on the lower ruler: "Otto Fennel & Söhne, Cassel, No. 7237, Representant pour la Russie G. Gerlach, Varzovie", lacquered and blackened brass, silvered scales, 6 ¾ in. horizontal circle, 2 magnifiers, 2 bubble levels, lateral rod-type compass, 3 graduated rulers, all three are arranged in a plane parallel to the plane in which the telescope turns. The inclined scale is attached to the telescope exactly parallel to its line of collimation and moves with it. The horizontal scale is fixed to the upper horizontal plate of the theodolite. The vertical scale is on the vertical edge of a right-angled triangle, which can be slid along on the top of the horizontal scale. The inclined scale carries a slider which is provided with two verniers. Length of the telescope 15 in., overall height 16 1/6 in. - A very rare instrument, in good original condition!
