Telefunken Economy Broadcast

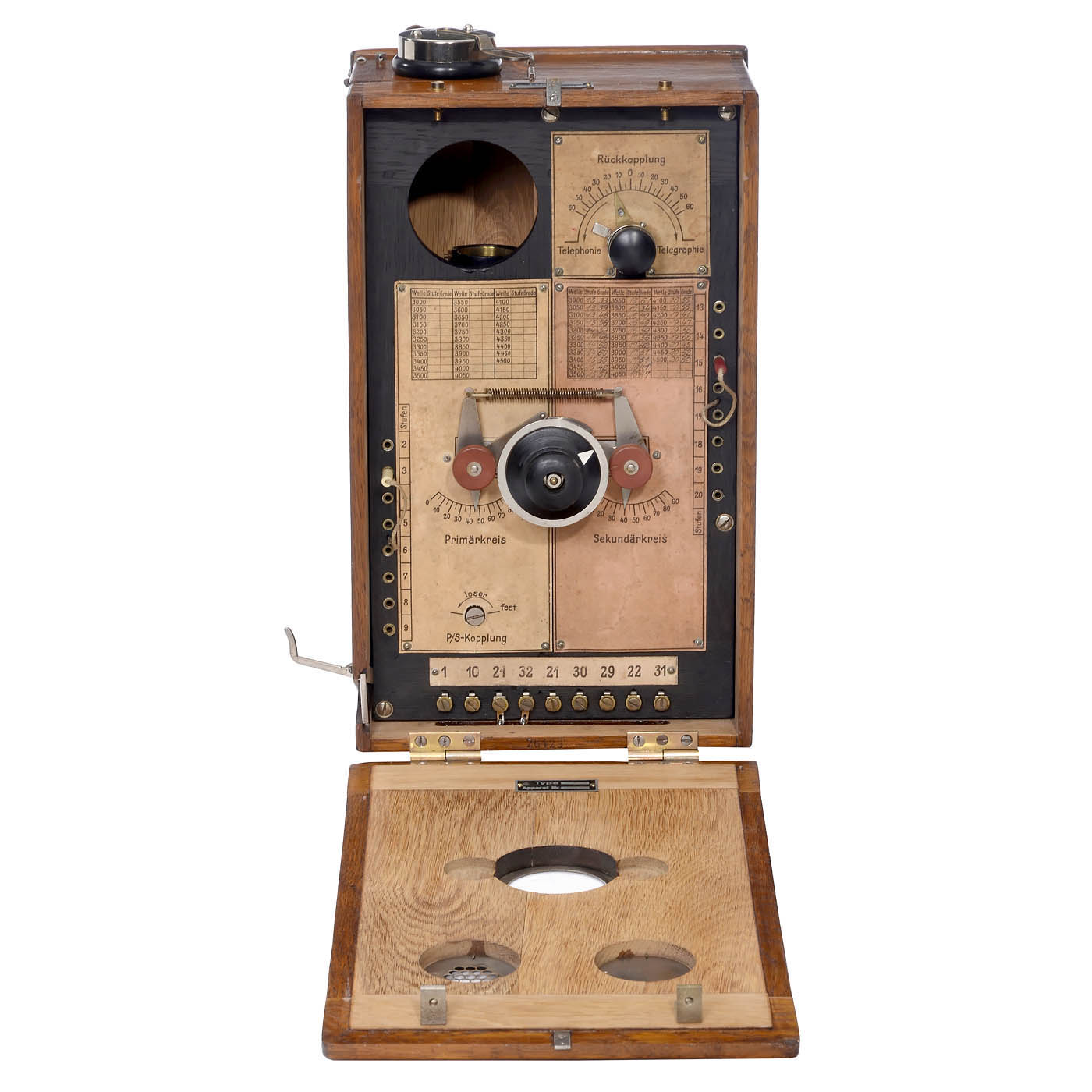

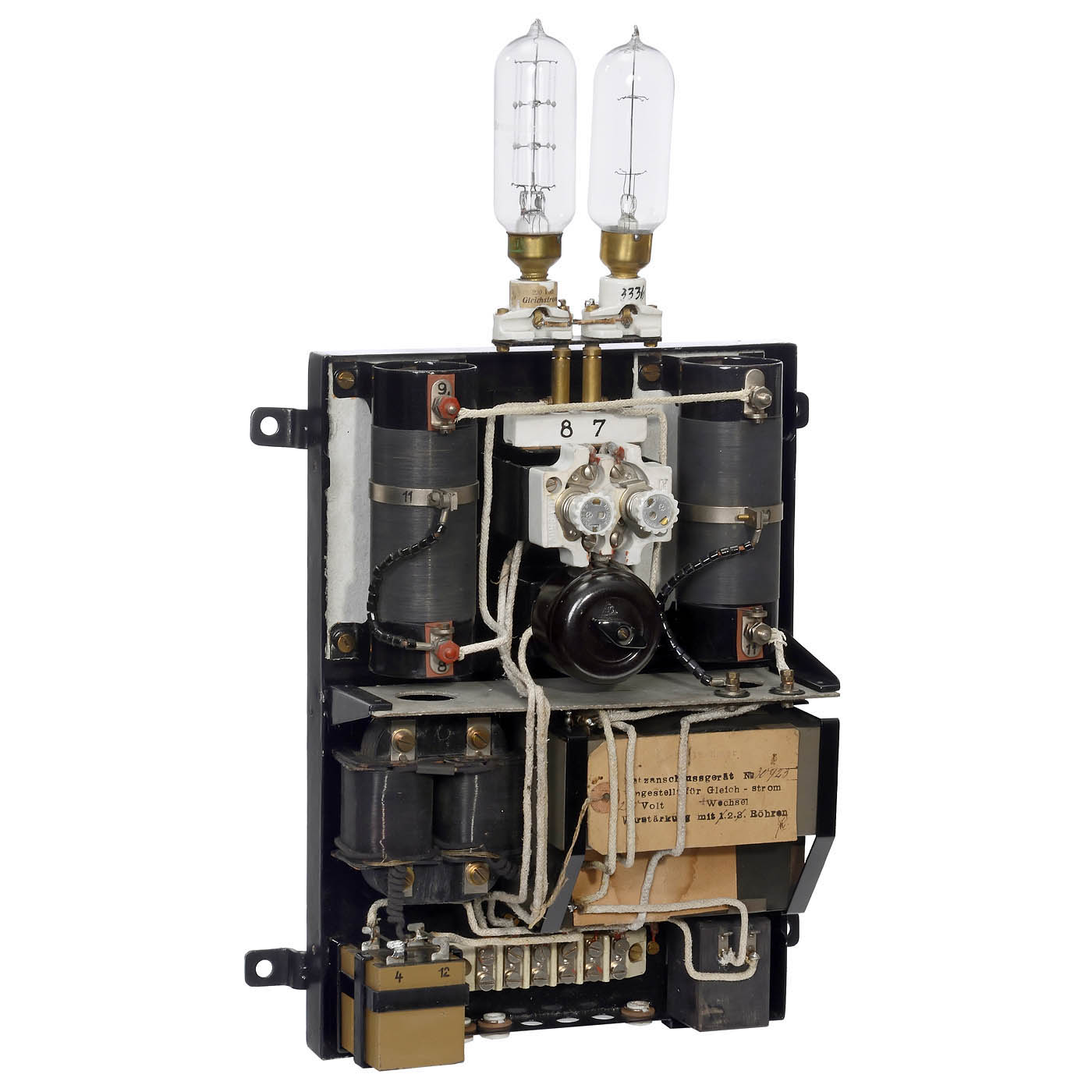

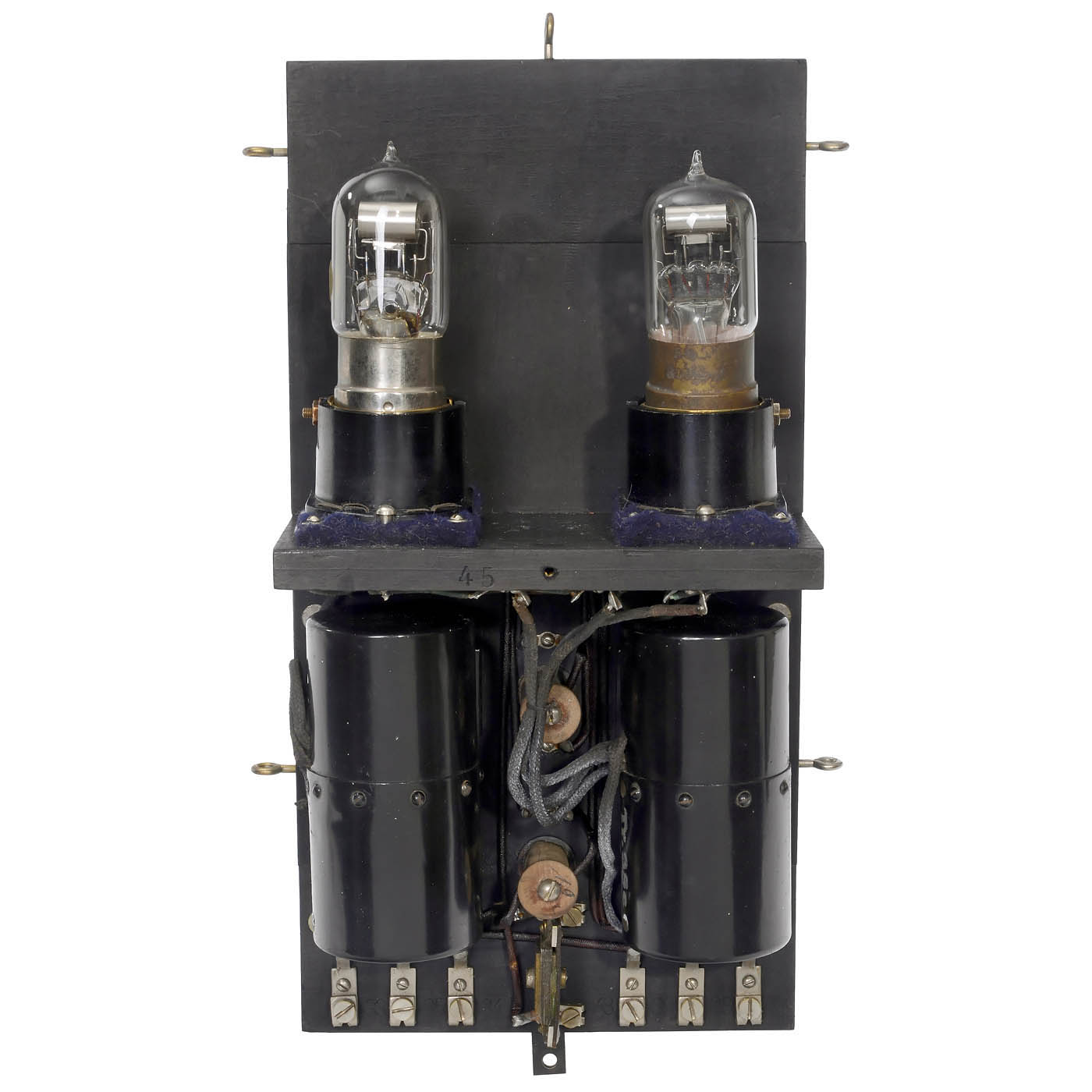

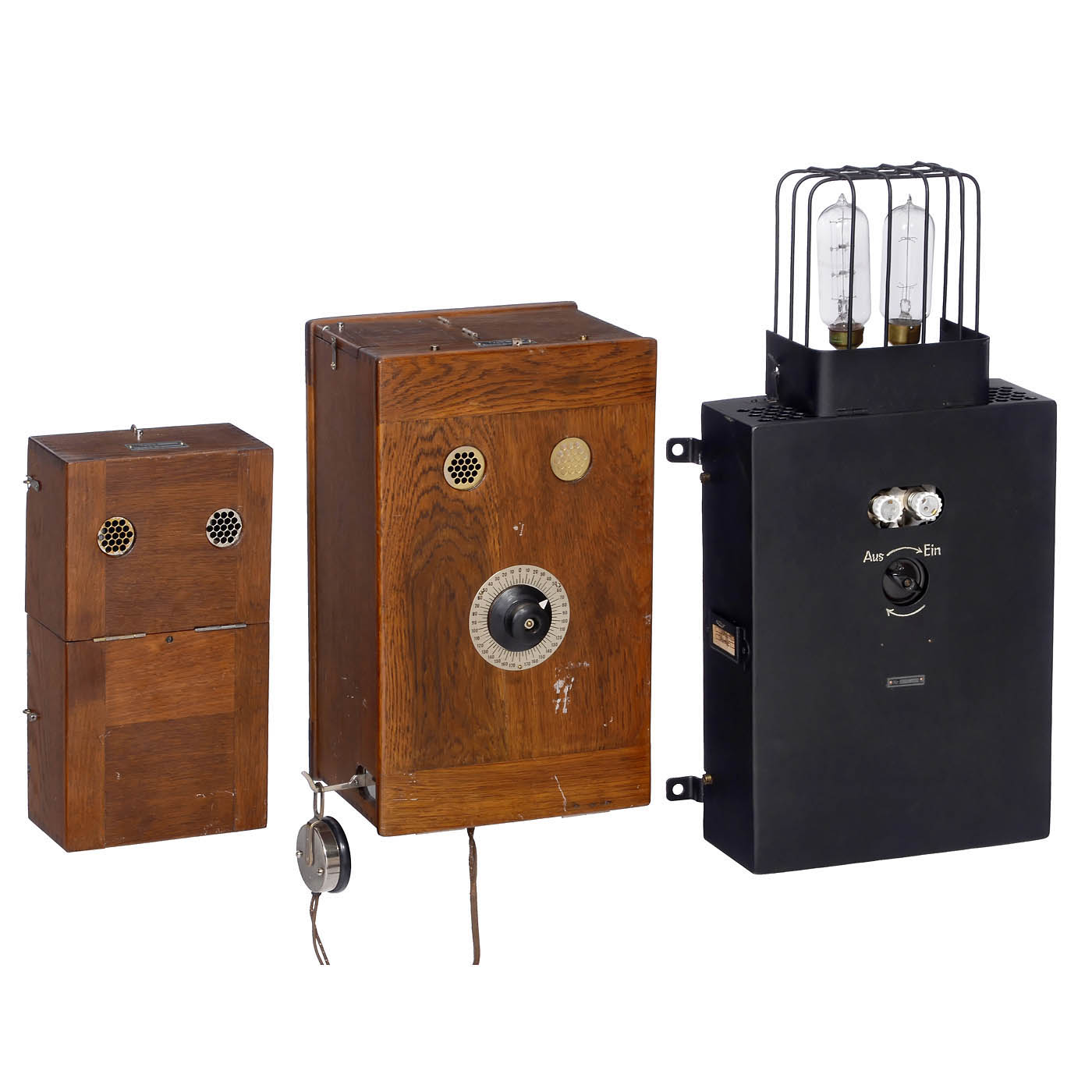

Three-part receiver system, developed and manufactured identically by the companies Telefunken, Lorenz and Huth. 1) Mains connection unit, Huth, no. 30923, for 110 and 220 volts DC, closed metal case, mains switch and 2 screw fuses are accessible from the outside, 2 iron resistors behind mesh on the top of the case. – 2) Secondary Audion receiver, type T, no. 26123, Telefunken, 1 tube (missing), with regeneration, wave range 3000 to 4500 m, switchable from telephony to telegraphy reception, short circuit variometer coils adjustable from outside with rotary knob, side hook switch with receiver (added), oak case with RTV stamp, height 14 ½ in. – And: 3) Low-frequency amplifier, no. 29288, Telefunken, 2 tubes, oak case with RTV stamp, height 11 2/5 in. – Note: "Der Deutsche Wirtschafts-rundspruch" was broadcast from 1922 to 1924 via the long-wave transmitter Königs Wusterhausen on wave 4000. The range was 3000 km with the two-tube receiver. It was a fee-based radio service, primarily for stock exchange, foreign exchange and commodity quotations. The equipment was rented out by the Reichstelegraphenverwaltung (RTV), sealed and serviced in the event of faults. In 1924, there were already approx. 2000 subscribers.
