Telefunken Quenched Spark Transmitter and Detector Receiver, c.

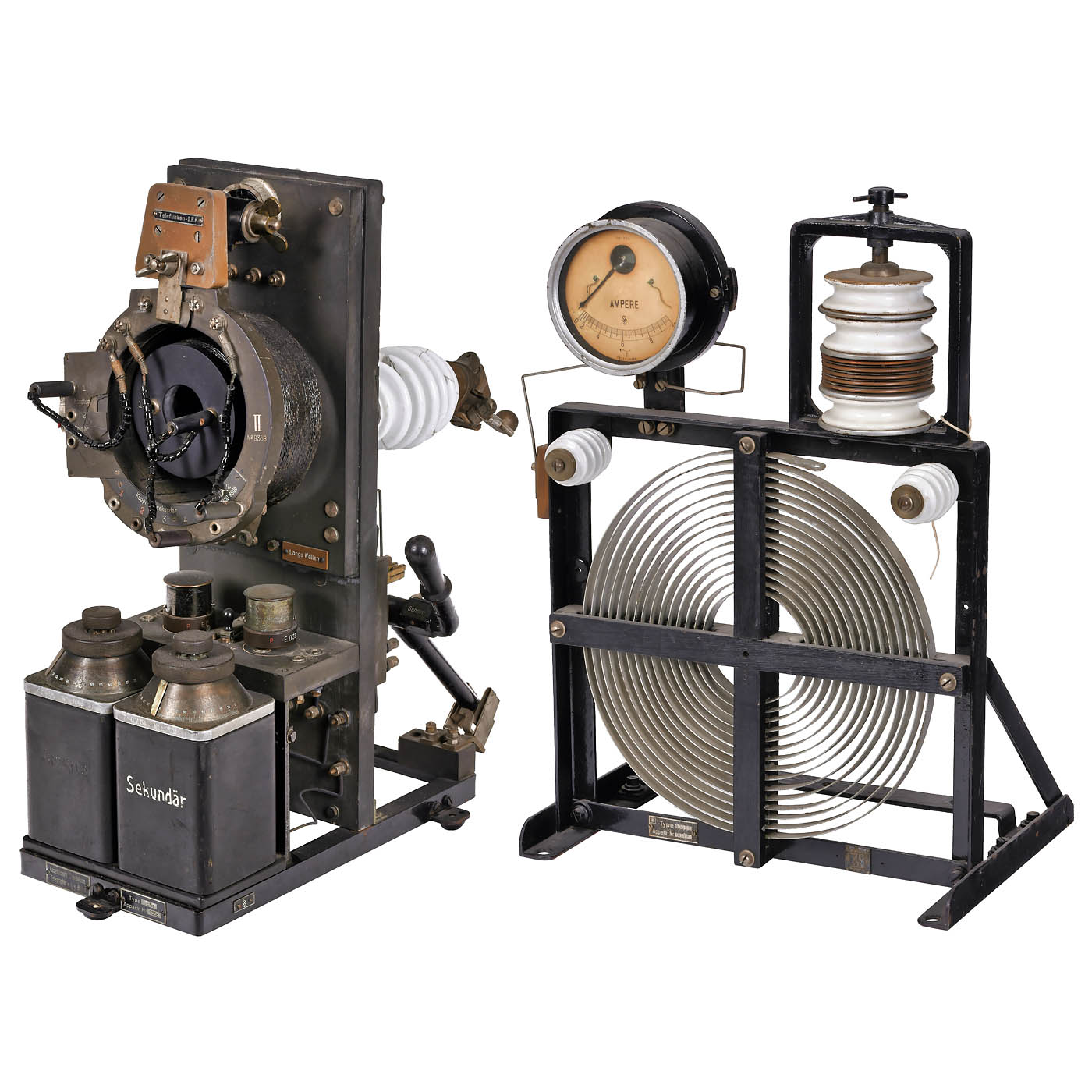

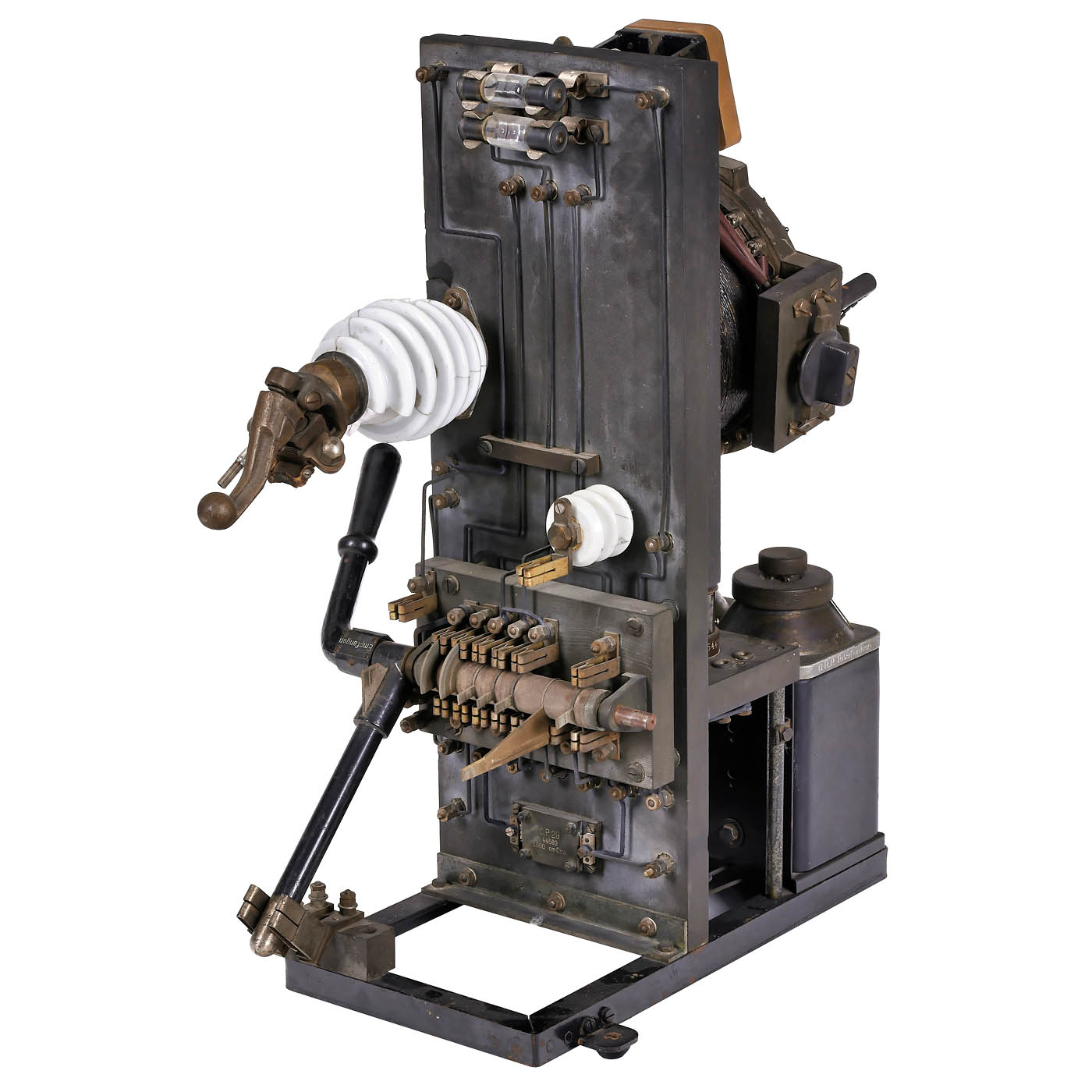

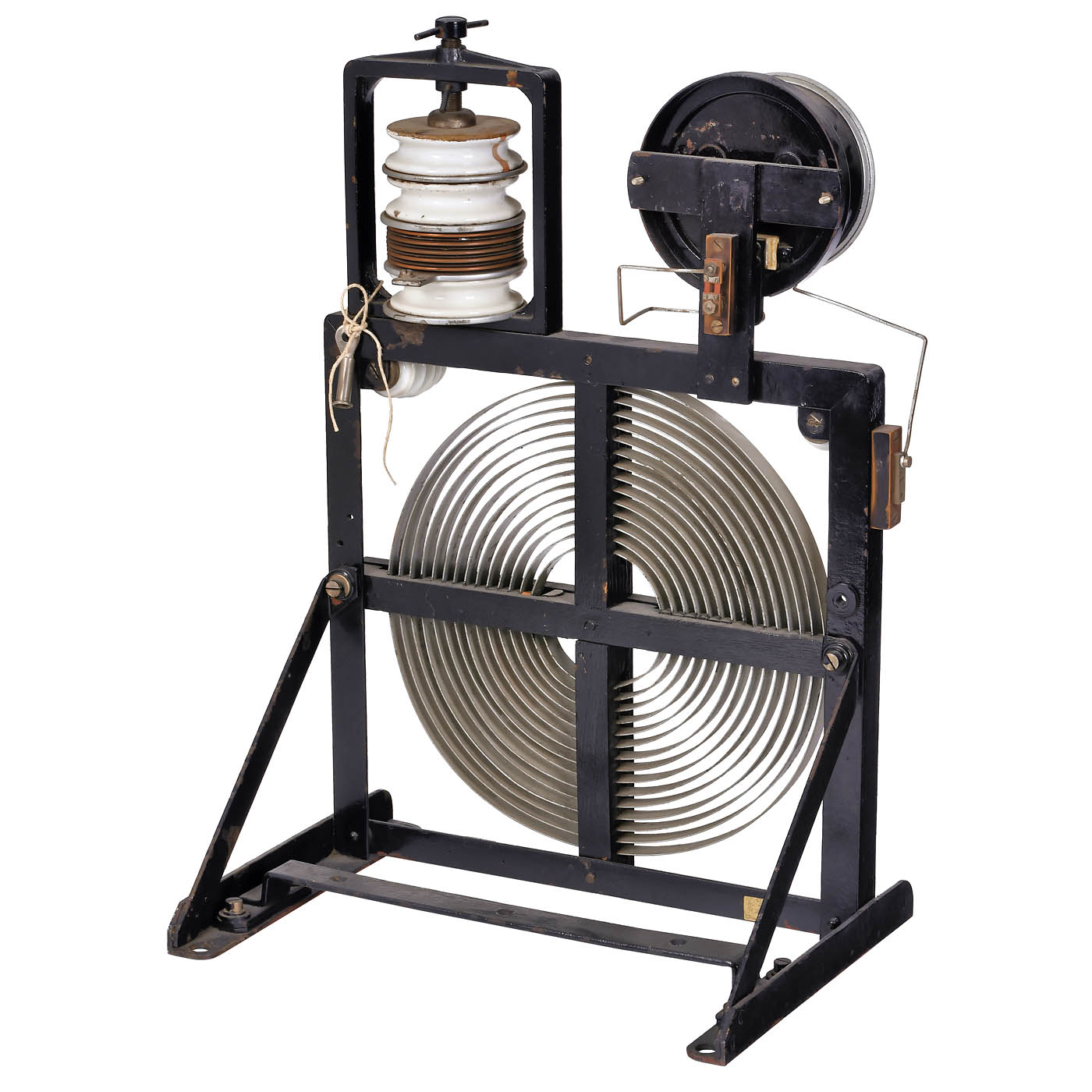

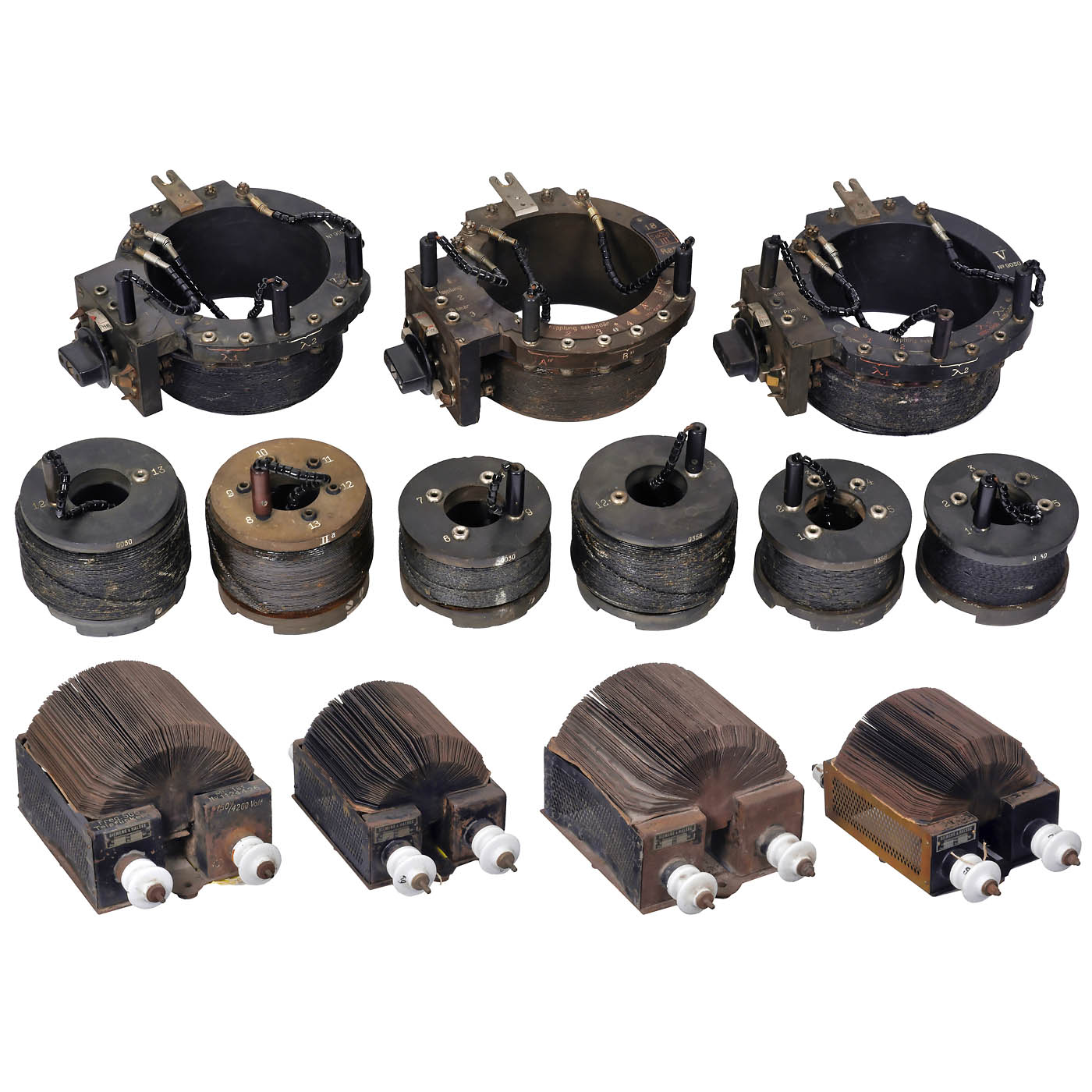

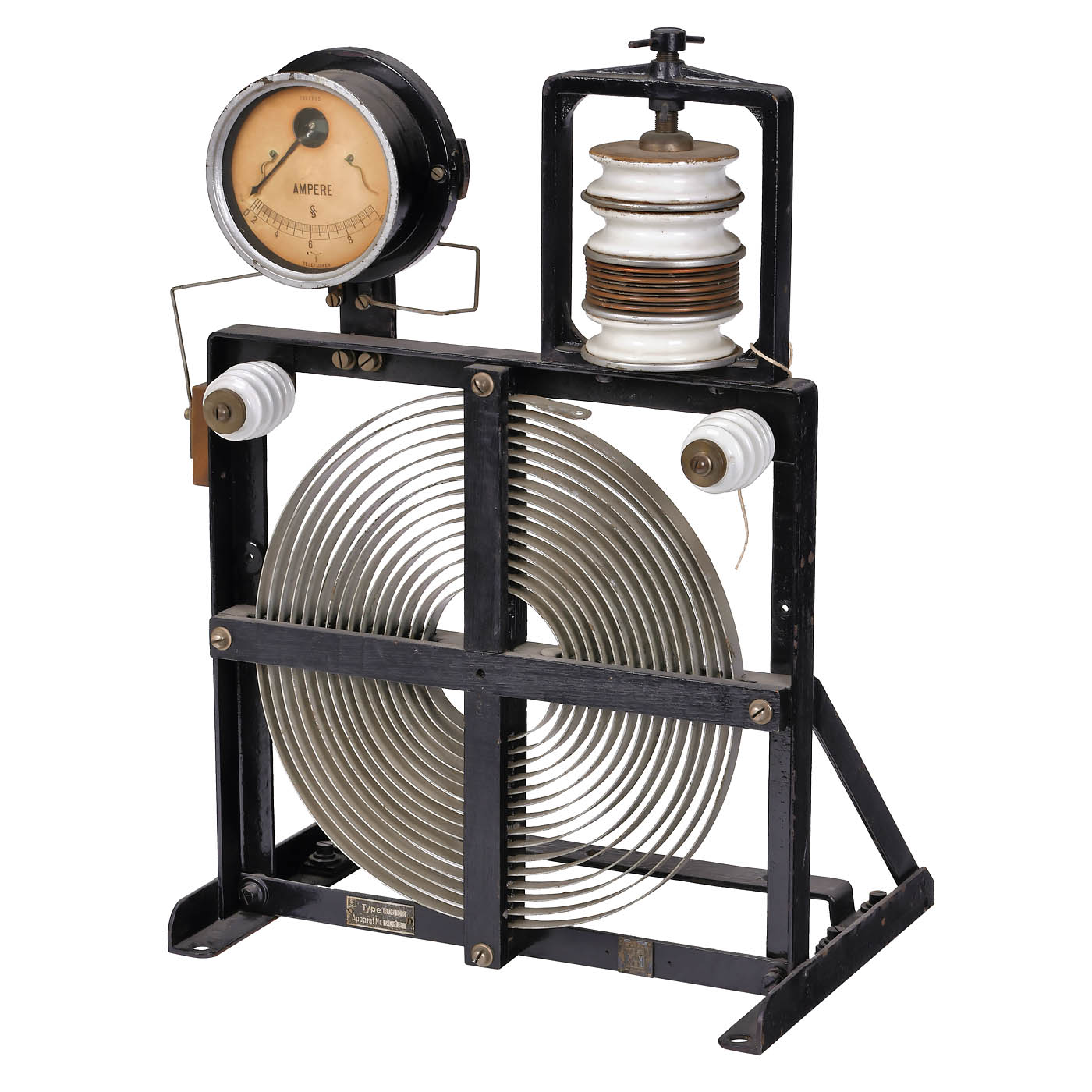

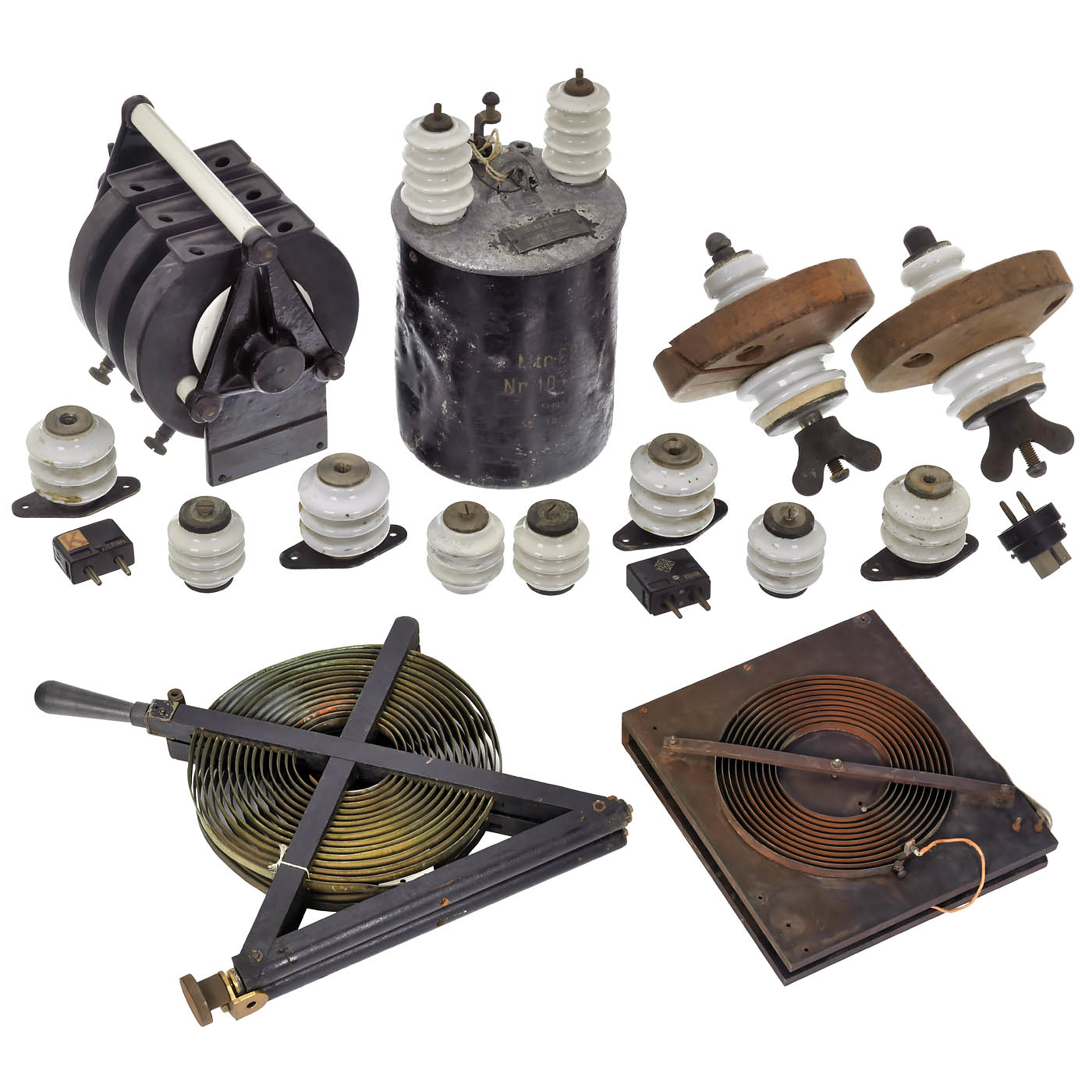

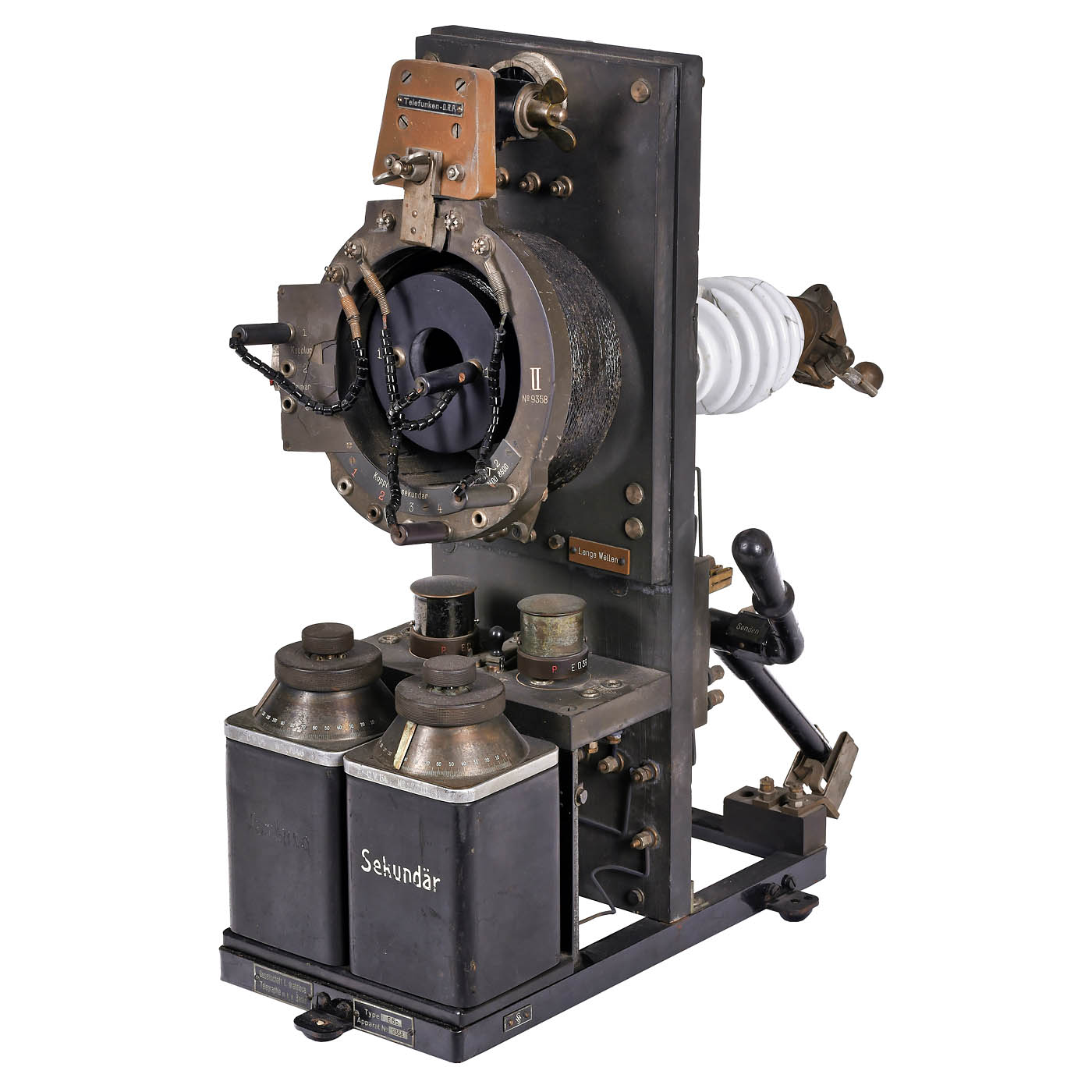

1) TK 05 transmitter system, 0.5 kW aerial energy, for 3 fixed waves from 300 to 600 meters, with extinguishing spark gap, antenna ammeter by Siemens & Halske and copper tape coil for tapping the working frequencies. This type of transmitter was used on medium-sized passenger steamers and shore stations. - 2) Primary and secondary receiver E5c, 2 plugged detector crystals, change-over switch to operate one transmitter on a common antenna, with 4 replaceable coils, one coil and a porcelain insulator damaged. - 3) Sound controller, portable with handle, for transmitter testing. - 4) 8 porcelain insulators. - 5) 4 voltage transformers by Siemens & Halske. - 6) 2 variometers, copper tape, one with 2 coils, the other with 3 coils. - 7) Extinguishing spark gap, two-part, with cooling, porcelain insulators, in cast frame. - And: 8) Transformer, Siemens & Halske, primary 55/110 volts, secondary 4000 volts, 500 hertz.
