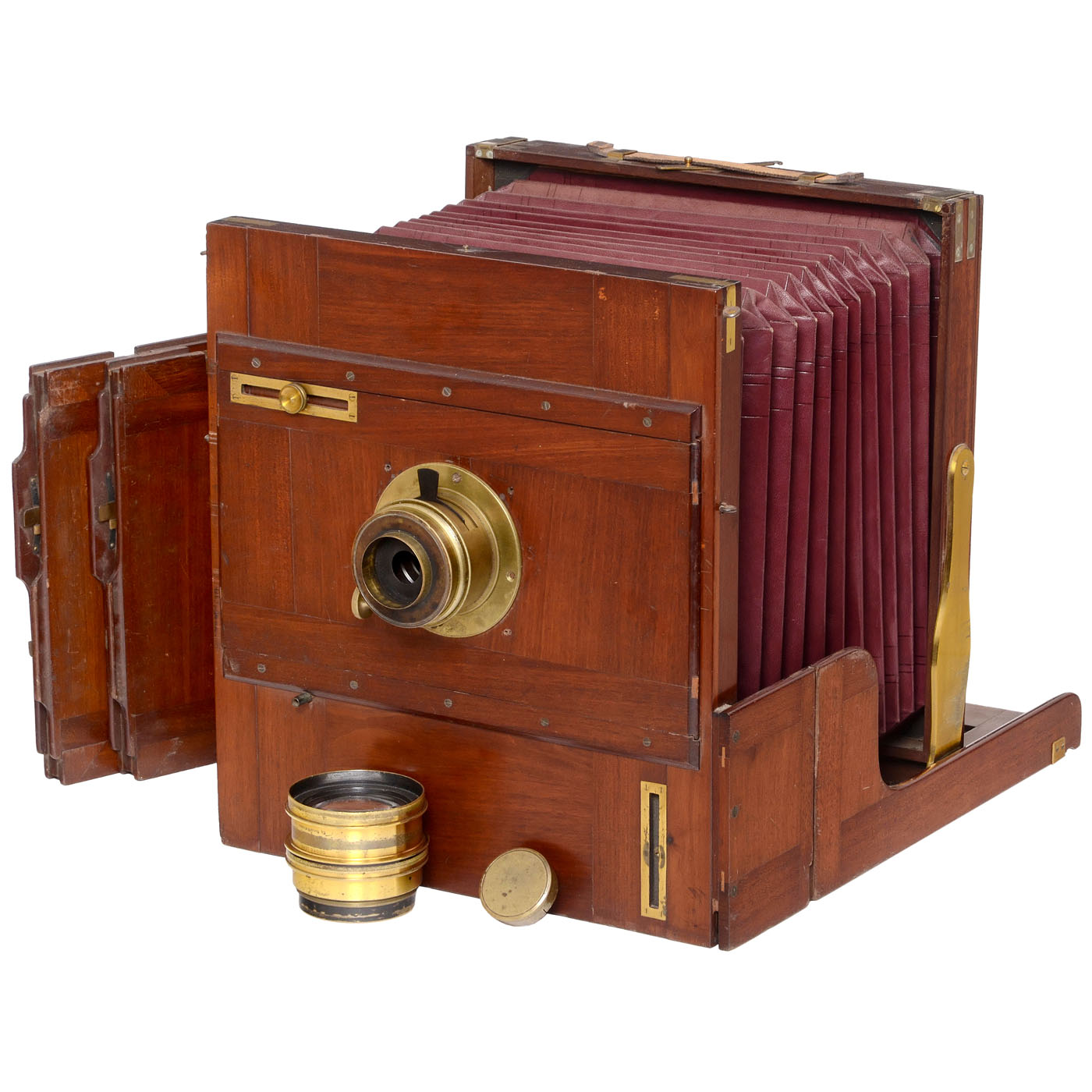

Tailboard Camera (24 x 30 cm) with 2 Lenses

Probably England, tropical wood with brass fittings, stable construction, tilting back, Darlot-type lens of approx. 16/32 cm, illuminates the format, inscription partially concealed under the rack-and-pinion holder, Waterhouse stop, rear section with a 60.5 mm Ø achromatic element inscribed "13 Darlot & de Jamin (…?) 4a", threaded front diaphragm with brass cap and original screw ring, inside flap shutter for lenses with 100 mm Ø (rubber in need of replacement) and two double cassettes, 48 cm long, with 46 cm tailboard, one screw missing, left clamp on the focusing screen in need of repair. - In addition: Taylor, Taylor & Hobson No. 16891 Cooke Lens Series V of 18.4 inches with iris aperture up to 90, front element in need of internal cleaning, otherwise glass is good. Something for super large-format users.

布雷克拍品等级是为了方便竞买人判断拍卖品的成色而设置的。布雷克等级用1到6级来标注外观和功能的成色，(从非常好到非常差)。 在目录图册里用括号里的2个数字来表示，前一个数字表示外观成色的级别，后一个数字表示功能成色的级别。如(3/2)表示外观成色是3(满意的)，功能成色2(好)。 成色 定义参照下列标准： 1 - 非常好 (未使用过，没有使用痕迹) 2 - 好 (新，极少的使用痕迹) 3 - 满意的 (普通的使用痕迹) 4 - 及格的 (明显的使用痕迹，某个非主要部件是后配的) 5 - 有缺陷的 (极明显的使用痕迹, 某个主要部件是后配的，功能上有缺陷，需要修理) 6 - 非常差 (严重破损, 缺少重要部件)
