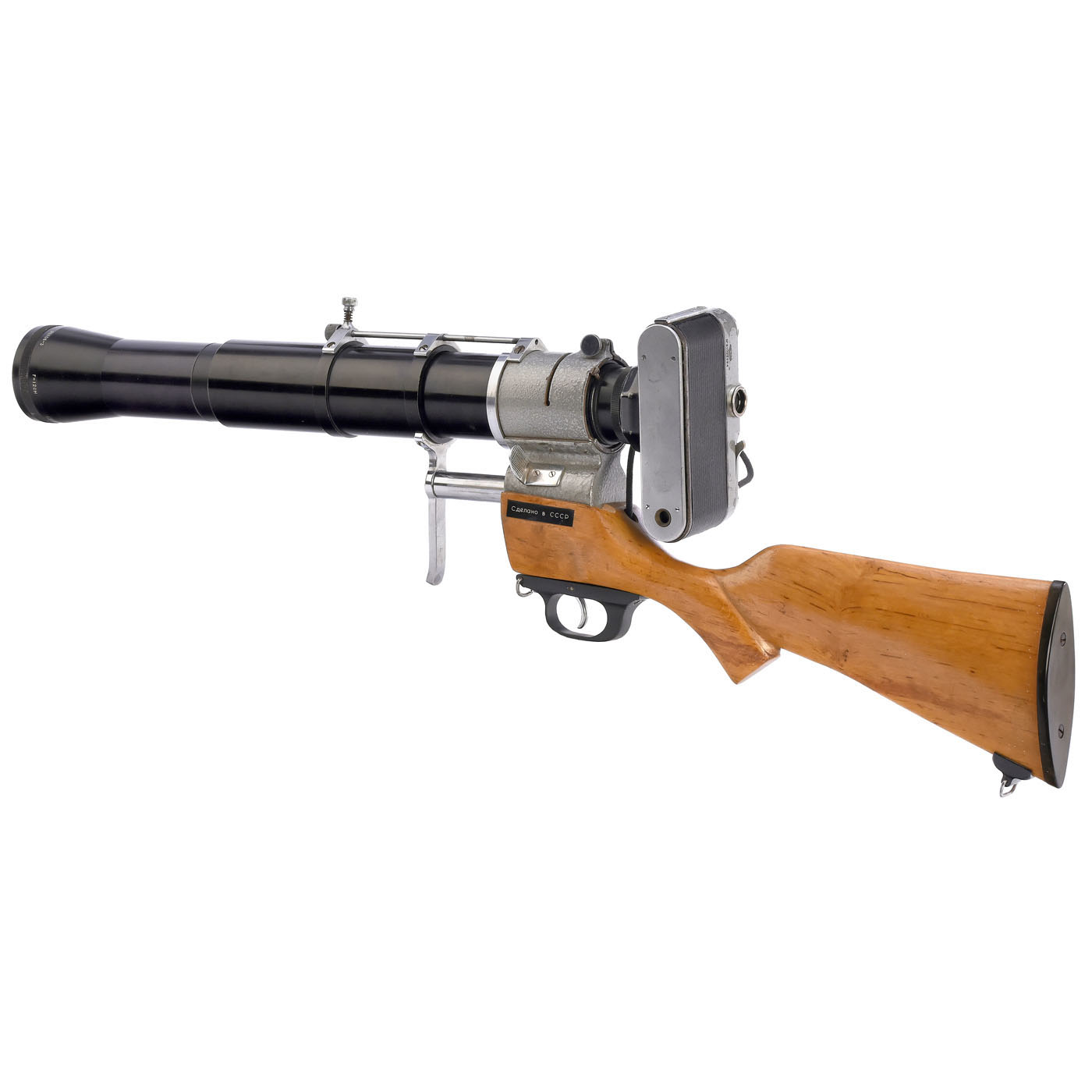

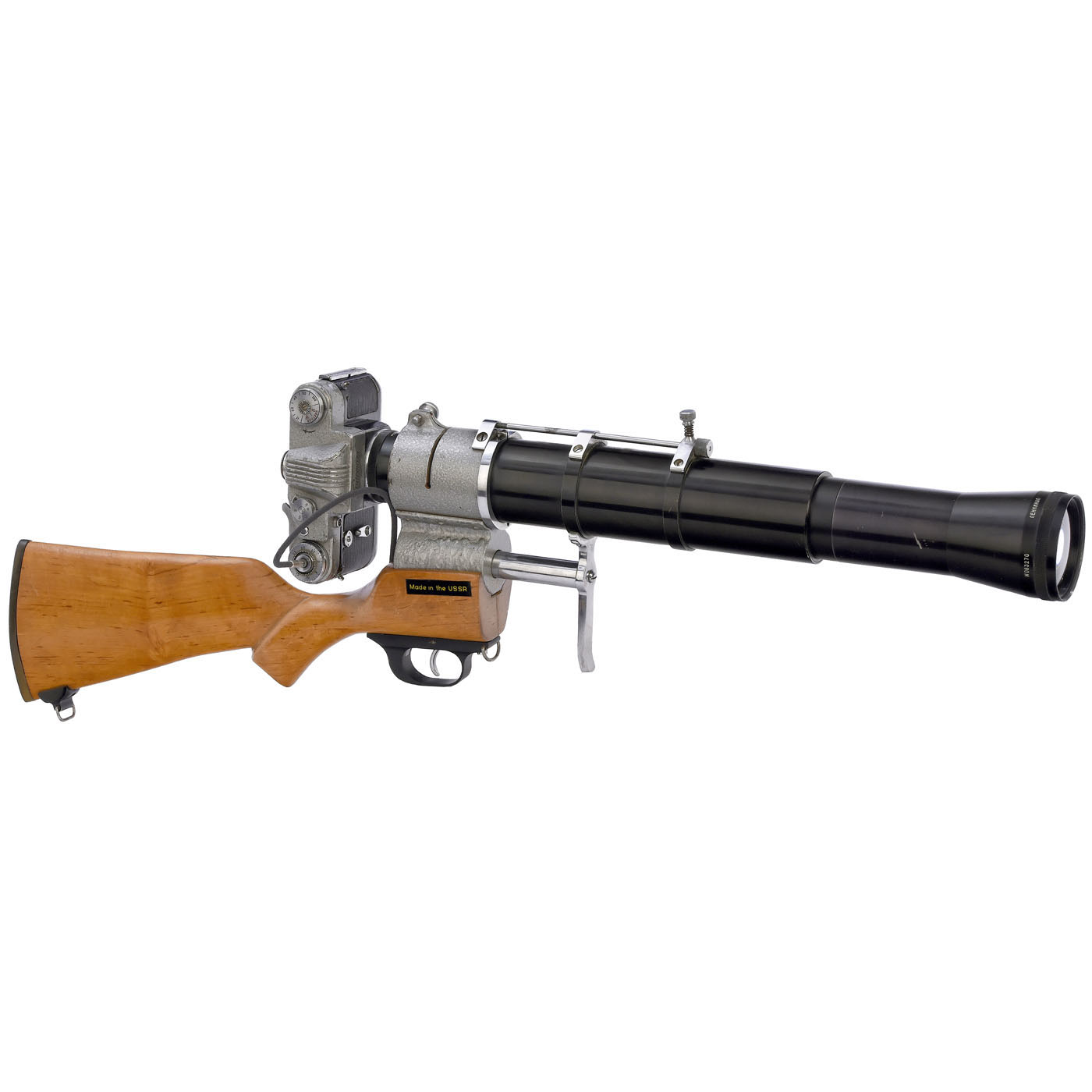

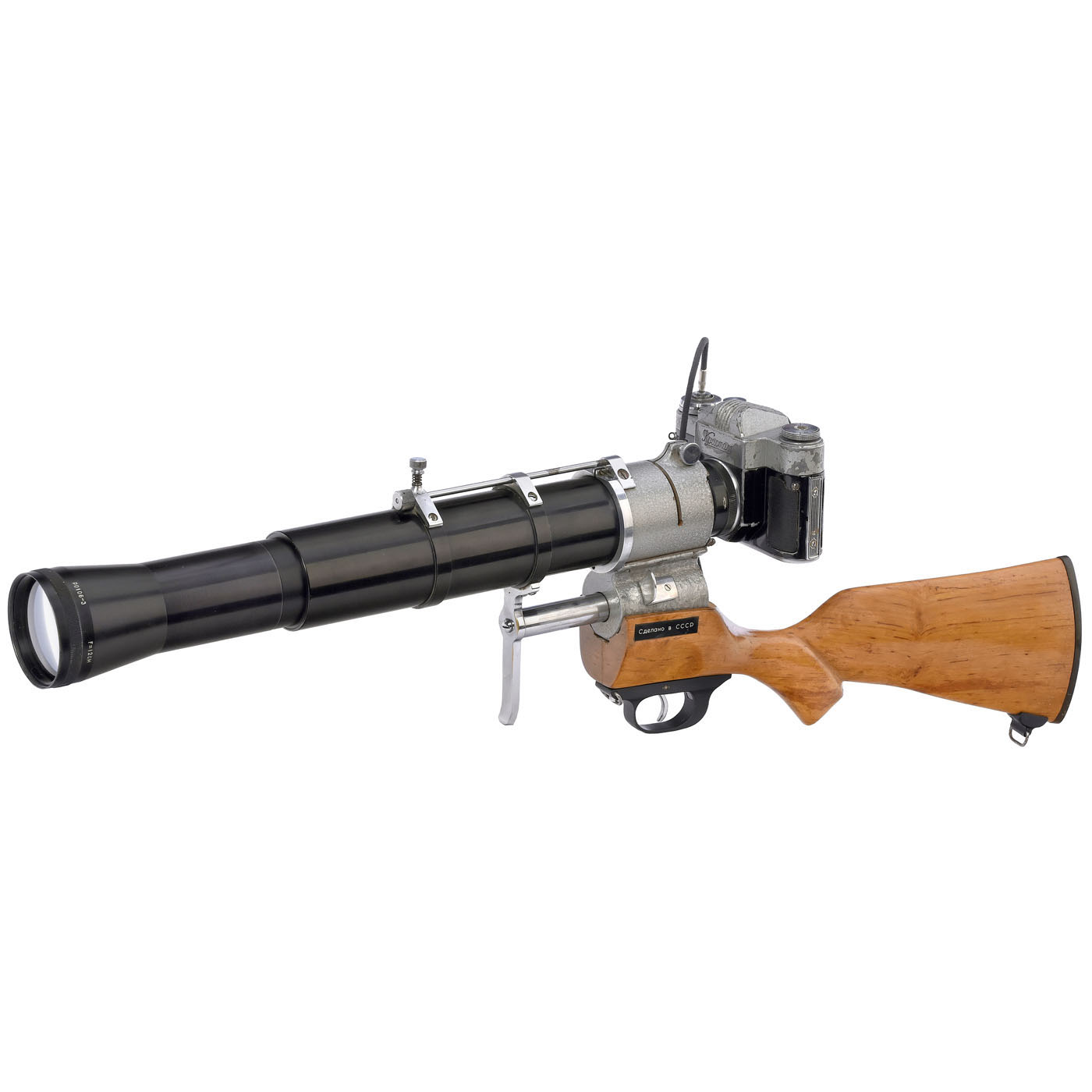

KMZ Crystal Rifle Camera for the Hunt for Unknown Objects, c. 19

KMZ, USSR. Crystal No. 61022994, SLR for 24 x 36 mm, with grey hammered paint effect, rifle mount in corresponding finish and an indirect zoom lens, shutter working. – Note: A scientific rifle camera for Unusual Flickering Objects that would otherwise appear blurred. The camera was presumably built as a prototype for scientists in Akademogorodok, to document insects or plants quickly, conveniently and undisturbed, as well as for researchers who need to focus objects far beyond infinity (optical cloaking) and are not disturbed by the inverted image in the reflex viewfinder. The camera is fitted with an indirect zoom lens, the negative element is fixed and there is no structural focusing option. The only movable part is the positive element, a Petzval type 2/12 cm no. 063270, which is far away from it. It is the only element that controls the lens by means of the stroke of the slide rod (51 mm stroke). Without stroke, the macro range is 1:1 at a distance of 65 cm from the front lens. With a stroke of 28 mm, infinity is reached with a focal length of approx. 500 mm. Then, structurally, there is a further stroke of up to 23 mm for considerable scope far beyond infinity, more than any known infrared index. Due to its design, the lens aperture is at its weakest at infinity; at close range the light intensity increases significantly due to the shortening of the focal length. The addition of an iris diaphragm is unnecessary. The image quality (checked with a strong magnifying optics in the film window) is of high color purity and sharpness.
