Zeiss Ikon Slow-Motion Film Camera, c. 1940

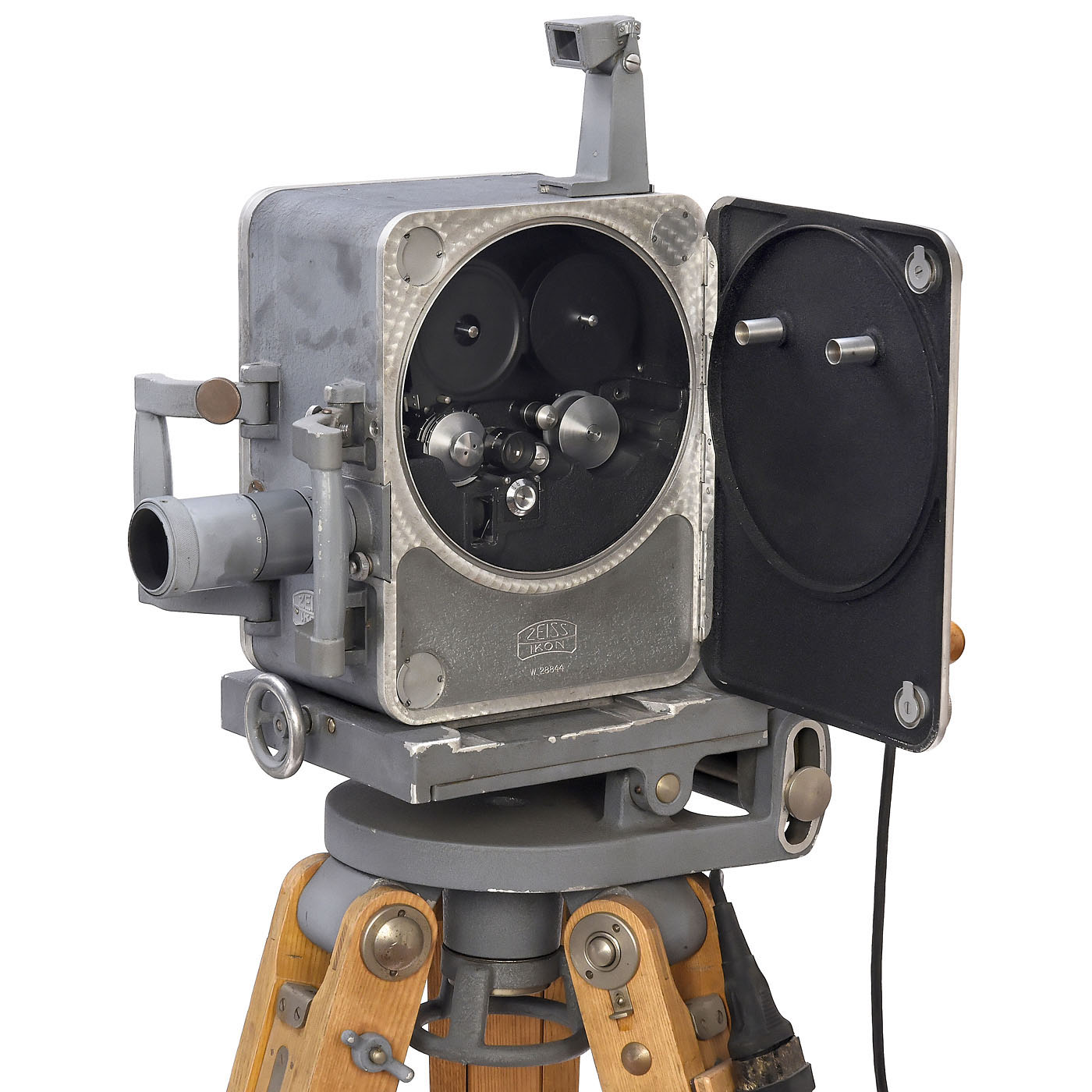

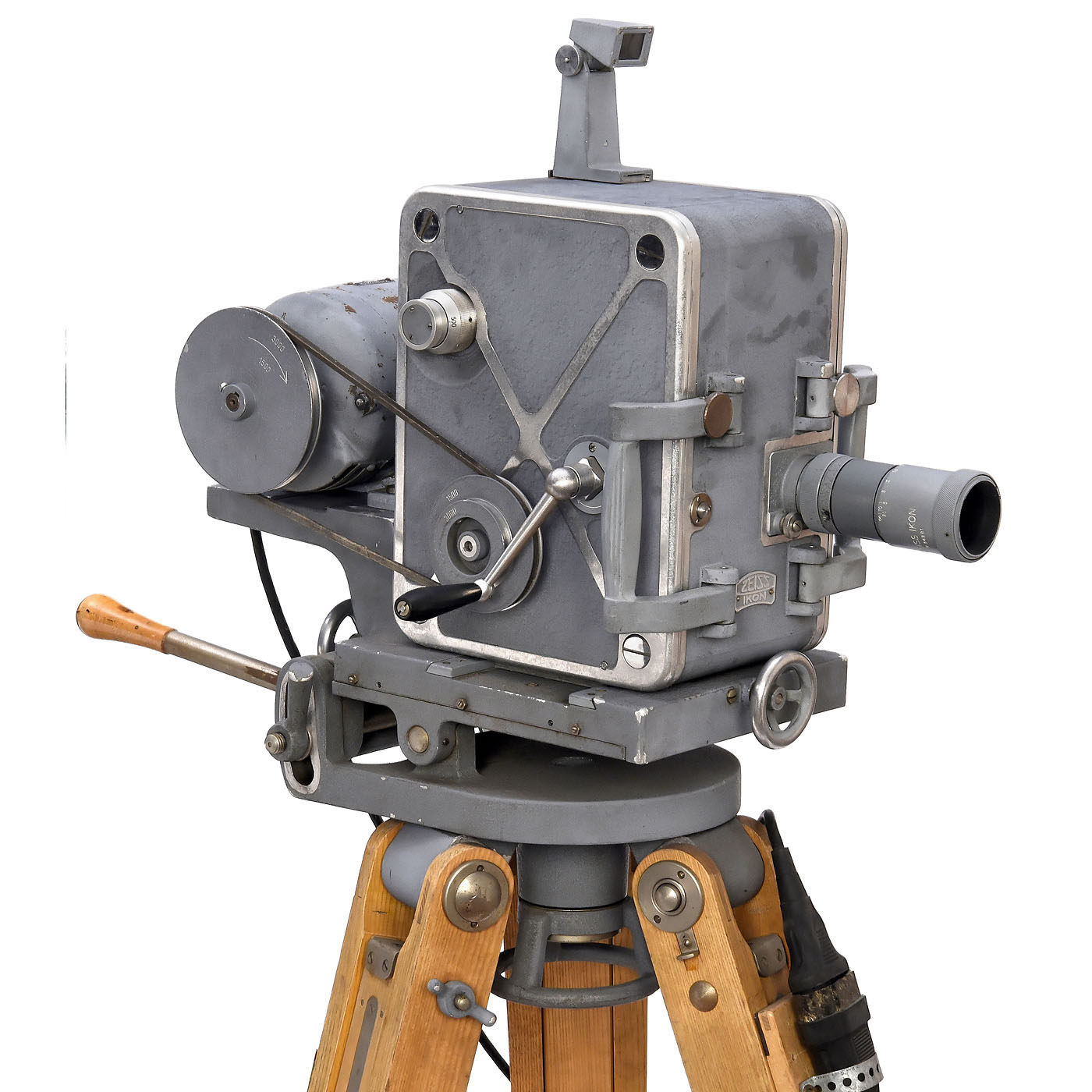

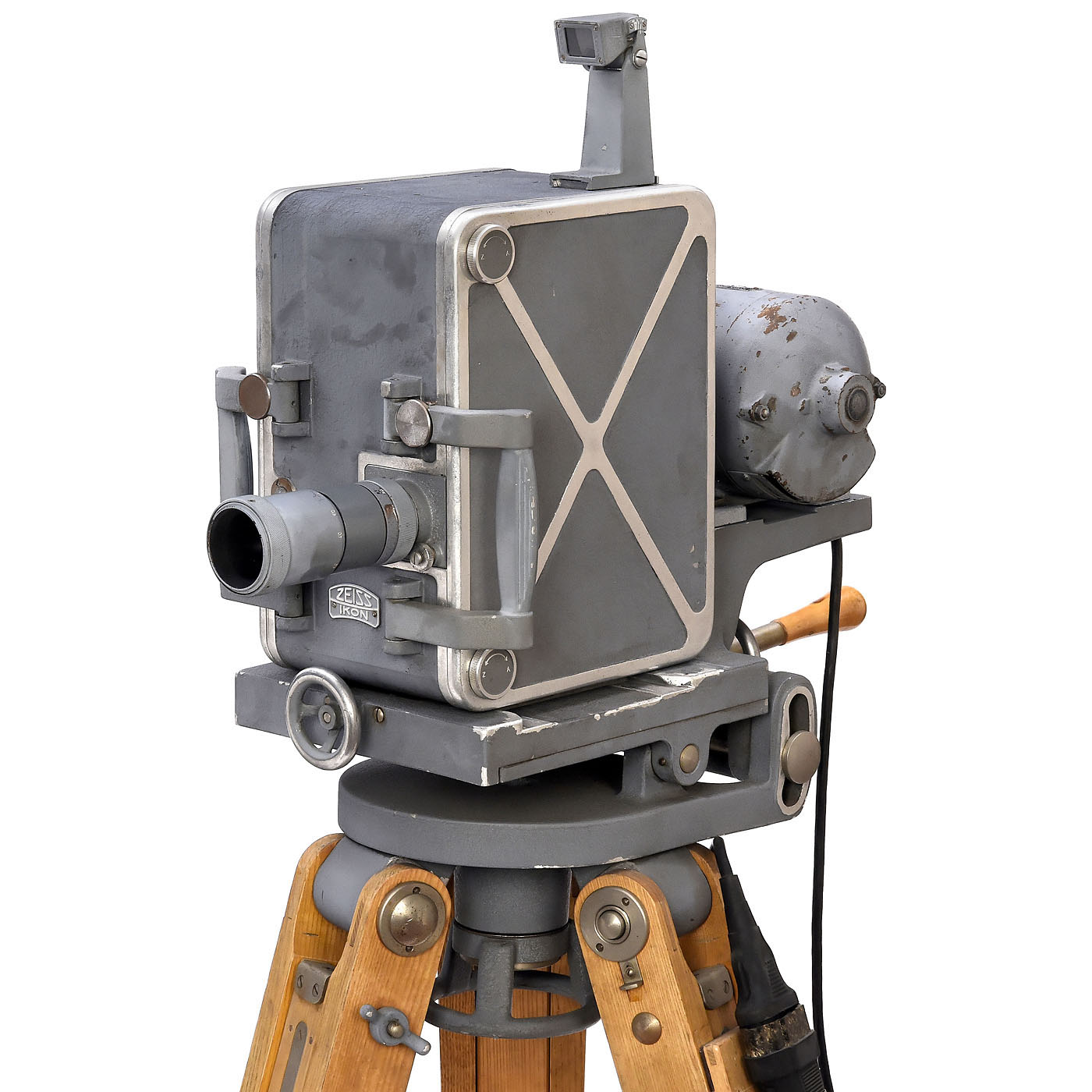

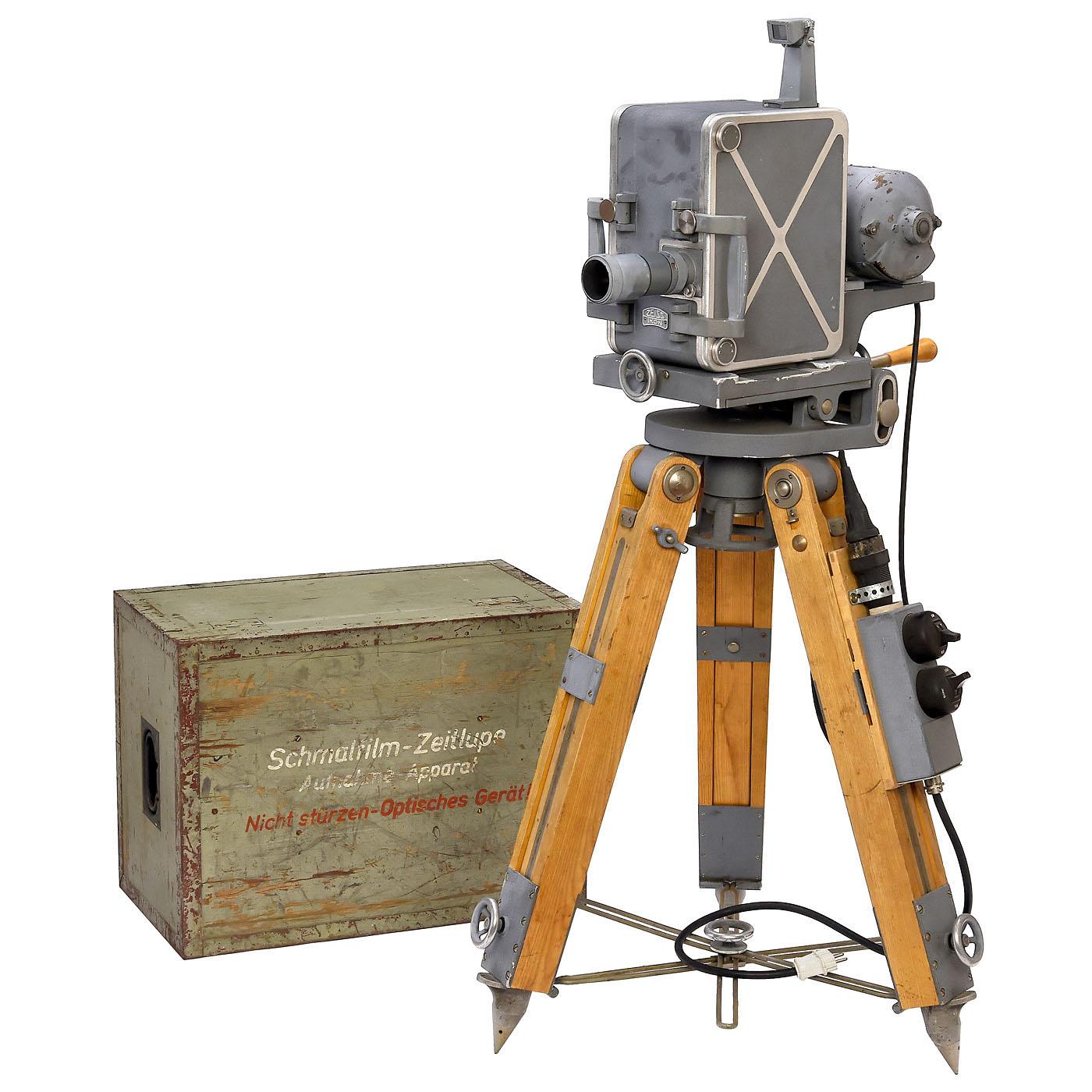

Zeiss Ikon, Dresden. No. W28844, for 16mm film strips on 30-meter daylight spools, with integral spring motor, Zeiss Ikon 1:2.8/50 mm lens in a macro setting mount from infinity to 0.5 m. crop control via an interchangeable Newton viewfinder on the camera housing, electrical functions untested. – In addition: Original labeled transport box. – Note: Due to the high frame rates, a mirror ring is installed instead of a frame switcher, which continuously accompanies the film image on its progress through the camera. When powered by the built-in spring mechanism, 1,000 images per second were possible. When coupled to the attached Zeiss Ikon motor, 3,000 images per second were possible. The necessary stability against the vibrations caused by weapons tests was achieved by an exceptionally heavy wooden tripod. In order to meet the demands of the booming armaments industry, Zeiss Ikon developed this new slow-motion camera to replace the previous 1928 model. A first example was presented at the Leipzig Autumn Fair in 1939 under the motto "A new camera for industry and the Wehrmacht". The number produced is not known. Most of these slow-motion devices were delivered to the Army Research Institutes to document armor-piercing ammunition and other technical processes. In addition, several such cameras are said to have been brought to Peenemünde for documentation of the V1 and V2 rocket projectiles.

布雷克拍品等级是为了方便竞买人判断拍卖品的成色而设置的。布雷克等级用1到6级来标注外观和功能的成色，(从非常好到非常差)。 在目录图册里用括号里的2个数字来表示，前一个数字表示外观成色的级别，后一个数字表示功能成色的级别。如(3/2)表示外观成色是3(满意的)，功能成色2(好)。 成色 定义参照下列标准： 1 - 非常好 (未使用过，没有使用痕迹) 2 - 好 (新，极少的使用痕迹) 3 - 满意的 (普通的使用痕迹) 4 - 及格的 (明显的使用痕迹，某个非主要部件是后配的) 5 - 有缺陷的 (极明显的使用痕迹, 某个主要部件是后配的，功能上有缺陷，需要修理) 6 - 非常差 (严重破损, 缺少重要部件)
