Busch Double-Speed Petzval-Type Portrait Lens, after 1872

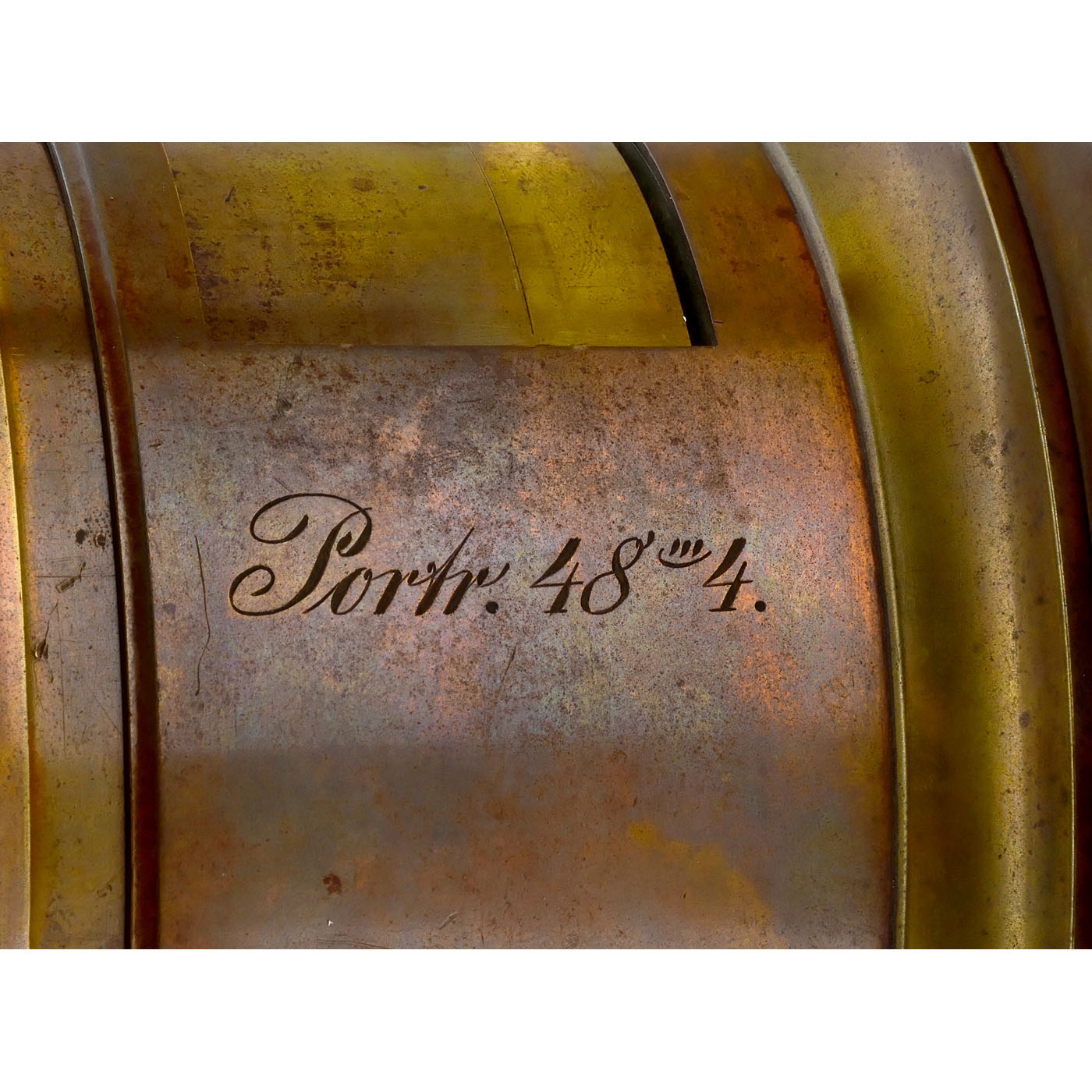

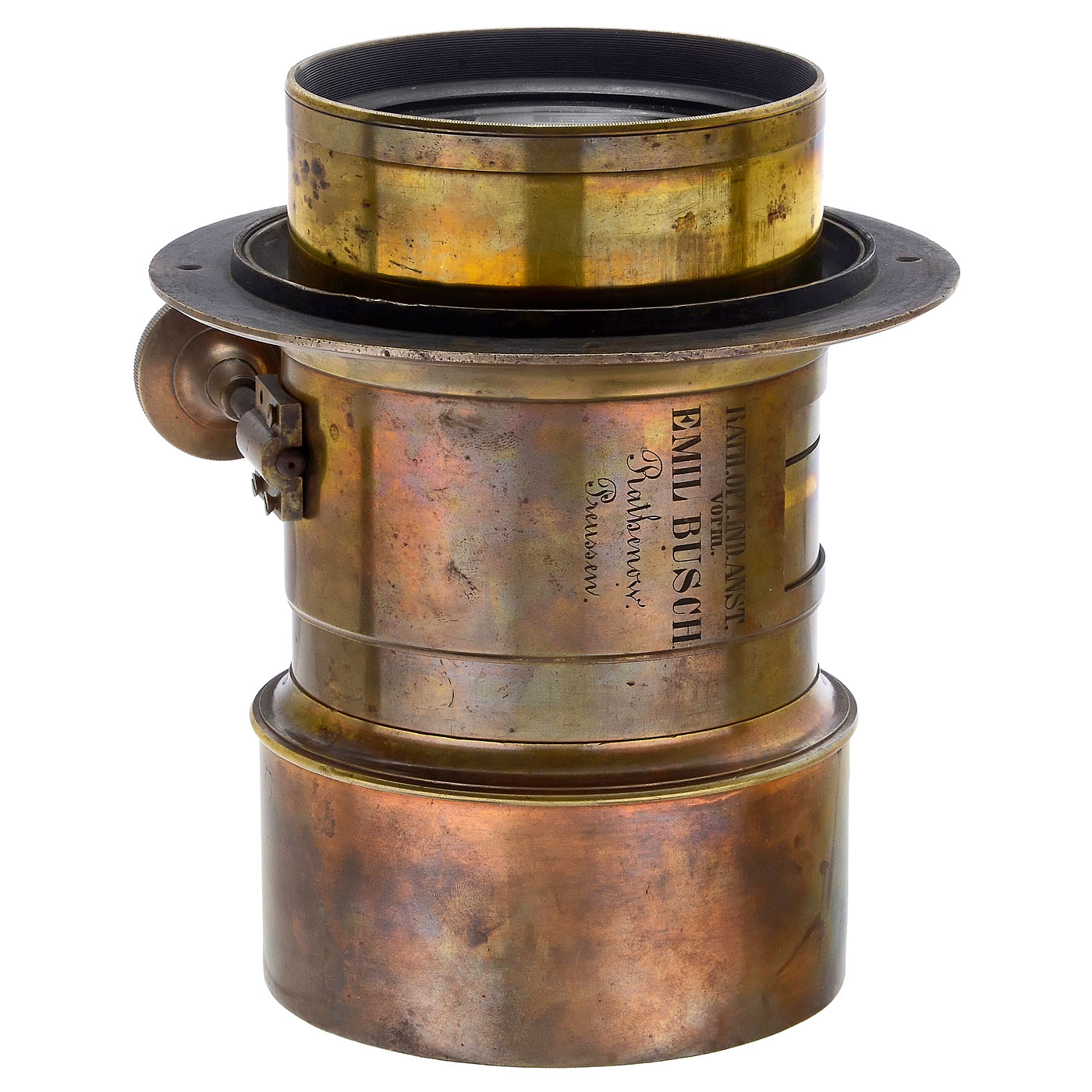

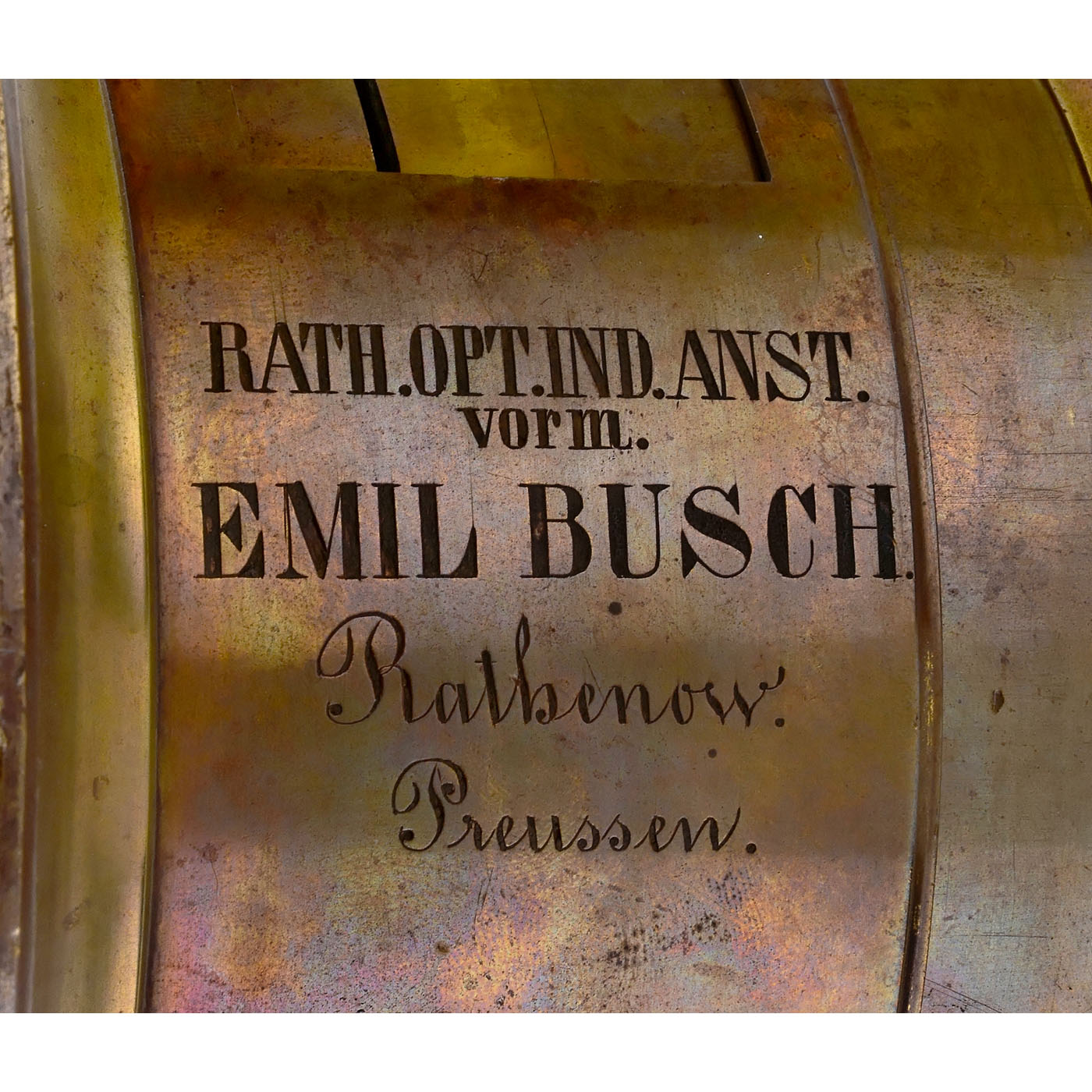

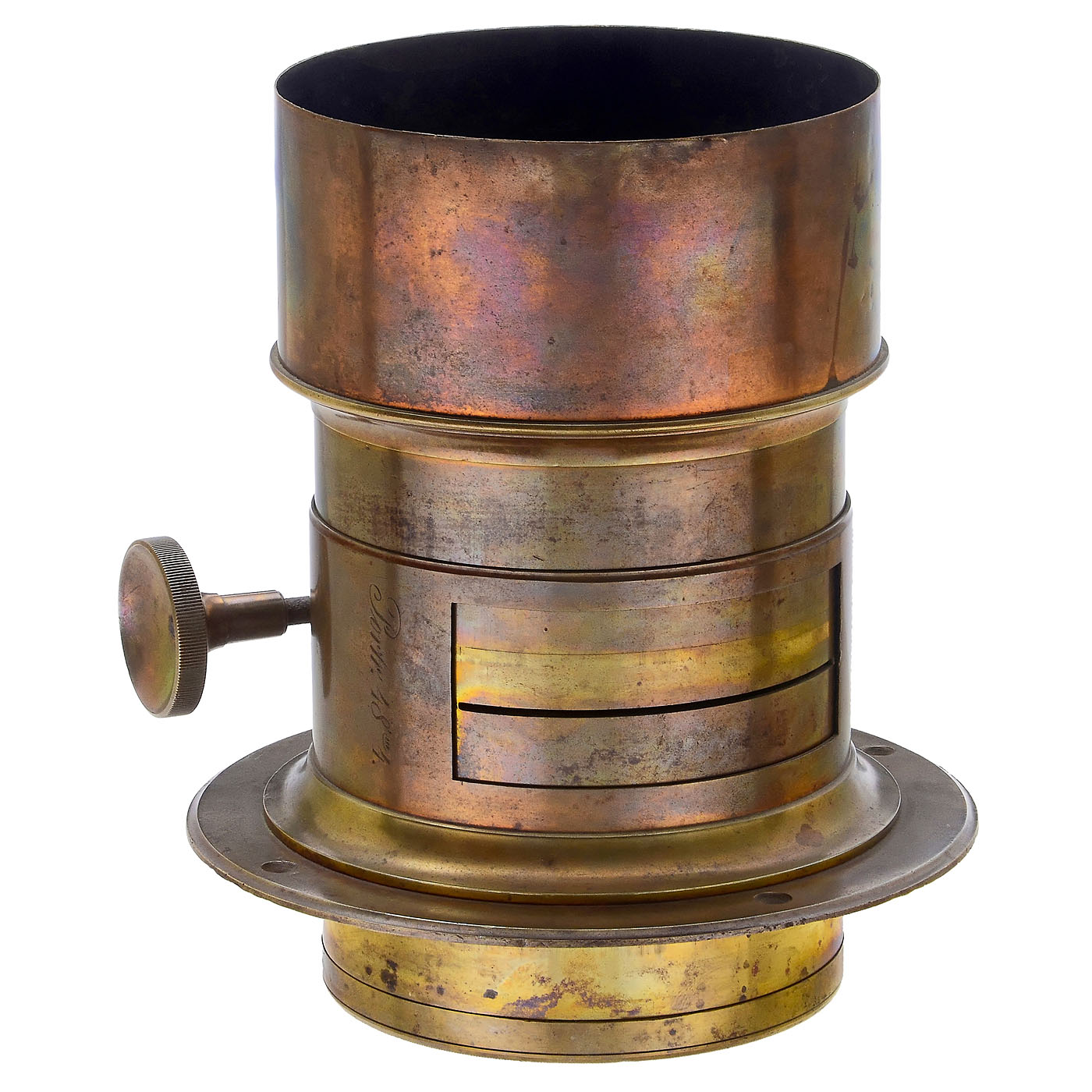

Rath. Opt. Ind. Anst. formerly Emil Busch, Rathenow, Prussia. Engraved on the side "Portr. 48 4." (indicates the lens diameter in Parisian lines). Diameter of the lenses, glass only, 104 mm. Focal length is 260 mm. If the later-added aperture mount is removed, this would be 2.5/260 mm. The slot width for apertures is 90 mm. The internal diameter is limited to 75 mm, which would be 3.4/260 mm. Height with lens hood: 21.5 cm, all threads are working. There are some marks on the outermost edge of the front lens. Under point light, the interior is good except for some small scratches that are insignificant for practical use. Distance between rear element and focusing screen at infinity: approx. 15 cm, weight with screw ring 4.16 kg, Extremely rare
