Heyde Photogrammetric Camera for Alpine Regions, 1926 onwards

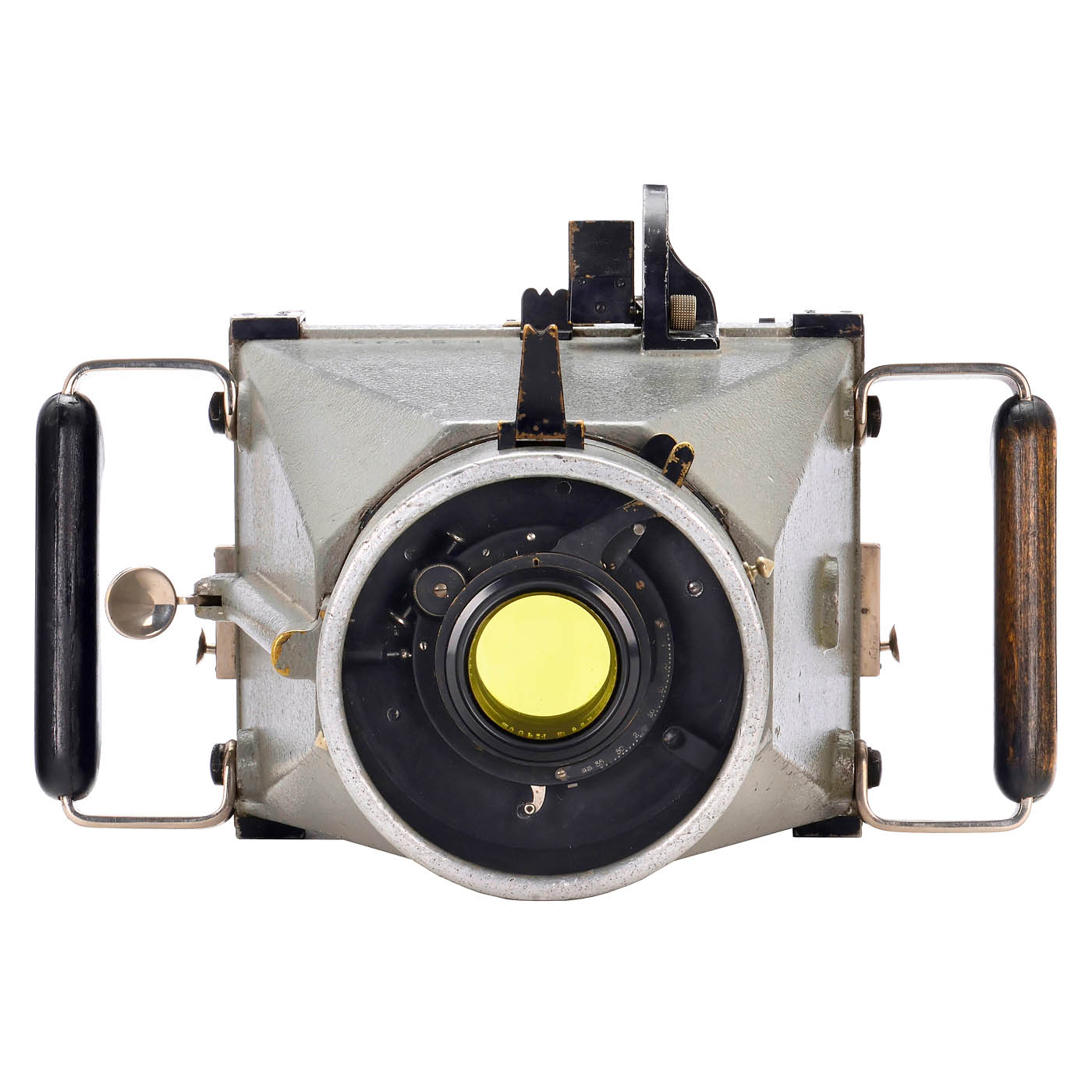

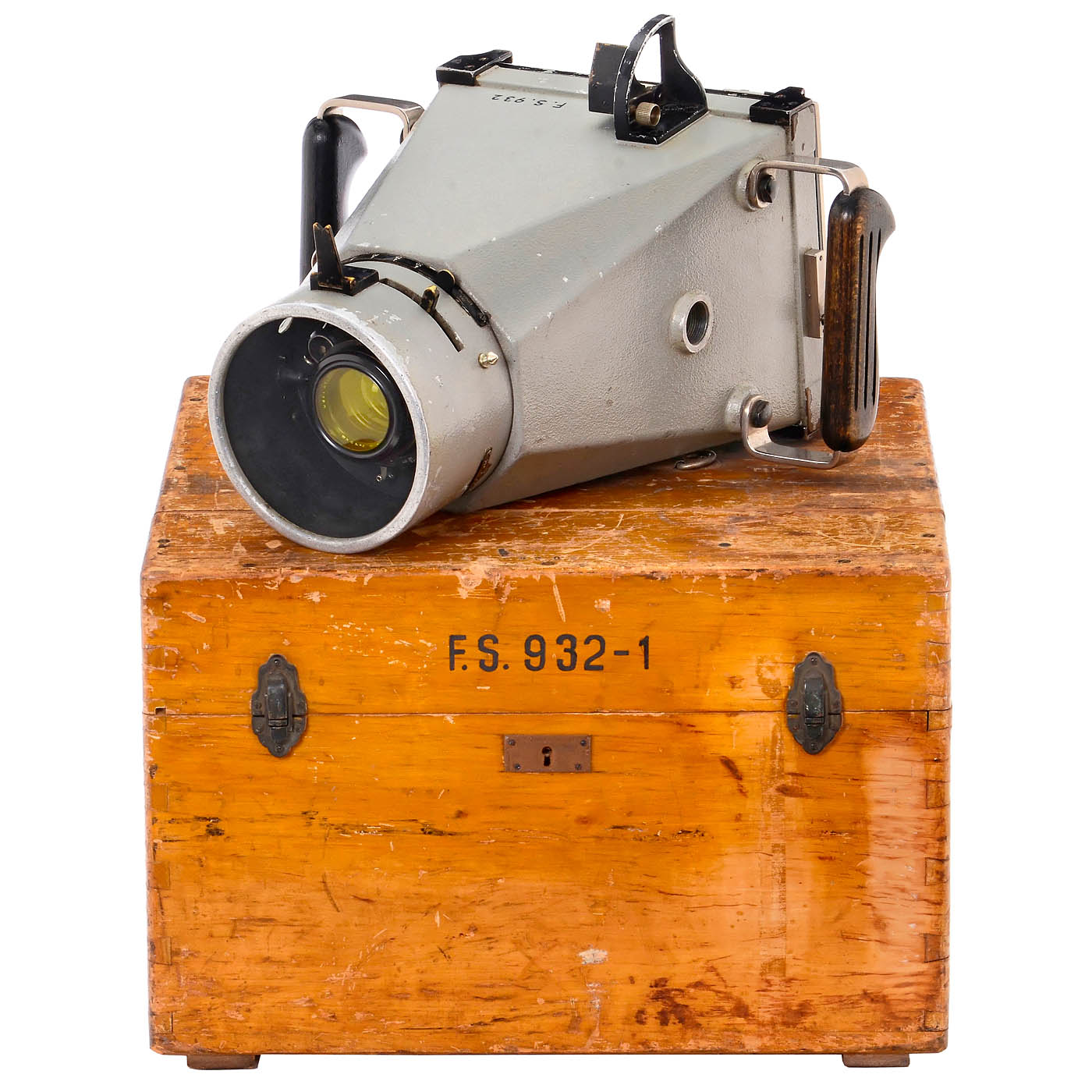

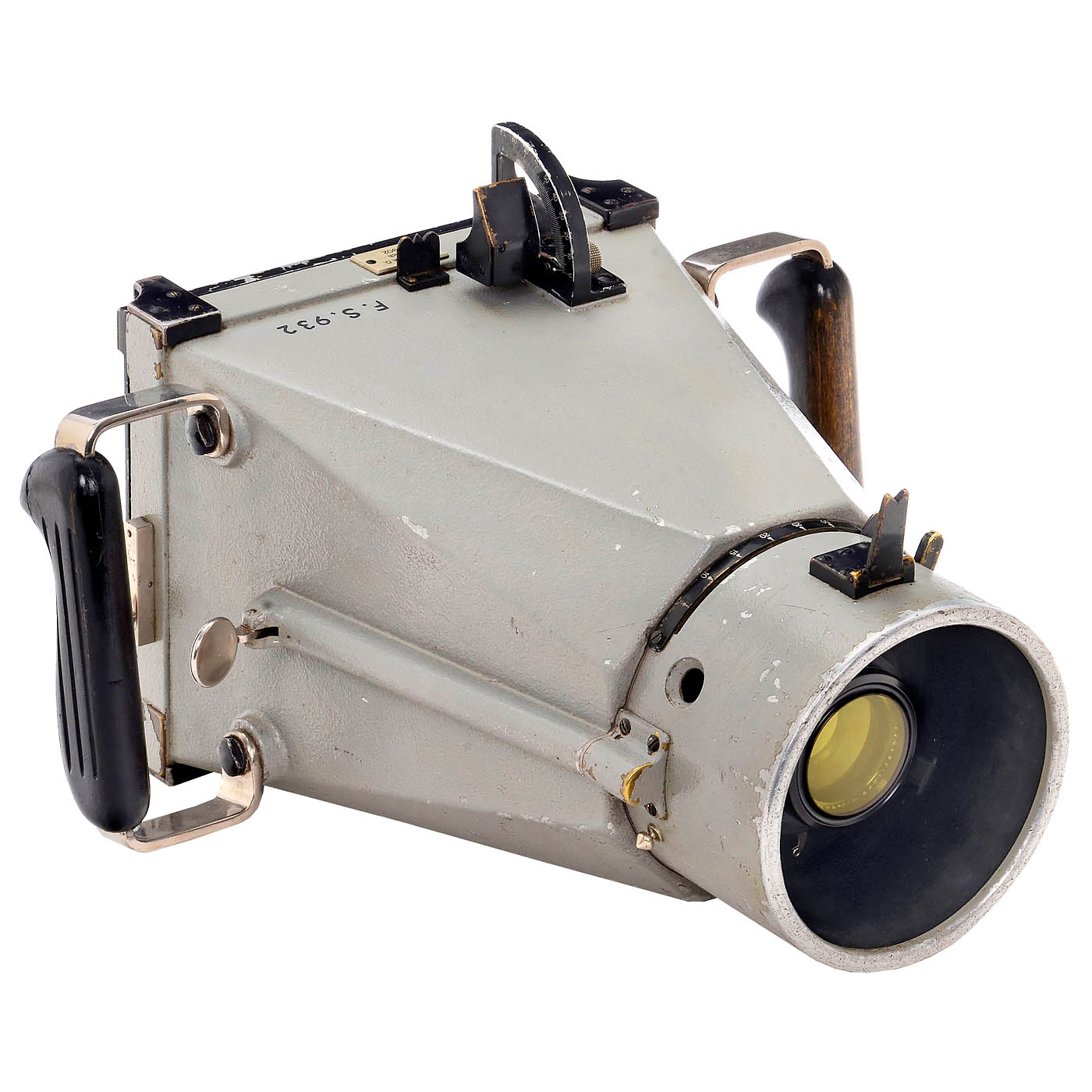

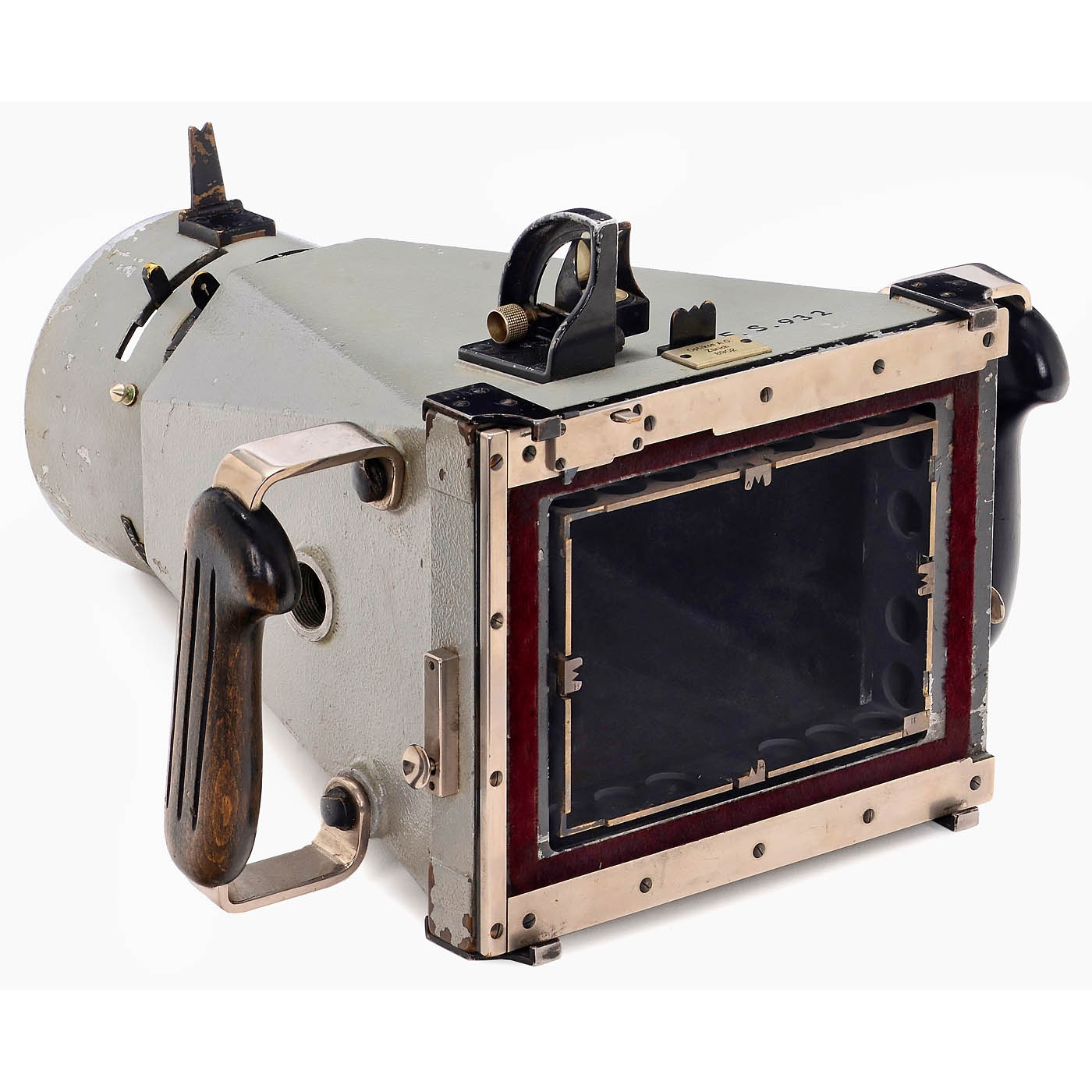

Gustav Heyde GmbH, Dresden – Aerotopograph GmbH, Dresden, for Optikon AG, Zurich. Robust photogrammetric camera no. 8902 based on an aerial camera, for 13 x 18 cm plates, exceptional lens by Carl Zeiss Jena with the Double Protar 6.3/26 cm consisting of Protarlinse 480 mm no. 317585 and Protarlinse 480 mm no. 317xxx with yellow filter in a special mount, glass clean under point light, compound shutter is open and non-functional, the camera has the usual Protar aperture scale in millimeters. After inserting a cassette into the back and removing the slide, pressing the side locking levers causes the entire inner measuring mark frame block (inner format 115 x 166 mm) to spring against the photographic plate (for photogrammetry, there were negative plates with optically flat surfaces). The reseau-markings are centrally positioned, each perforated with R (right), L (left), V (front), and H (back). Shutter release (non-functional) is achieved by operating a lever on the right handgrip. Includes focusing screen back. – Note: The Double Protar was the only lens that, thanks to its mere four glass-air surfaces, was free of stray light and virtually distortion-free for this angle of view, even under the most challenging lighting conditions in the changing light of high mountains. The camera was intended for alpine expeditions; the mounting points for elevation suspension are located on the side of the camera, their angles had to be noted manually. Includes transport case. This is the only known measuring camera with the Double Protar lens.
