Mars Spaceflight Lens 2/200 mm with Optical Light Amplifier

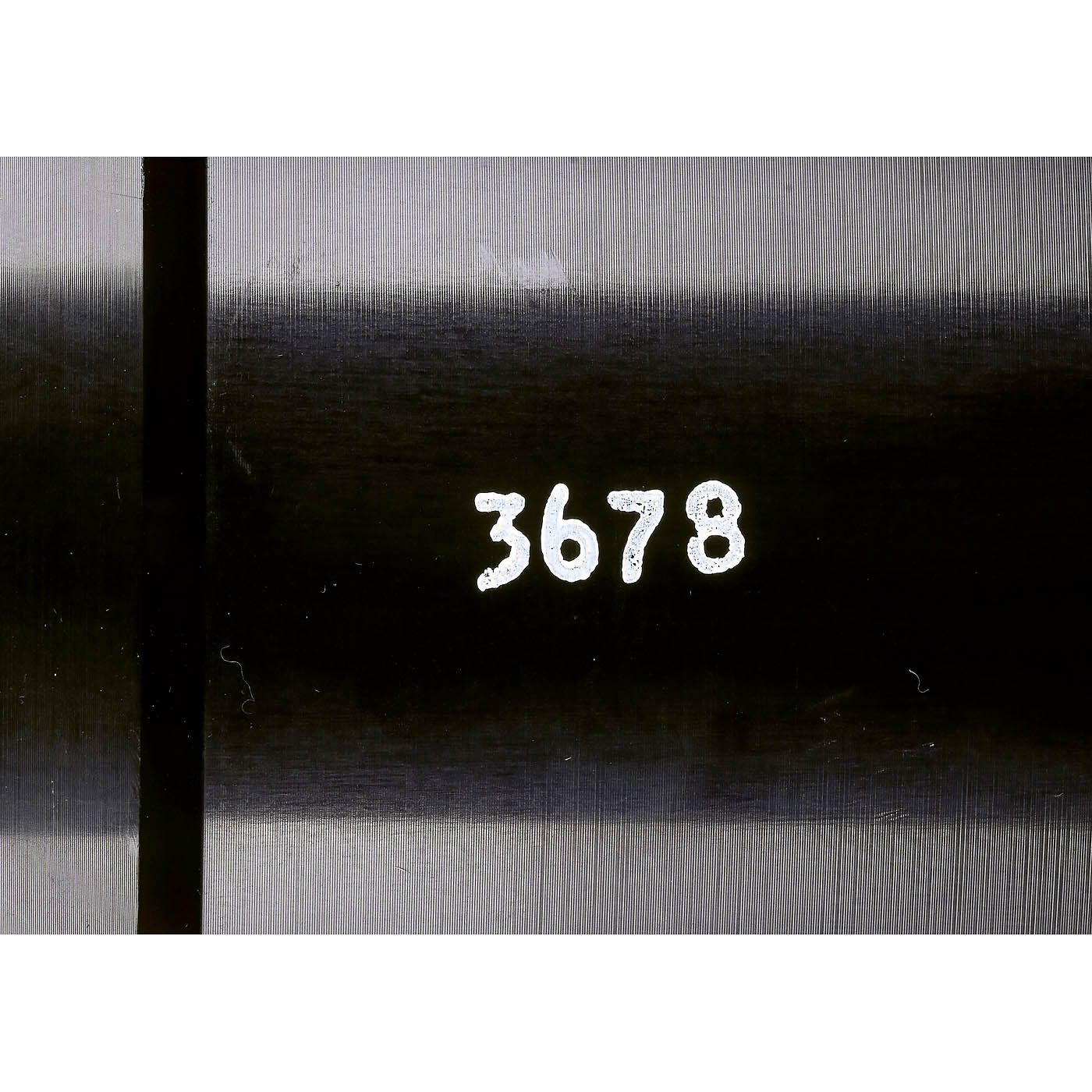

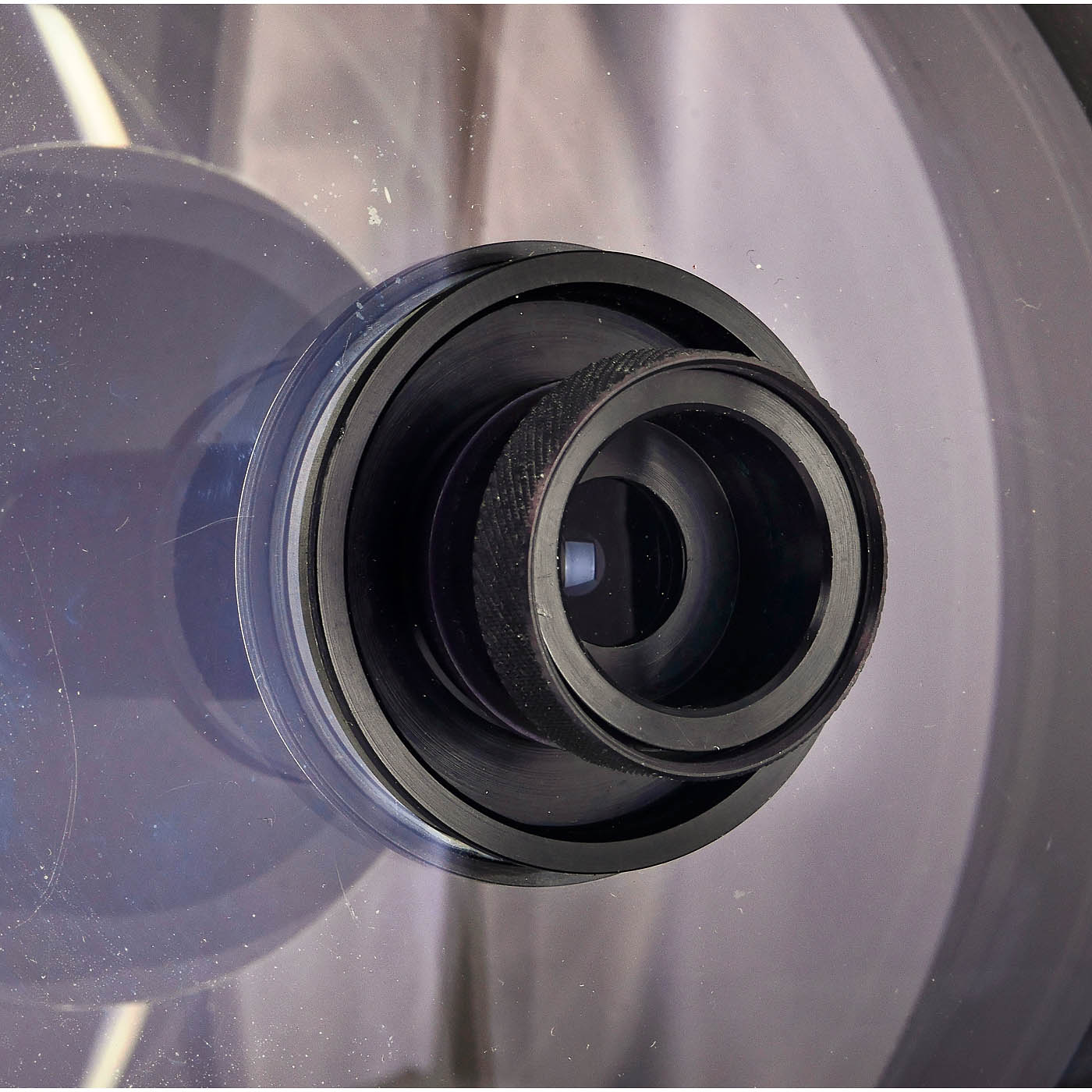

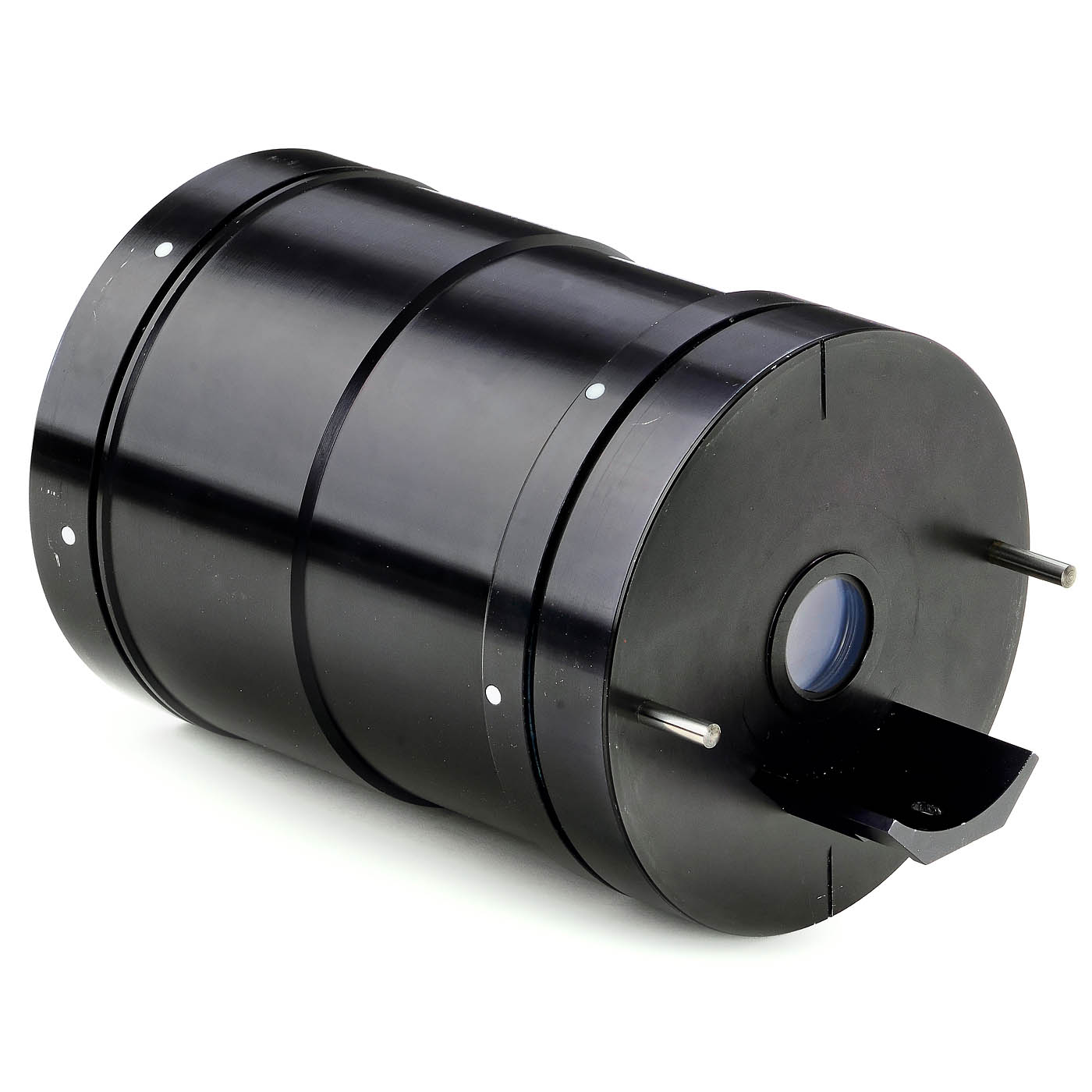

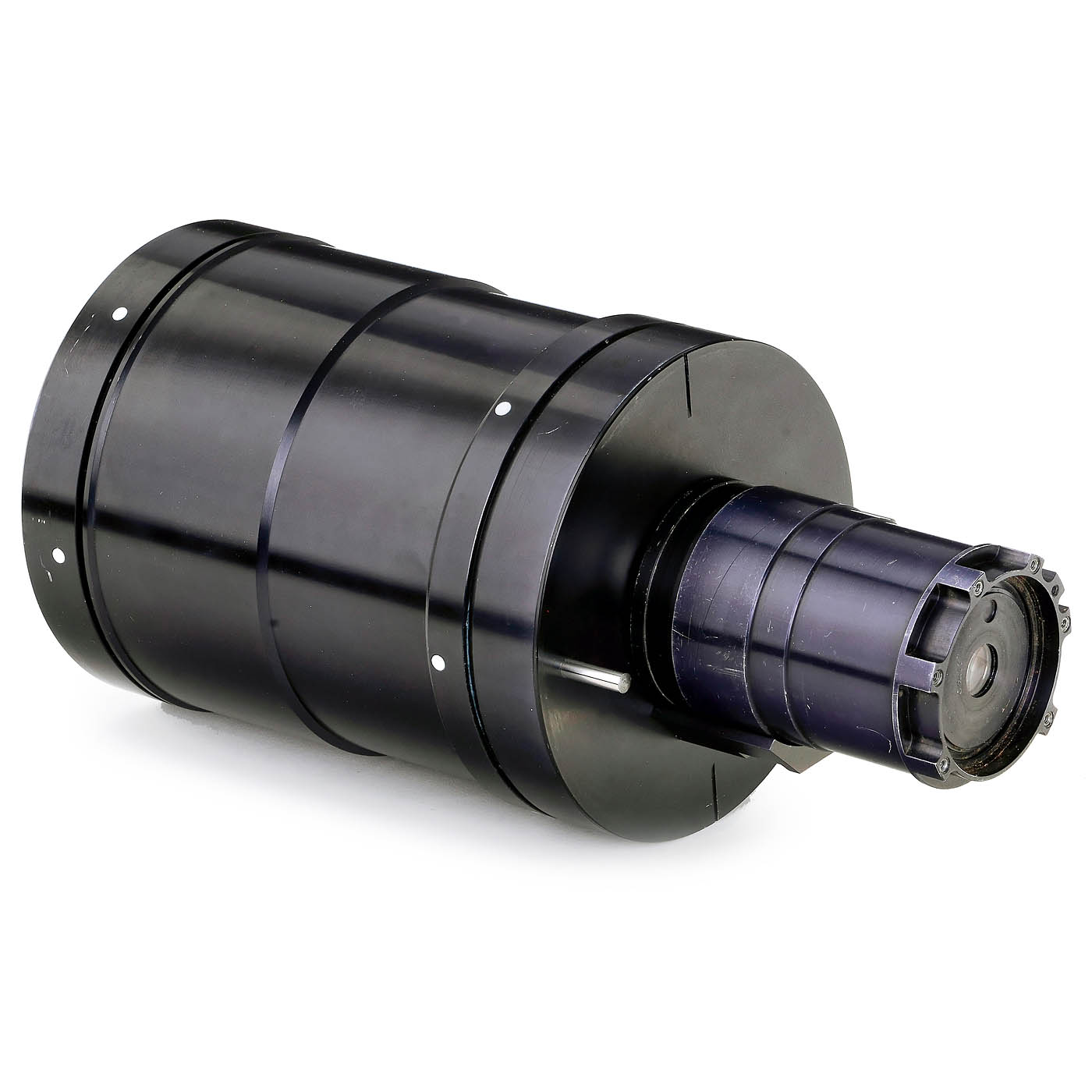

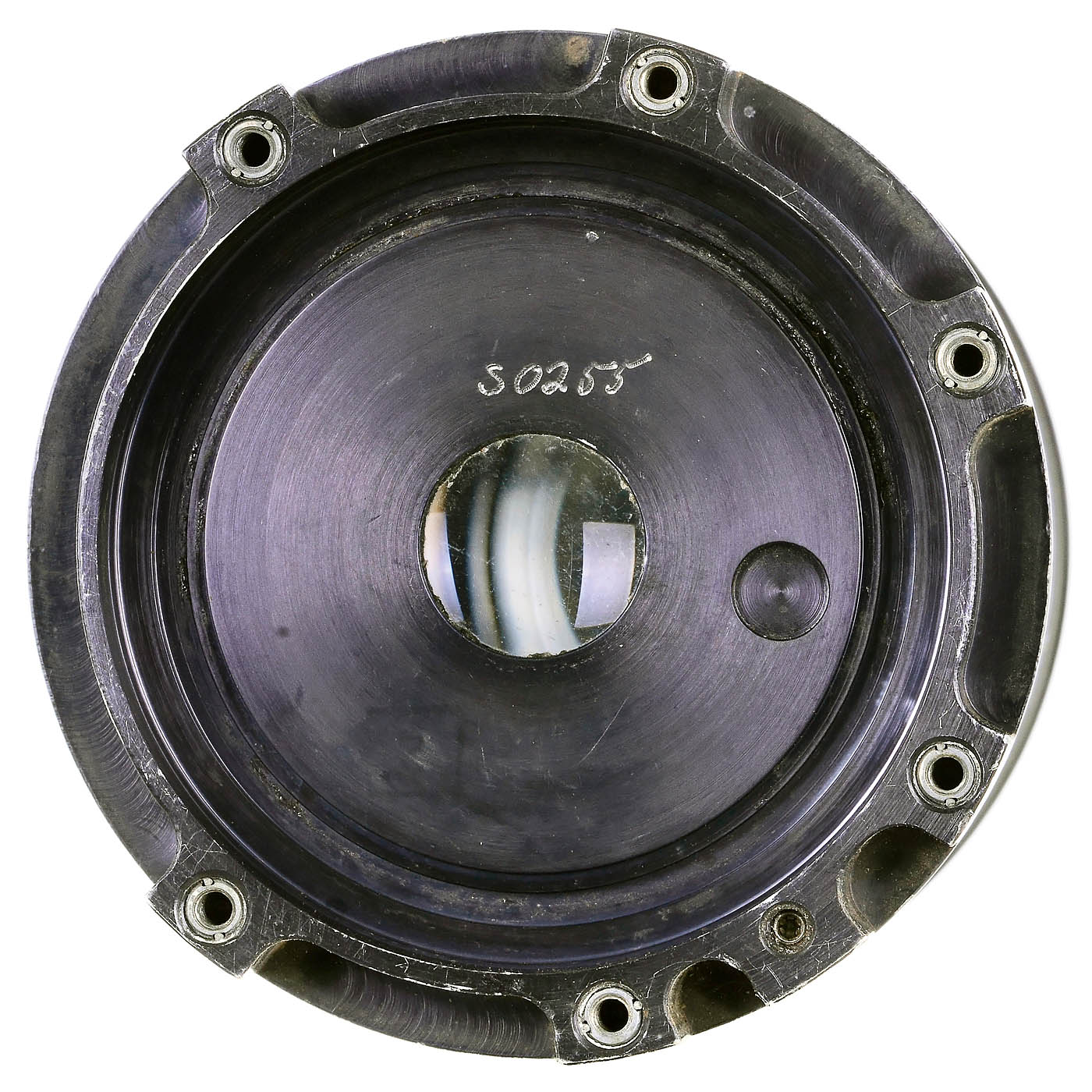

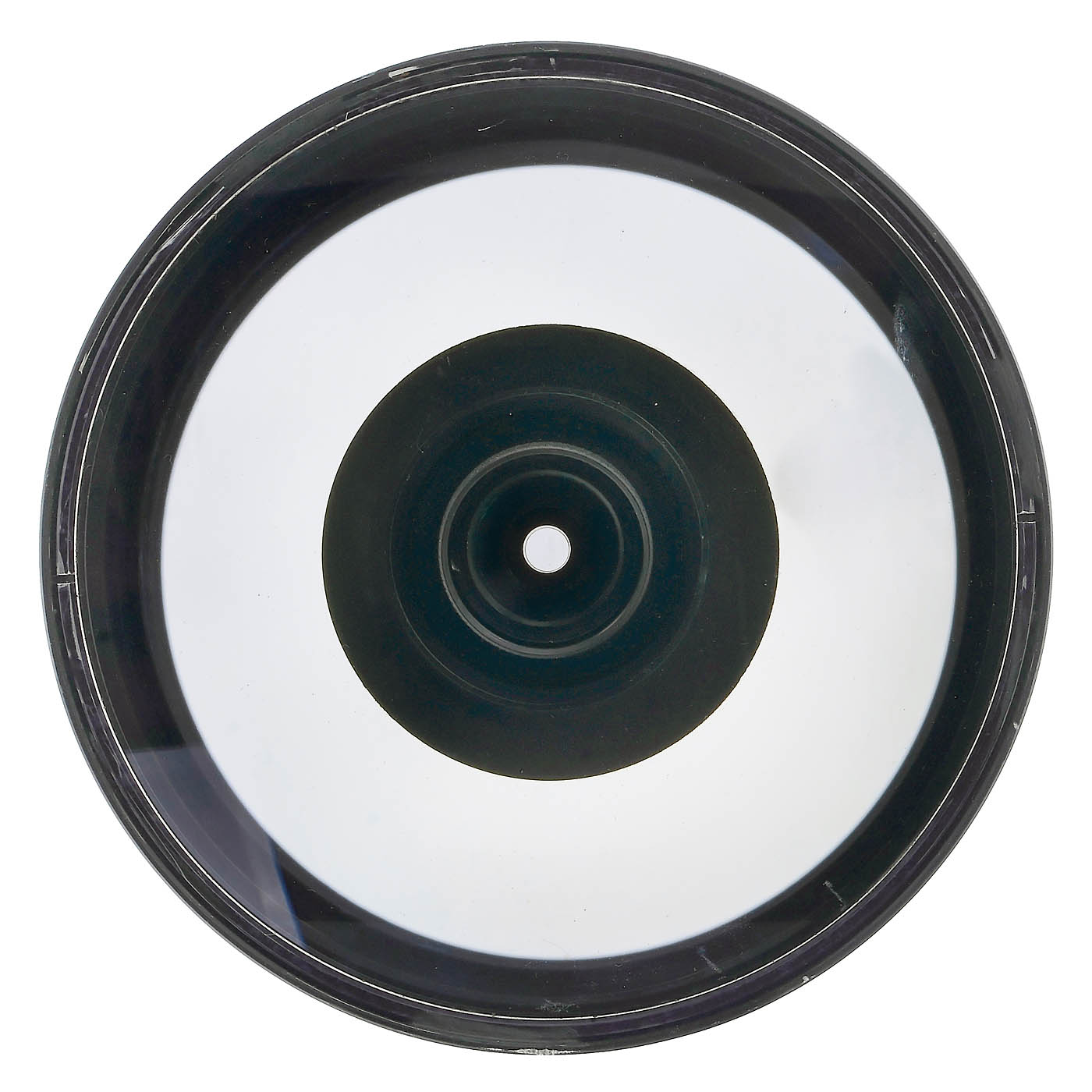

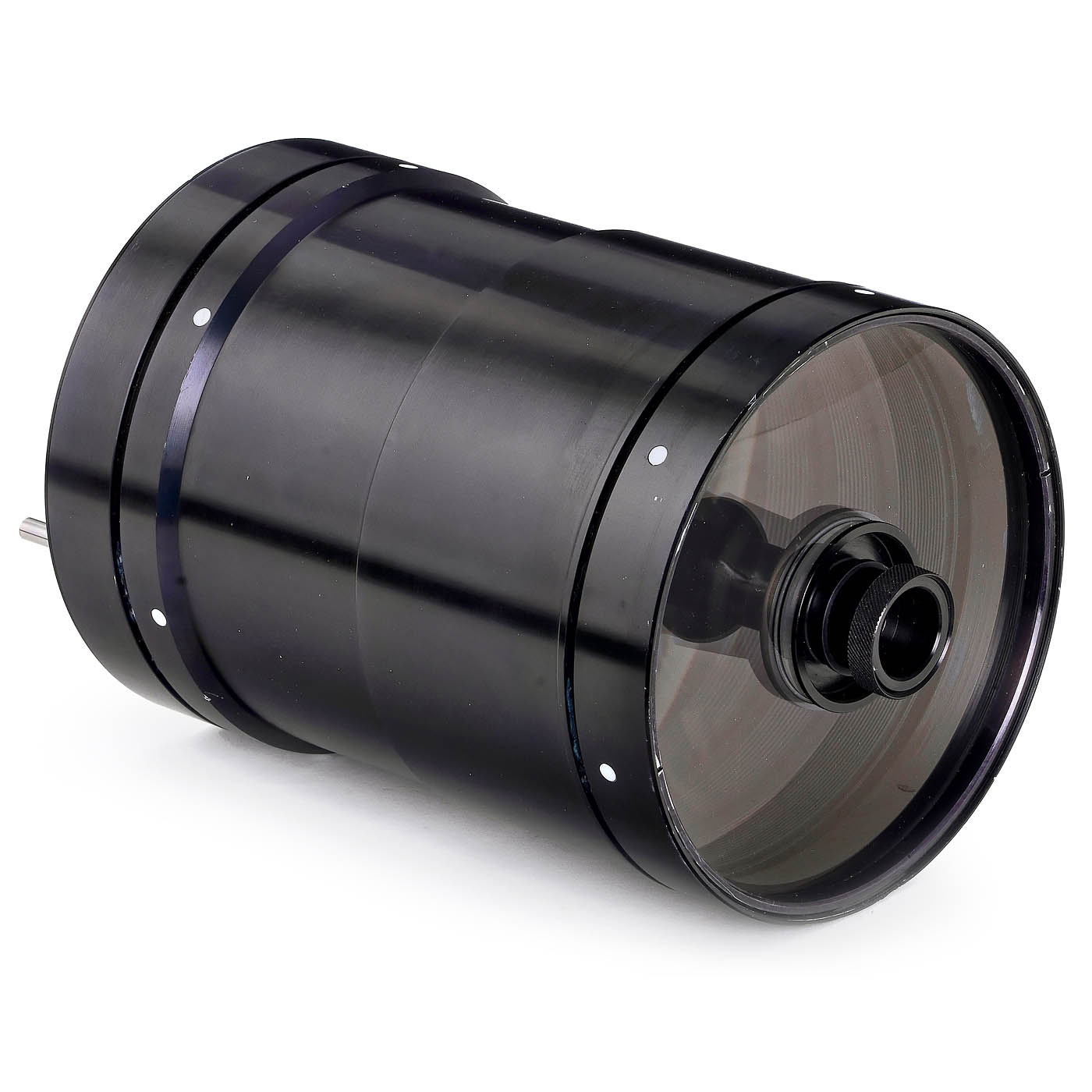

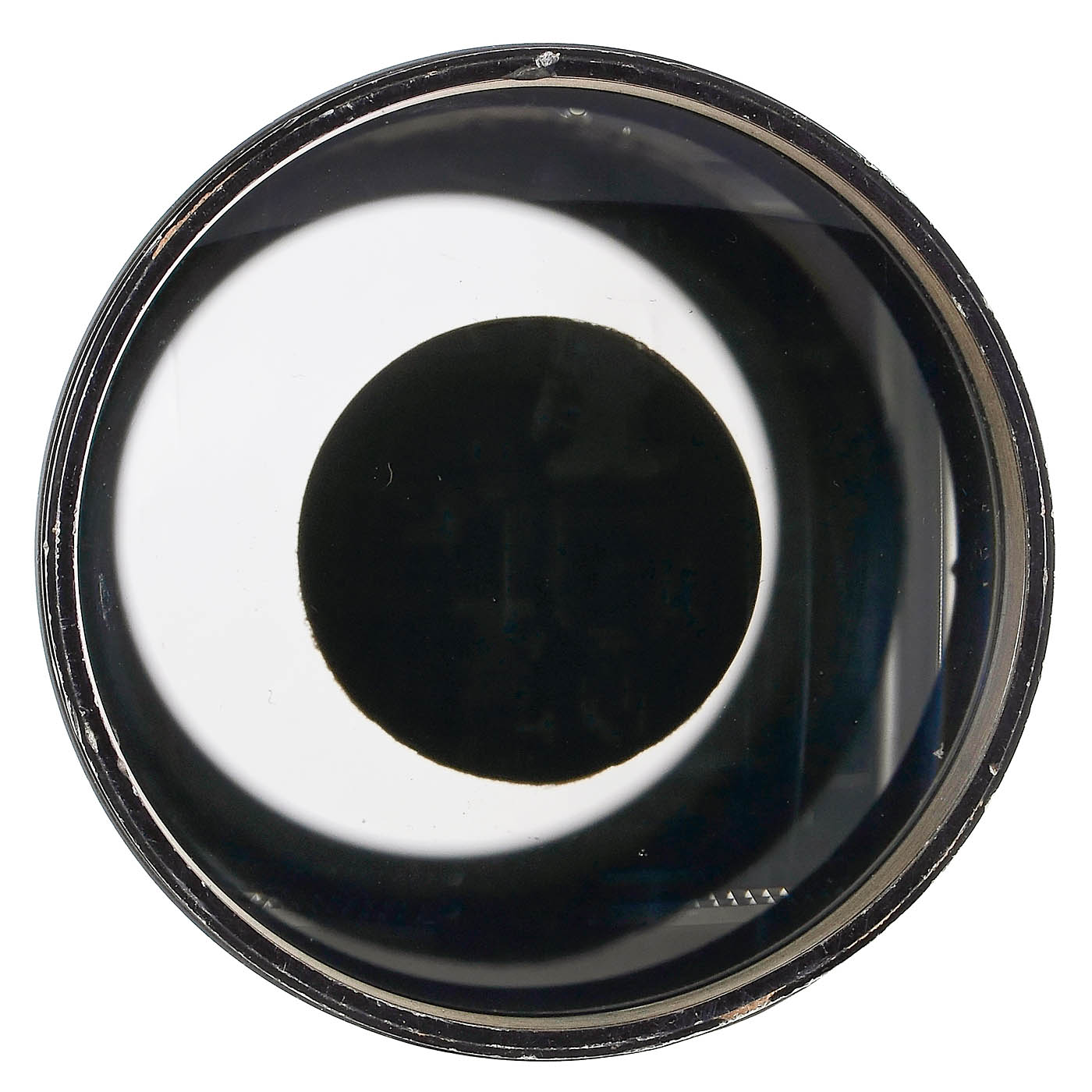

USSR. Lightweight mirror lens no. 3678, weighing 2.88 kg, designed for spaceflight conditions of the 1980s, without any engraving. Image circle diameter approx. 26 mm, distance from sensor to last glass surface approx. 4 mm. High sharpness in the point image, free of chromatic aberration, even at close range. Diameter of the front lens only: 142 mm, containing a 47.5 mm cover with an internal auxiliary lens of 12.5 mm diameter. This auxiliary lens does not have a focal length; it serves to increase light sensitivity. Length with mounting back: 25 cm. A loose additional mirror lens of approx. 1.4/5 cm fits rotationally symmetrically into this quarter-shell mount. This lens alone (front lens only: approx. 65 mm, cover approx. 30 mm) has an image circle of approx. 15 mm, its distance to infinity is approx. 1–2 mm, point image sharpness is good and without chromatic aberration. It is assumed that this was a system lens – the 2/200 mm alone for photographing a very dark object, where the surrounding starlight could brighten the shadows as background noise thanks to the auxiliary lens (for example, the albedo of Phobos is only 4%, and presumably a front aperture was intended for dimming this auxiliary lens; a thread for this is present). The additional interchangeable mirror lens would have served for spectral imaging with its own sensor. The main lens is in very good condition (2-/2-), the auxiliary lens shows signs of use (3/3). Both lenses (strictly speaking three) clean under point light. Unknown lens of the Soviet Union, probably a prototype.
