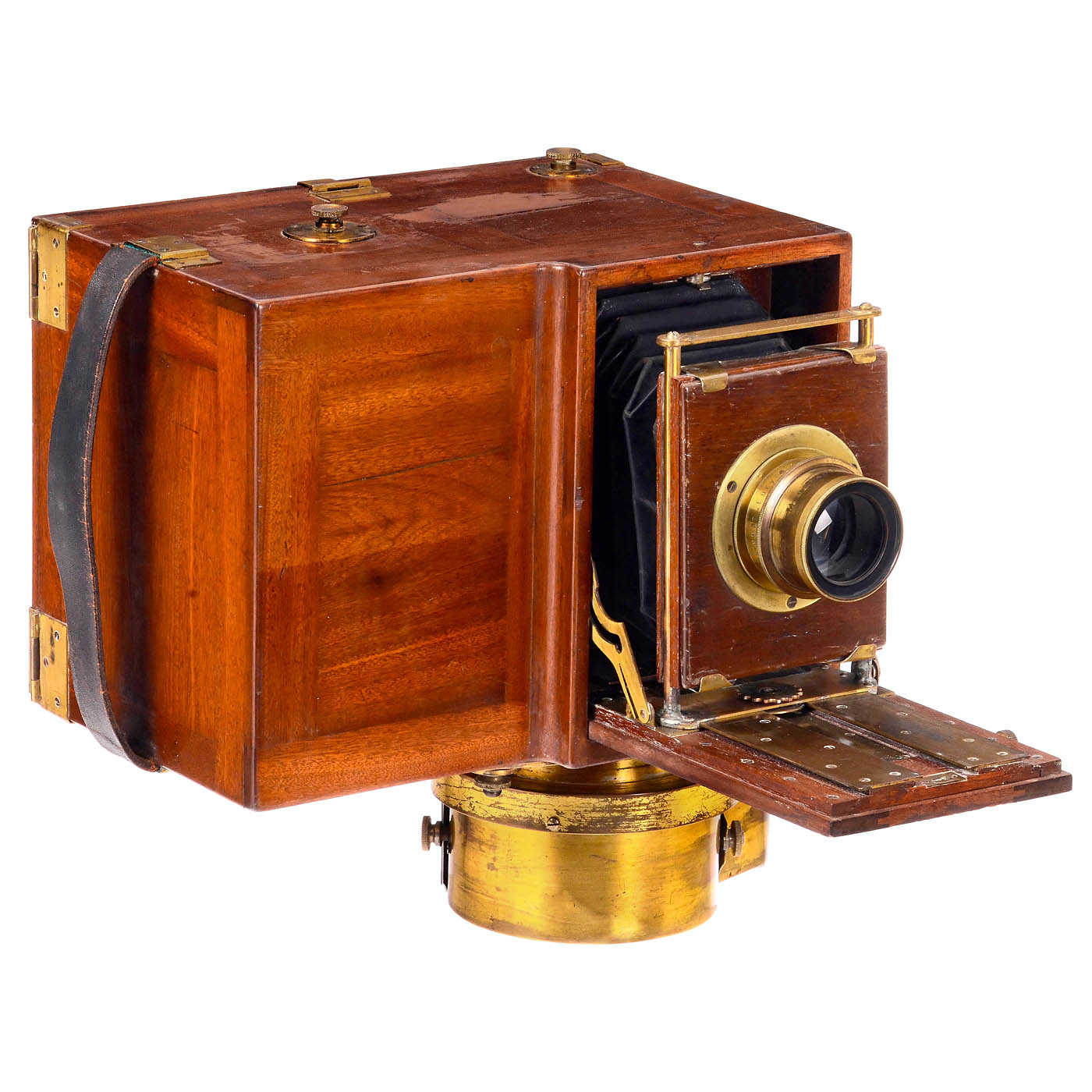

360-Degree Panoramic Camera, c. 1900

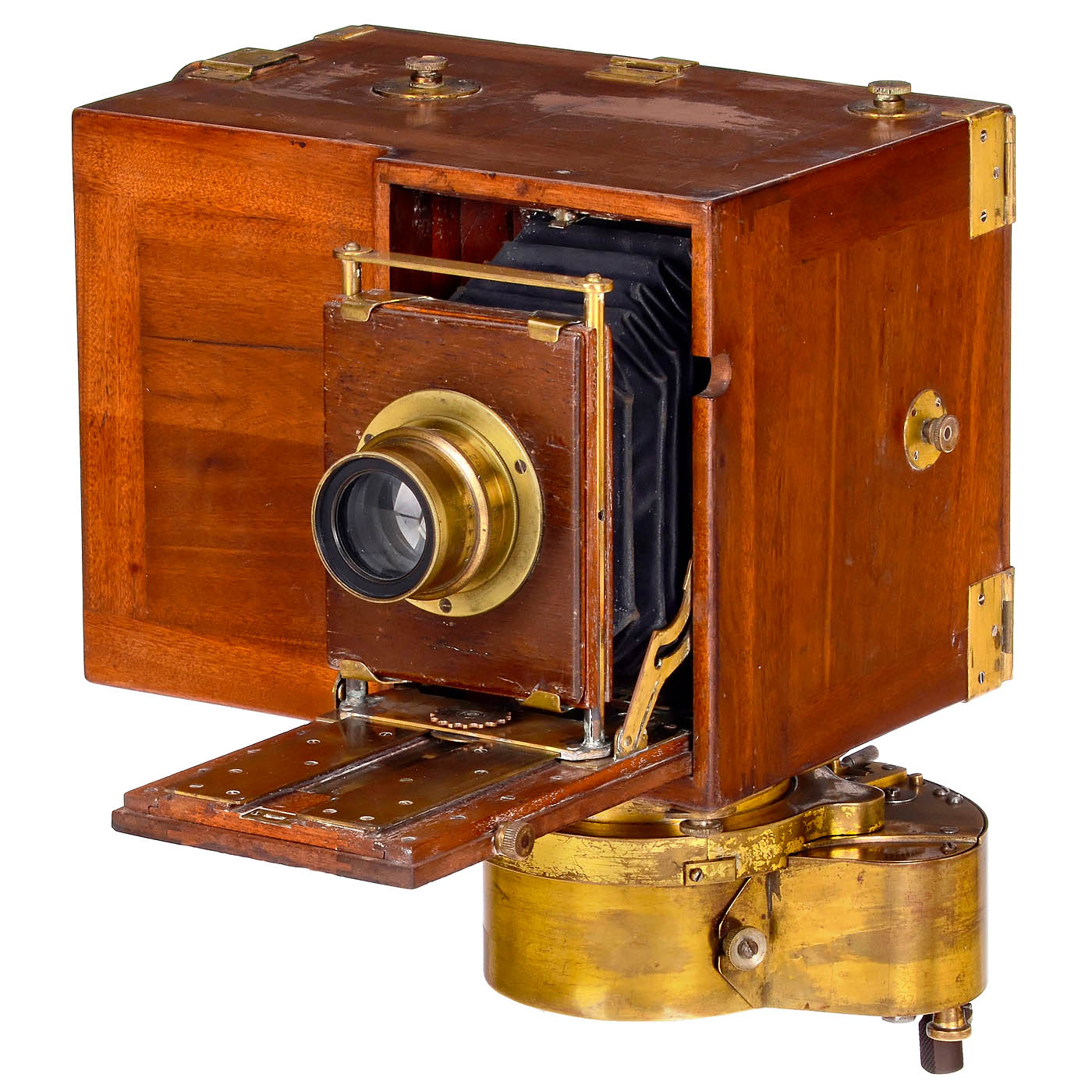

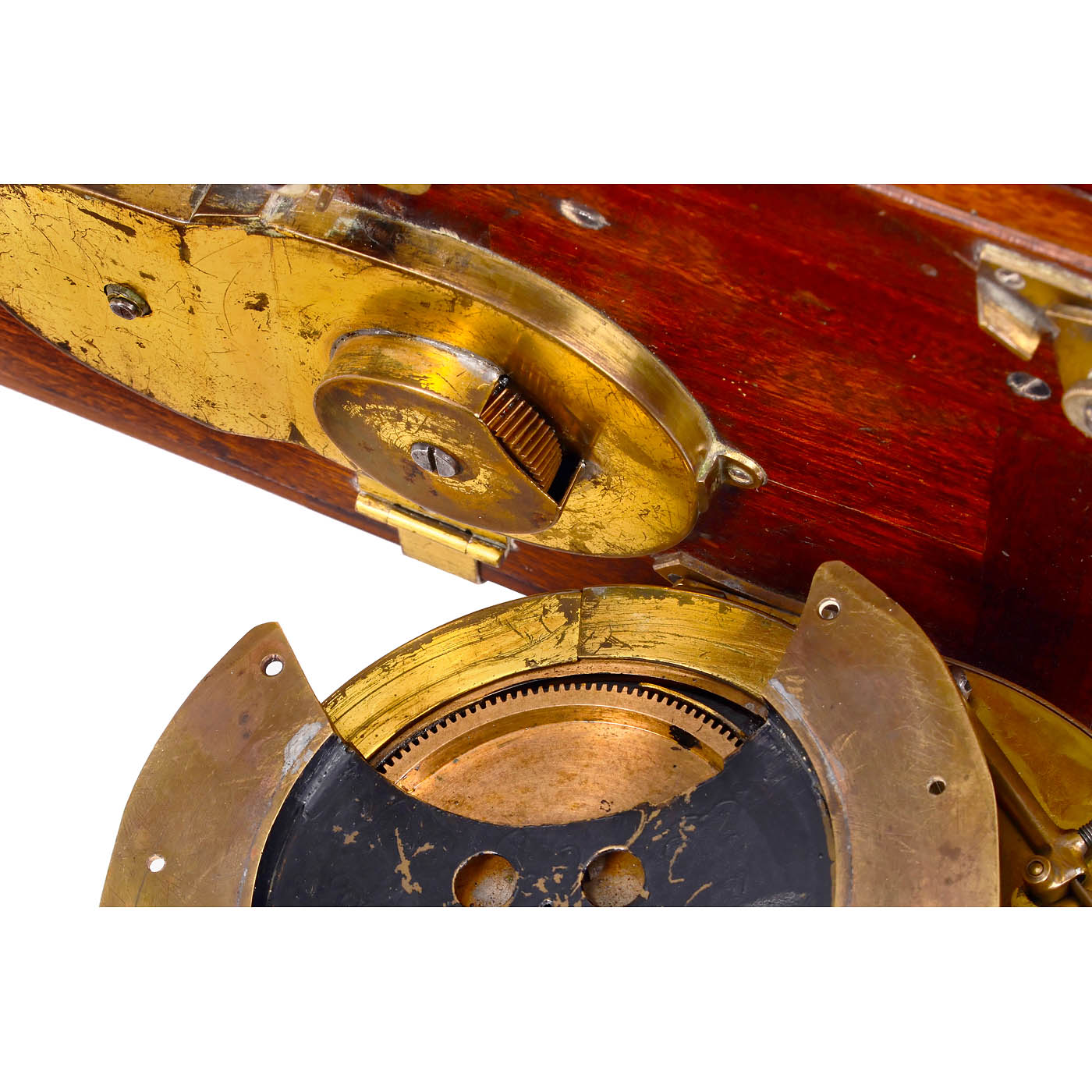

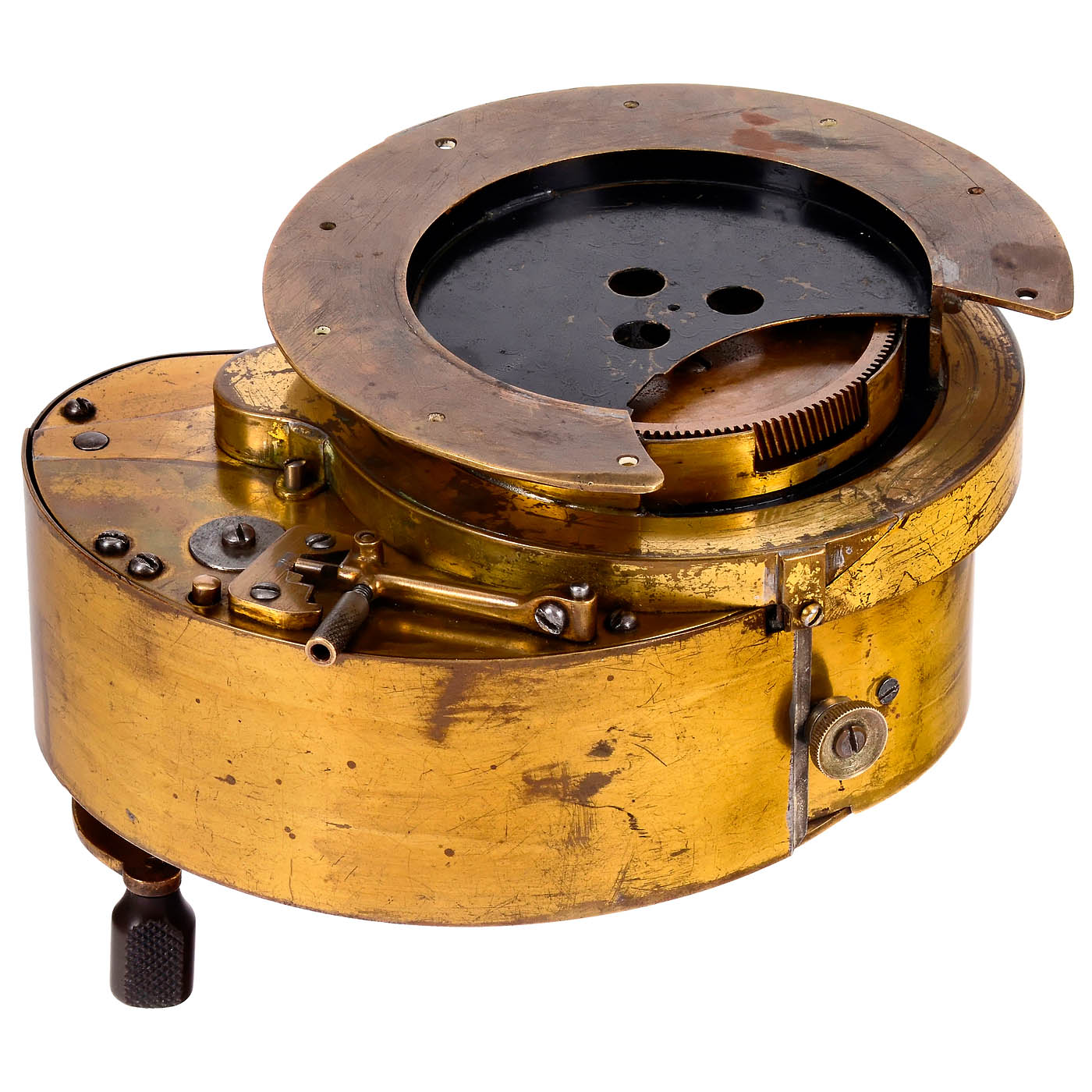

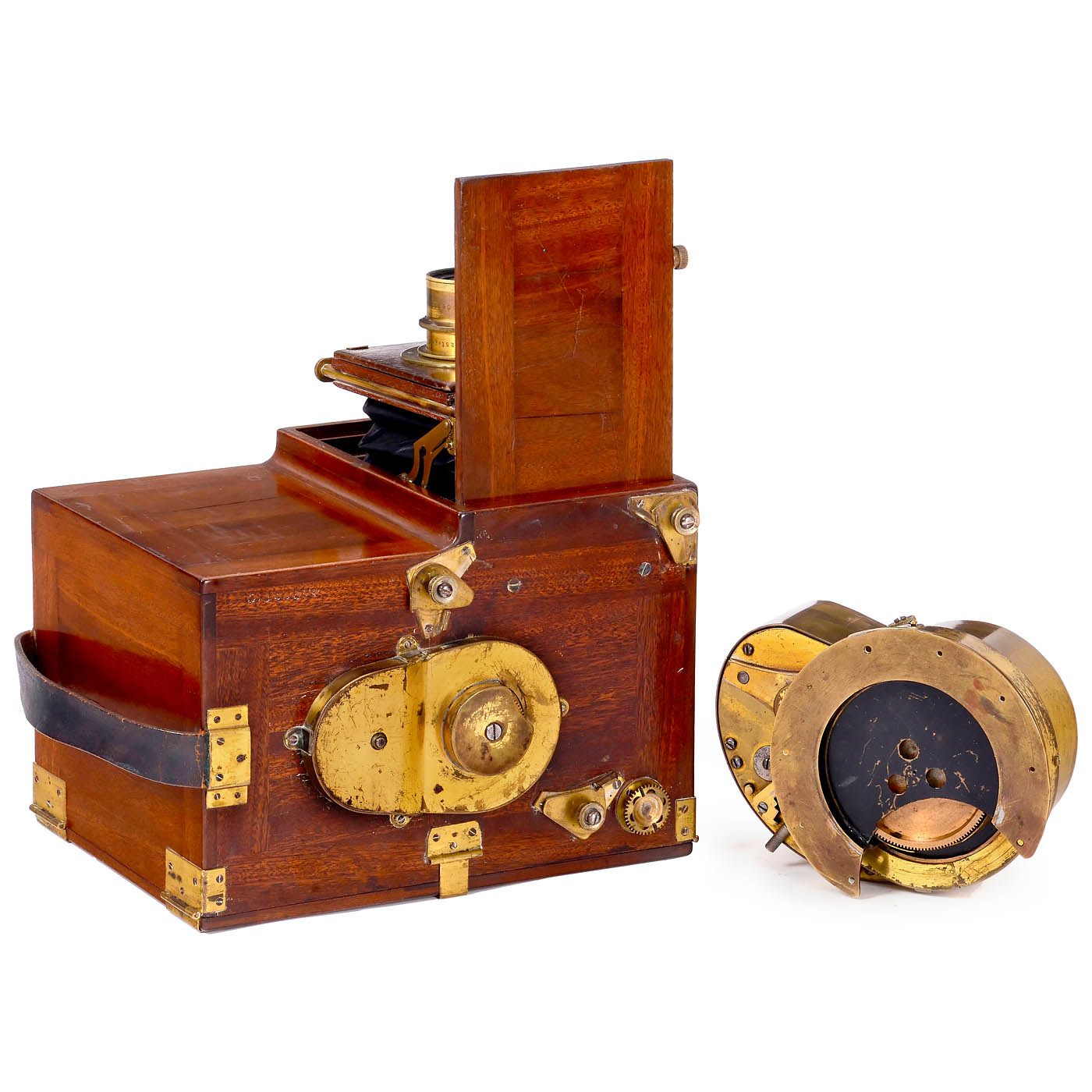

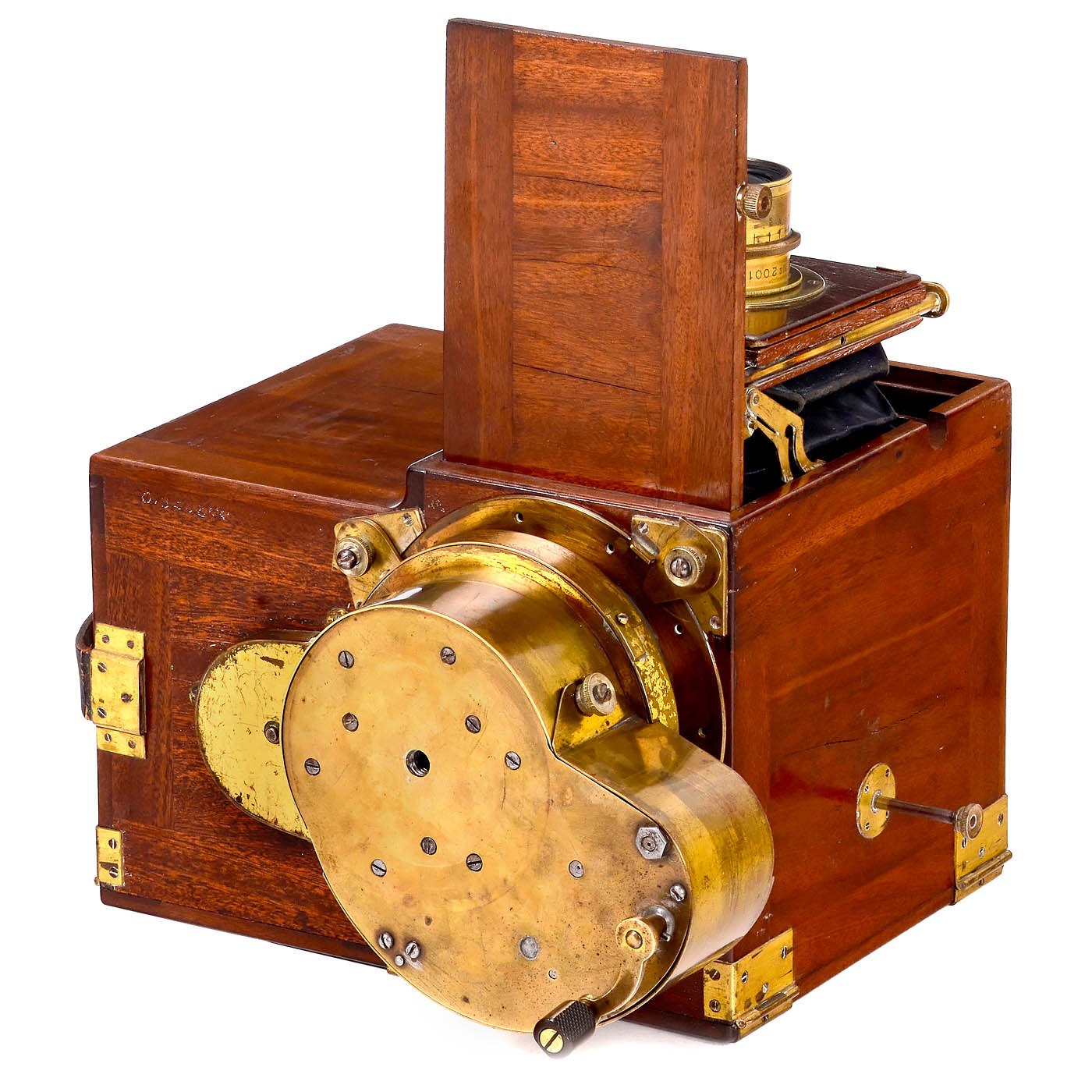

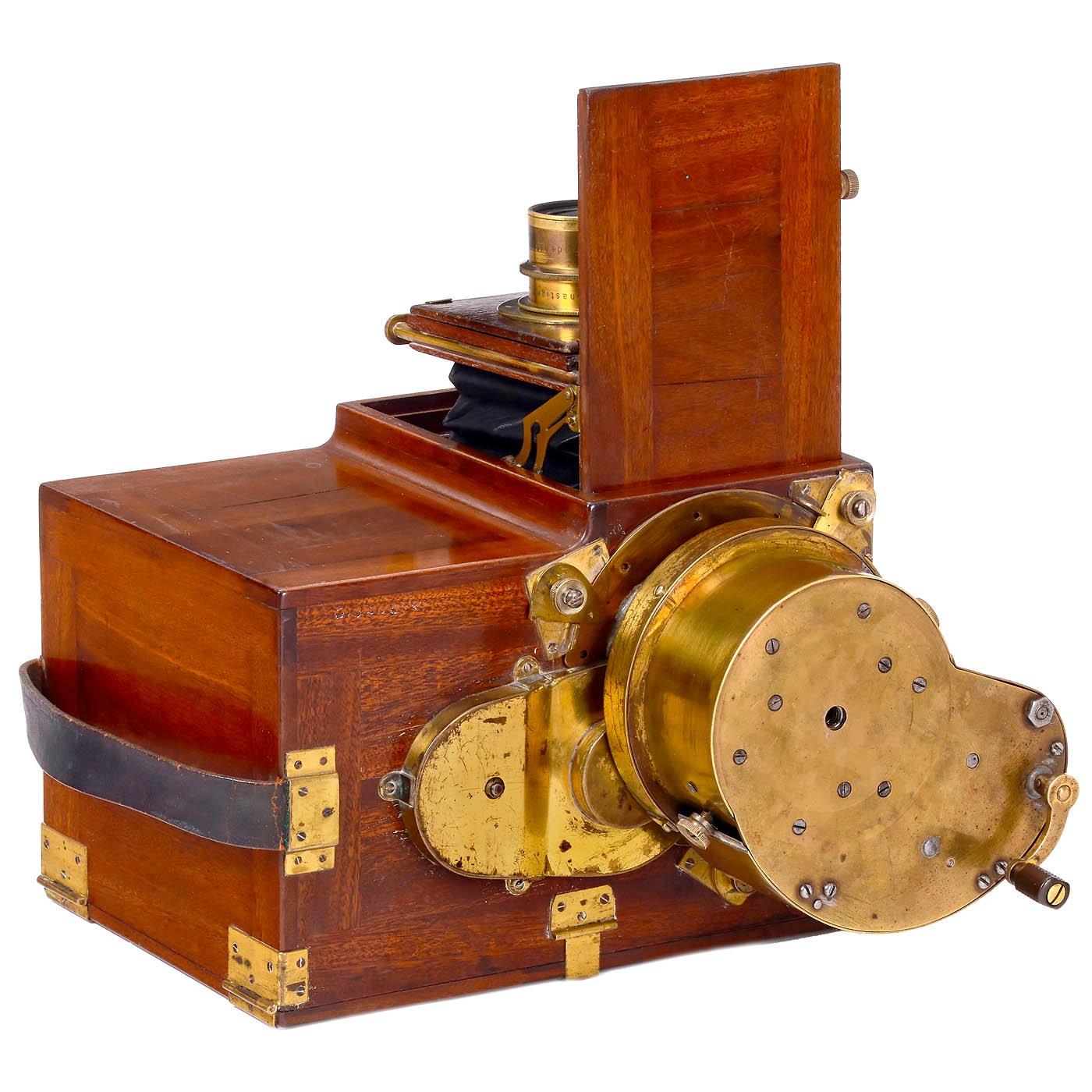

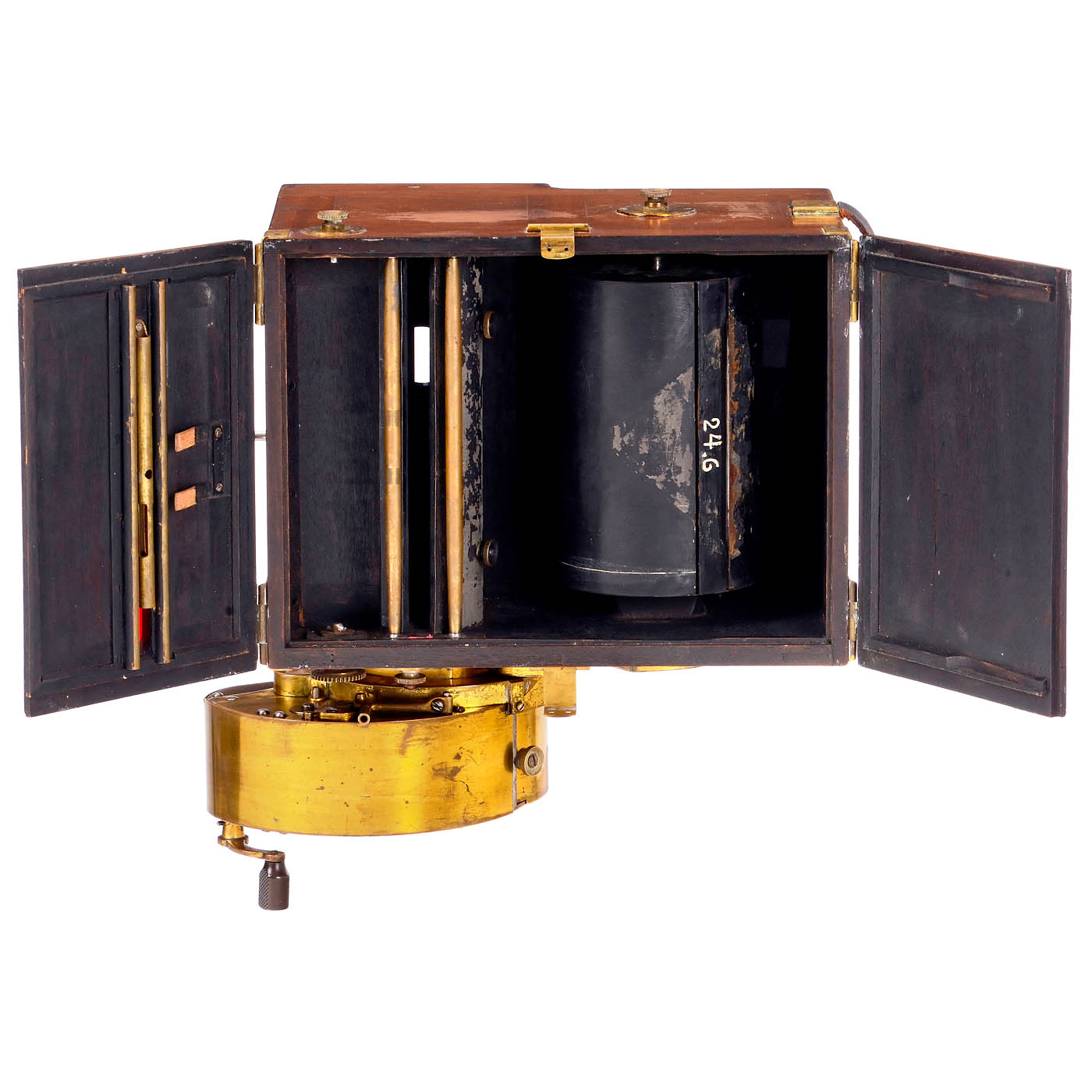

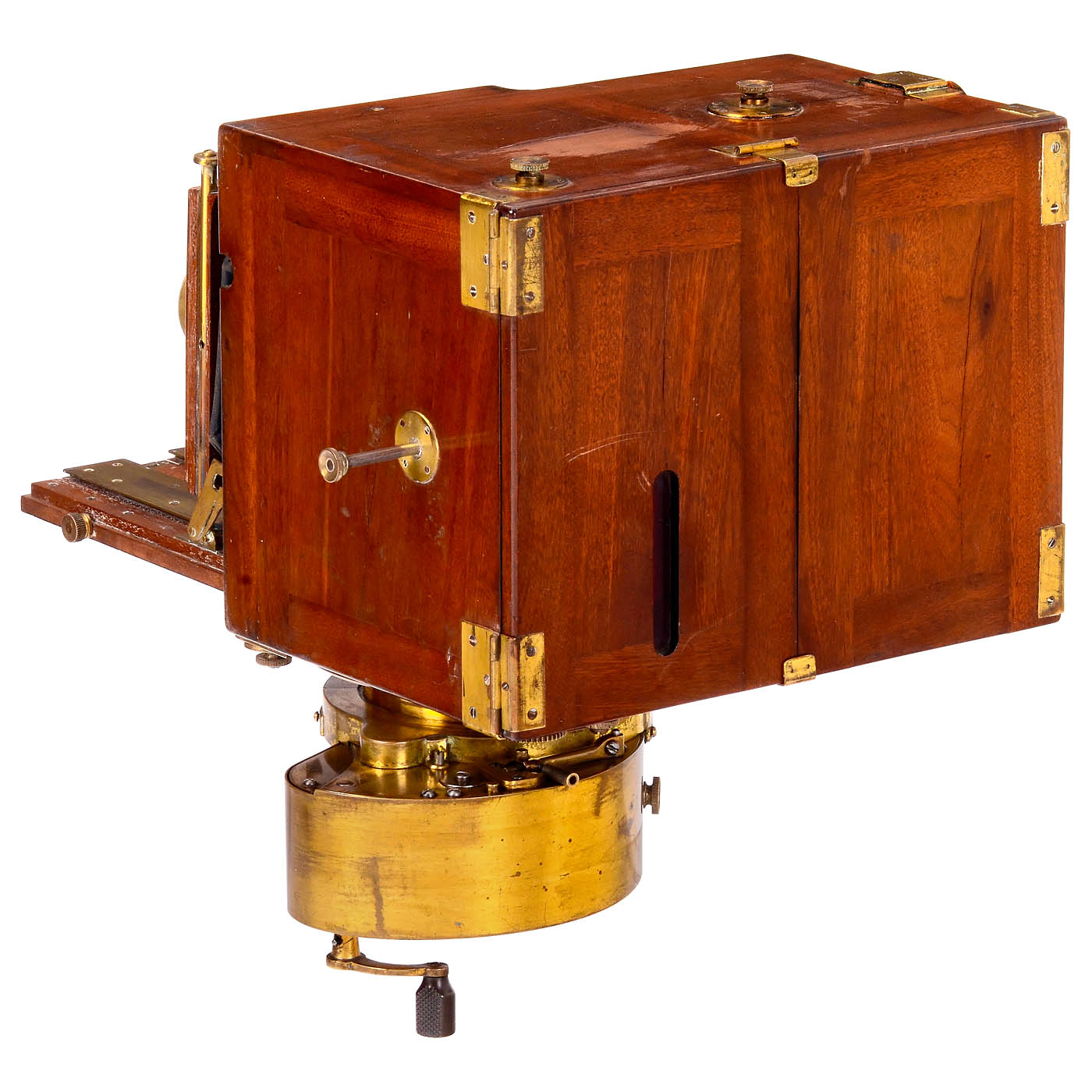

Martinus Pedersen, Hadsund, Denmark. Mahogany housing with a lower, removable spring-driven motor, running, for 112 rollfilm, 177.8 mm wide (on the market since 1898), exposure setting via a variable slit width from 17 mm to 0, also adjustable diagonally for exposure compensation in overly bright skies (wider at the top, narrower at the bottom), the longitudinal rollers to the left and right of the slit both widen in the middle (from 6.4 to 8 mm in diameter), an auxiliary slide protrudes from the side of the housing, which must be pulled out to open the slit. According to the inscription on the film drum (with film reel remnants from shots of this period), it was designed for a 24.6 cm lens, fitted with a Rodenstock Eurynar 6.8/24 cm no. 20015 from 1909, iris diaphragm up to f/44. Dimensions with motor (with crank): 35 x 28 x 36 cm. – Note: The lens board for this lens is of a different date, therefore the camera could be several years earlier, at the earliest from 1898 onwards, and thus designed and tested before other known panoramic cameras. This is the only known example of this camera.
