Philipp Graff Camera, c. 1848

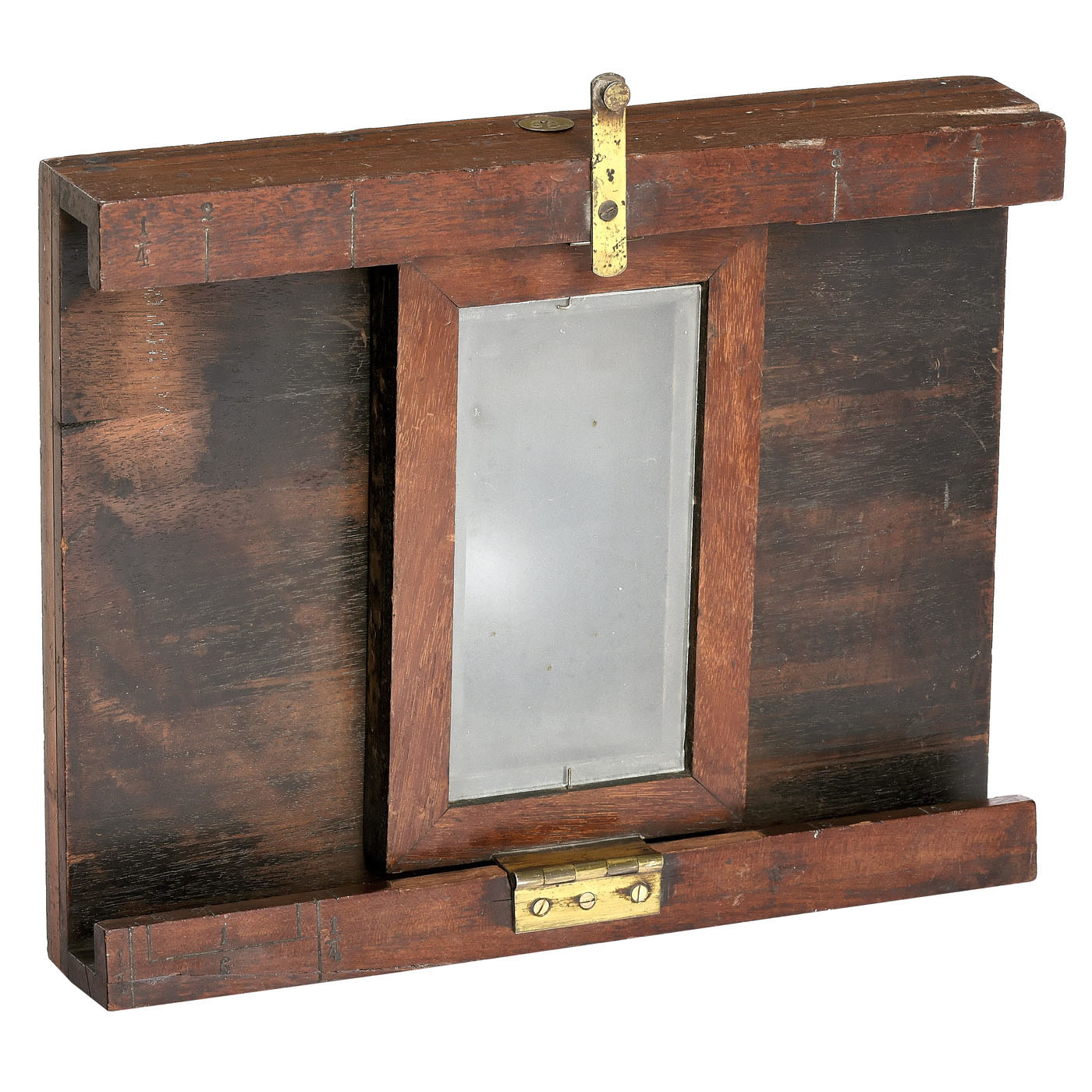

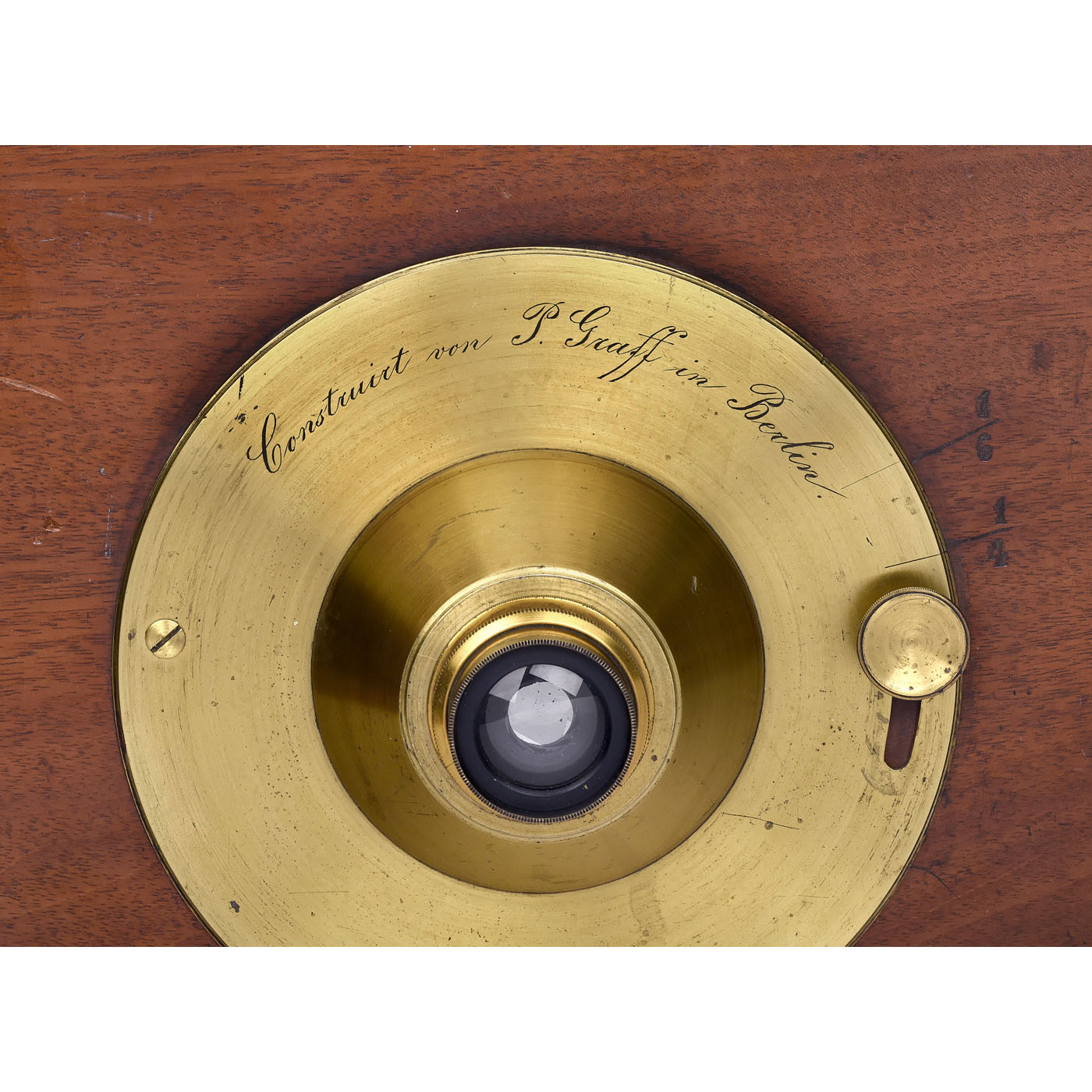

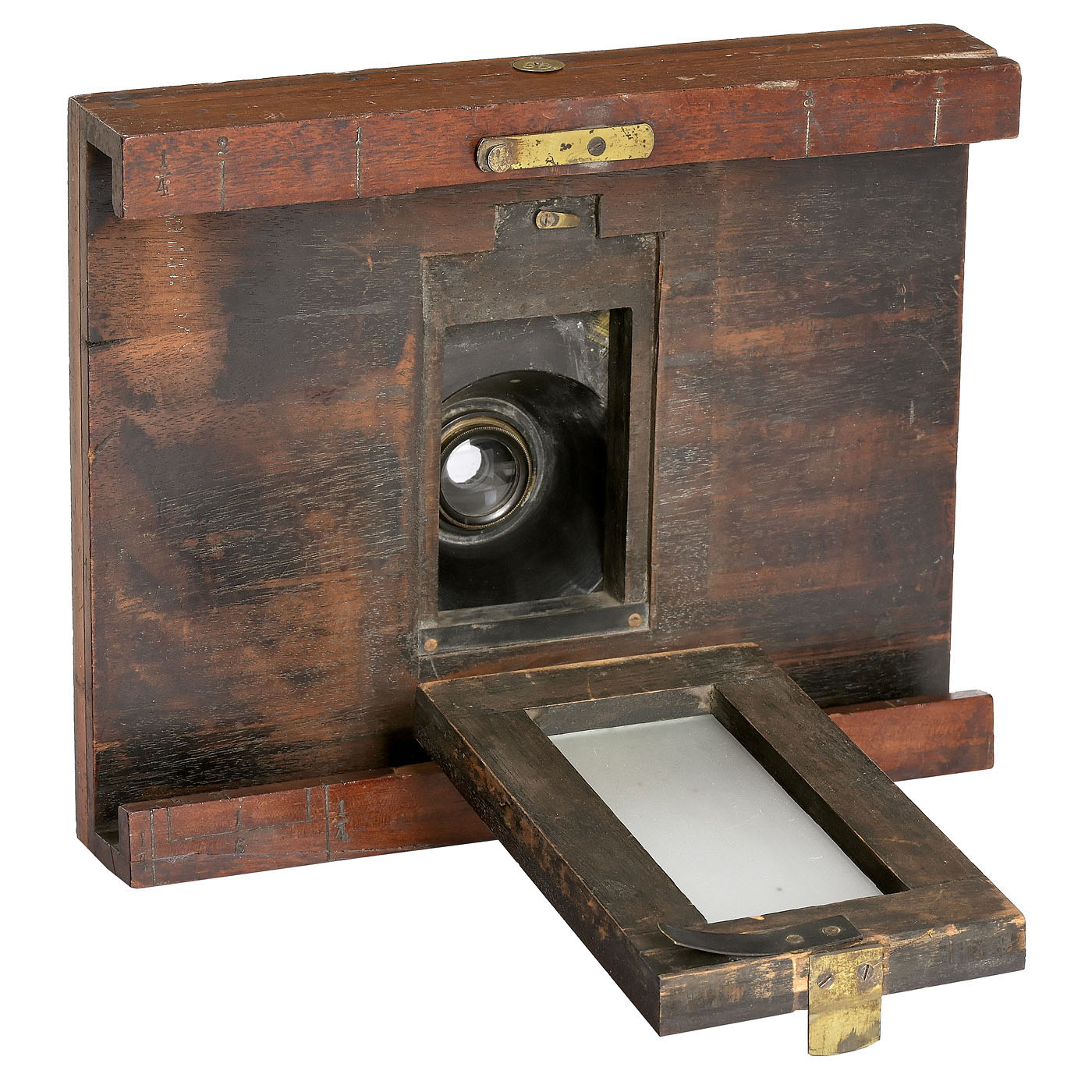

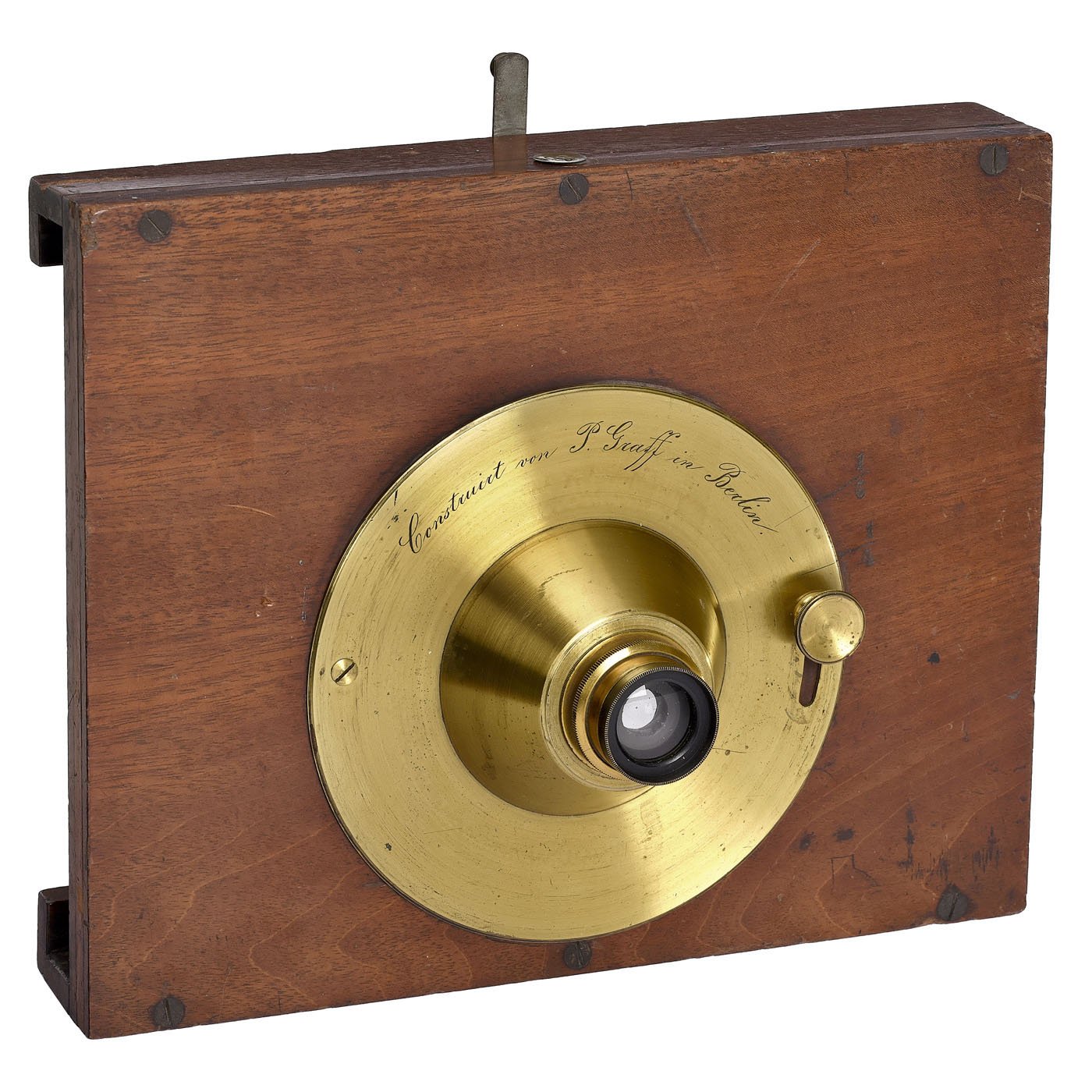

"Constructed by P. Graff in Berlin." It features a rotatable brass disc – mounted on an axis and bearing an engraving – and a conical tube designed for a short focal length, set upon a flat camera front similar to the multi-back attachments found on later studio cameras. The front of the wooden body bears embossed markings: 1/6 and ?. The rear features a hinged focusing screen measuring 67 x 130 mm, though the actual usable image area – by design – measures 55 x 85 mm. Along the top edge of the rear panel, markings are embossed to guide the sliding placement of a 16 x 21 cm studio plate holder: ?, 2, 1, 3, 4. If this camera was indeed built during Graff’s lifetime (1813–1851), he may well have used it in 1848 – working as a daguerreotypist – to create the portraits of the members of the Frankfurt National Assembly; the subtle embossing on the front served as his advertisement as a professional photographer. In this process, the smaller individual portraits were captured sequentially on a single full-sized plate; due to time constraints and the need for efficiency, up to eight exposures would be developed simultaneously. The original lens was later replaced in c. 1870 with an Aplanat lens (approx. 6/60 mm), which produces a sharp image at a distance of 8 meters; the original lens was likely a Petzval-type lens of the same focal length but with a wider aperture, equipped with a rack-and-pinion focusing mechanism, without tripod mount (broken, replaceable). This camera represents a historically significant artifact within the history of Germany.
