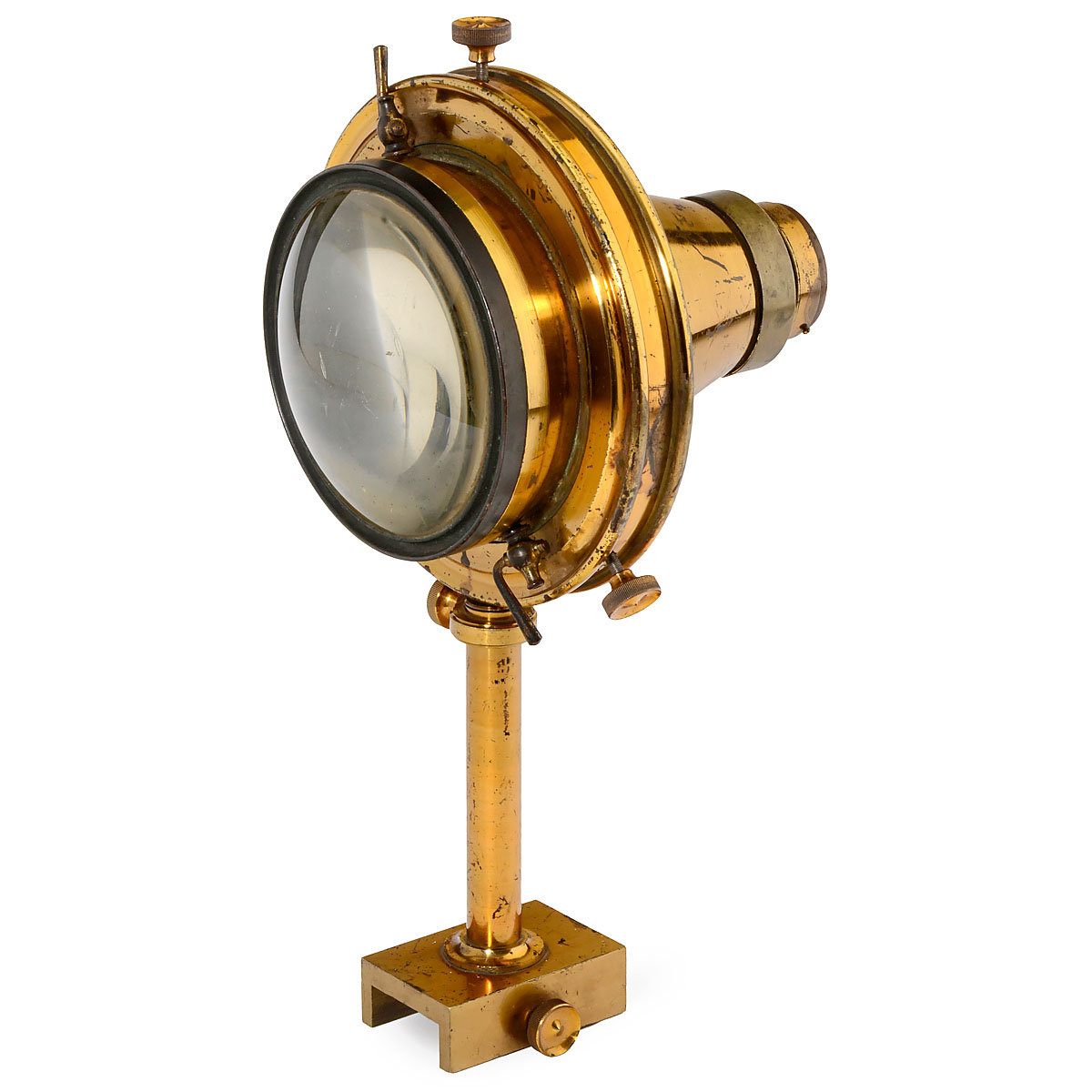

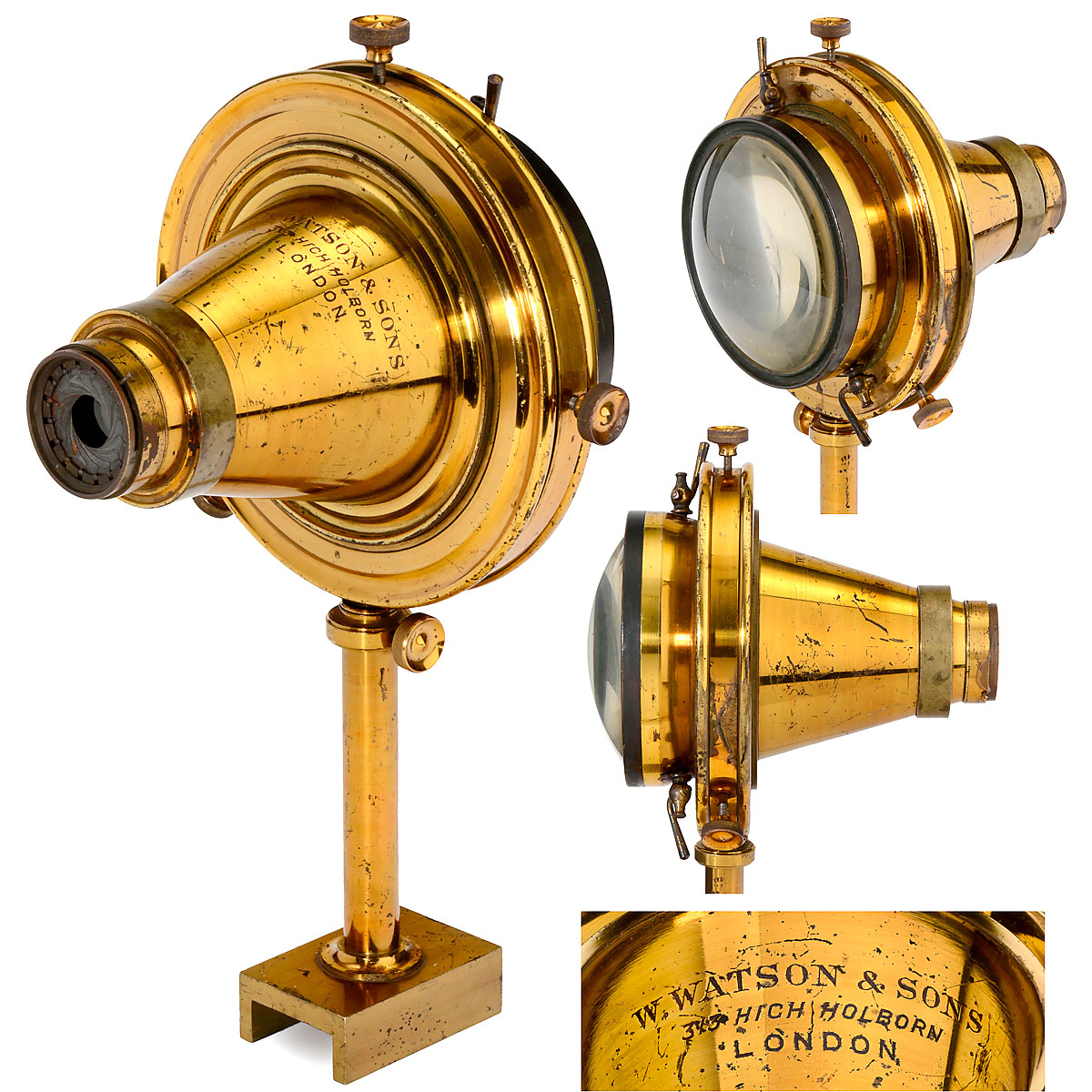

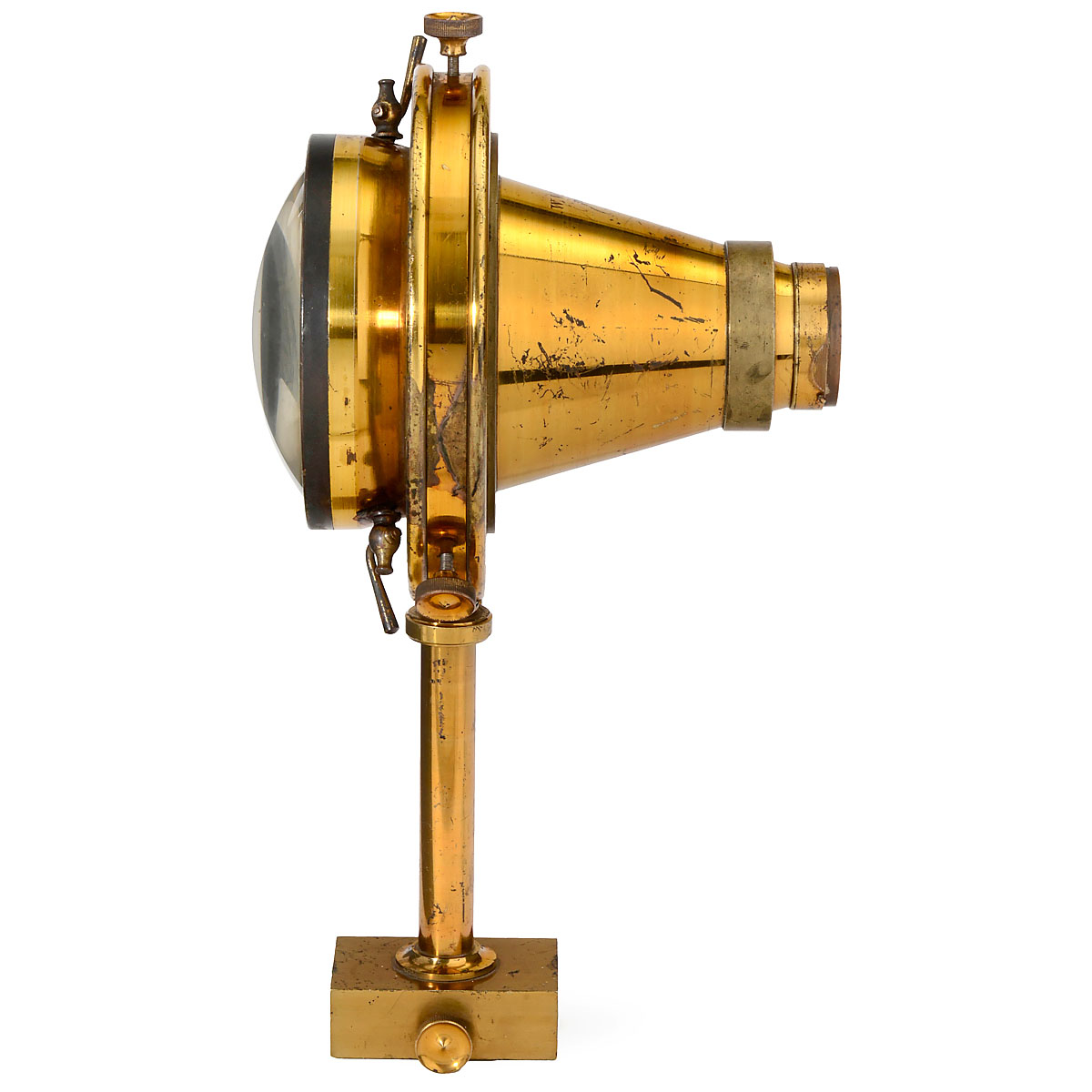

Liquid Lens by Watson & Sons, c. 1880

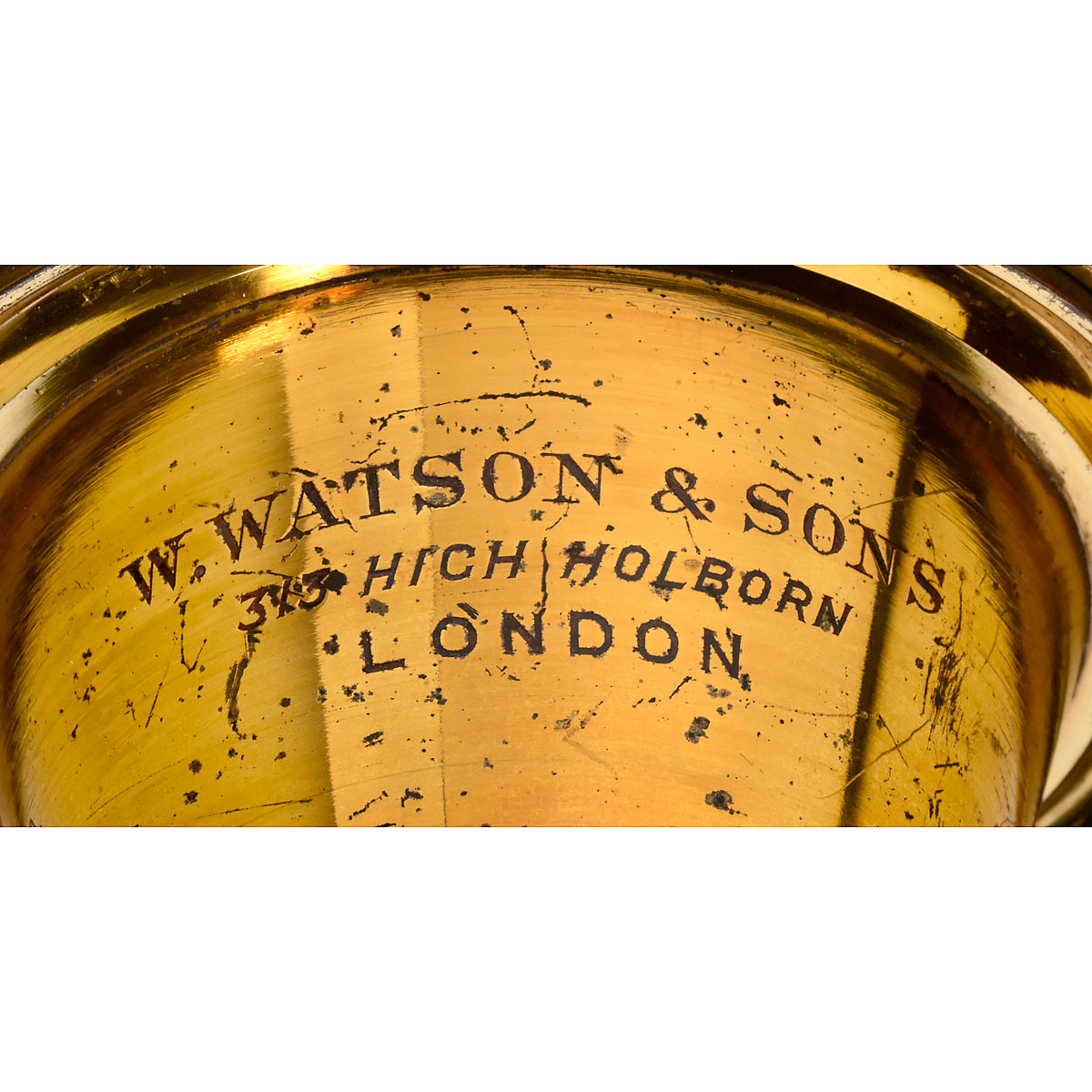

W. Watson & Sons, 313 High Holburn, London. This special lens had to be filled with distilled water. Height (with bench way lens standard in minimum position) approx. 34 cm. Diameter front lens approx. 115 mm, diameter rear lens approx. 35 mm, iris diaphragm behind the rear lens. The most well-known liquid filled lens, the so-called "Liquid Panoramic Lens" by Thomas Sutton (1859) was filled with two absolute symmetric lenses. Earlier (1852) it was Frederick Scott Archer, who constructed the so-called "Liquid Lens", consisting of two meniscus lenses and filled with diluted acid. This lens is also consisting of two lenses, from which the bigger one shows nearly 4 times the diameter of the smaller one.
